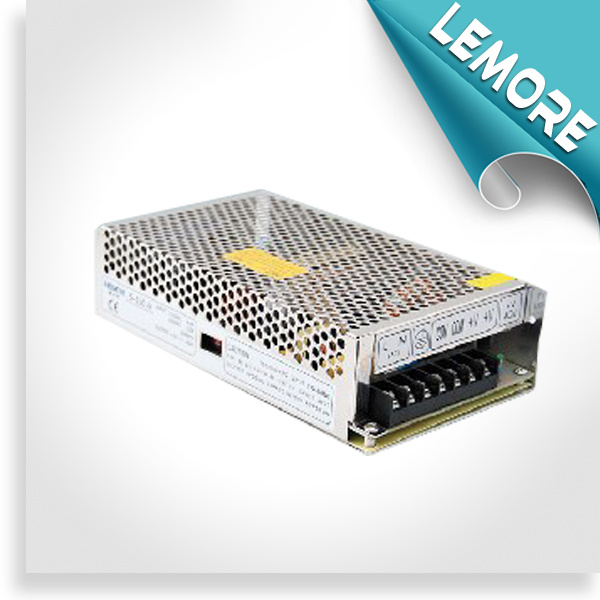

150W Switching Power Supply

Name: 150W Switching Power Supply
Brand: china-manufacturer-directory.com
SKU: 711313425
Availability: InStock
Rating: 4.7 (94 reviews)

Supplier:	Shanghai Lemore Trade Co., Ltd.
Price:	US $ 9.7/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR

Product Specifications

Prod Model:	S-150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	199x110x50mm
Output Type:	Single
Output Power:	101 - 200W
Input Voltage:	Full Range
Voltage Regulating Mode:	Frequency Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	1 Year
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE

Product Description

Feature: Low price and high reliability
105degree C output capacitor
AC input power suitable for the world
High officiency and low operation temperature
Soft-start current can reduce the AC input impact effectivly
With short-circuit and overload protection
Compact size, light weight
100% full-load bun-in test
Install with EMI filter, minimum wave

Model Specification	S-150-5	S-150-7.5	S-150-9	S-150-12	S-150-13.5	S-150-15	S-150-24	S-150-27	S-150-48
DC output voltage	5V	7.5V	9V	12V	13.5V	15V	24V	27V	48V
Output voltage range	±2%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	30A	20A	16.7A	12.5A	11.2A	10A	6.5A	5.6A	3.2A
Output current ranqe	0-30A	0-20A	0-16.7A	0- 12.5A	0- 11.2A	0-10A	0- 6.5A	0- 5.6A	0- 3.2A
Wave and noise	150mVp-p	150mVp-p	120mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	50mVp-p
Inlet stability	±0.5%	±0.5%	±0.3%	±0.3%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
Load stability	±0.5%	+0.5%	±0.3%	±0.3%	±0.3%	±0.3%	±0.3%	±0.2%	±0.2%
DC output power	150W	150W	105.3W	150W	151.2W	150W	156W	151.2W	153.6W
Efficiency	80%	80%	80%	82%	83%	84%	85%	86%	87%
Adjustable range for DC voltage	4.5~5.5V	6~8.3V	8~10.4V	10.6~13.2V	12~15V	13.5~16.5V	21~28V	24~30V	43~53V
AC input voltage range	85~132VAC/176~264VAC selected bv switch 47~63Hz,248~370VDC
Input current	3.2A/115V 1.6A/230V
AC Inrush current	Cold-start current 35A
Leakage current	<0.5mA/240VAC
Overload proctection	105%-150% Tvee:oulsina hiccup shutdown Reset: auto recoverv
Over-voltage protection	115%-135%
High-temperature protection	^^^^
Temperature coefficient	±0.03%/degree C(0~50degree C)
Setup, rise, hold up time	100ms,50ms,20ms
Vibration	10~500Hz, 2G 10min,/1 cycle. Pariod for 60min,Each axes
Withstand voltage	Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvA
Isolation resistance	input and output internah'lnput and enclosure,Output and enclosure:500VDC/100MΩ
Working temperature and humidi	-10degree C~+60degree C,20%~90%RH
Store temperature and humidity	-20degree C~+85degree C,10%~95%RH
Overall dimension	199X110X50mm
Weight	0.8kgS
Safety standards	UL1950,TUVEN6050 Approved
EMC standards	CISPR22(EN55022),IEC1000-4-2,3,4,IEC1000-3-2Verification
