Product Specifications
| Prod Model: |
ZK-1530 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Body: |
Square Tube |
| Guide Rail: |
Linear Square Guide Rail (Hiwin, Taiwan) |
| Transmission: |
Rack for X Y-Axis, Ball Screw for Z-Axis |
| Working Area: |
1500*3000mm |
| Driving Mode: |
Stepper Motor |
| Spindle Power: |
3.0kw Water Cooling |
| Control System: |
PCI Nc-Studio |
| Controlling Mode: |
CNC |
| Feed Mode: |
Manual |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Spindle Underneath |
| Certification: |
SGS |
| Color: |
Optional |
Product Description

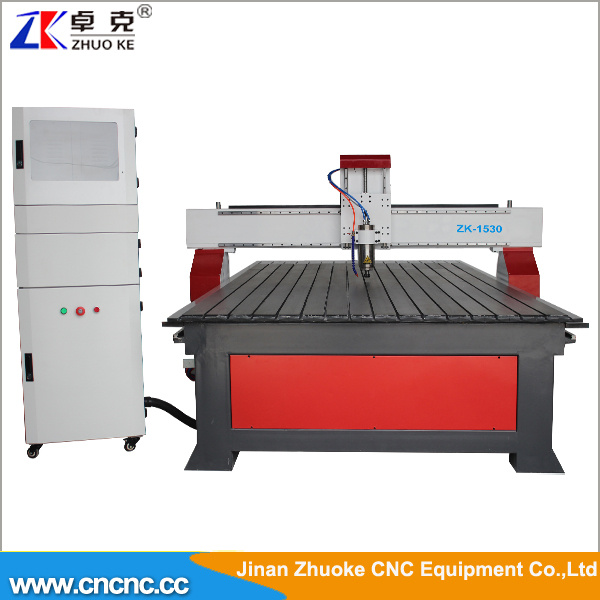

1530 CNC woodworking machinery cnc wood carving machine the cheapest prices
Characters
1.Square steel tube welded for machine bed, by vibration aging treatment, ensuring the
machine not easy to deformation.
2.Double motor drive for Y-axis, selected pairing, ensuring the smooth movement.
3.Using the imported rack and pinion transmission, fast speed, high precision
4.Adopted the imported linear square guide rail. Higher precision and to bear large load.
5.DSP offline control system, when working no need computer, using the USB flash disk
to store files, more convenient and easy to operate.
6.Using the China 3.0kw water cooling spindle, high precision, low noise, high revolving
speed, long life time, and smooth running.
7.Intelligent protecting the working table, preventing the wrong operation for the working
table, intelligent processing cross the border protection, preventing the deign area
surpass the working area causing the machine crash.
8.Breakpoints, power off memory way, ensuring the memory function, can continue
processing if cutters break or next day working.
Application
Suitable for woodworking processing, three-dimensional wave plate, cabinet door, solid wood door, artware door, paint-free door, screen, art ware window, panel, table, and other furniture products auxiliary
processing.
Technical parameters
| Items | Description | Optional |
| Effective working area | 1500(X)mm*3000(Y)mm
*200(Z)mm |
|
Max. thickness of
the materials | ≤200mm(the distance
between Z-axis
and the bottom of the
working station) | Higher Z-axis |
| Working table | T slot |
|
| Materials | Square steel tube machine bed |
|
| Guide rail | Linear square guide rail (Hiwin,
Taiwan) |
|
| Transmission | Rack for X Y-axis, ball screw for
Z-axis |
|
| Driving mode | Stepper motor | Servo motor |
| Spindle motor | 3.0kw water cooling | Higher or air cooling |
| Spindle speed | 0-24000rpm/min |
|
| Empty traveling speed | 0-60000mm/min |
|
| Engraving speed | 0-25000mm/min |
|
| Voltage | AC 380V 50/60Hz | Or according to your
need |
| Resetting accuracy | 0.05mm |
|
| Control system | DSP offline | NcStudio or MACH3 |
| Carving Instructions | G code *Uoo *mmg *plt
HPGL |
|
| Software environment | Windows 2000 / XP/7 |
|
| Packing size | 3700*2250*1800mm |
|
| Gross weight | 1700kg |
|
Jinan Zhuoke CNC Equipment Co., Ltd is a modern export-oriented enter-prise of the processional R&D, production, and sales of the CNC equipments, located in Jinan City, Shandong Province, China. We have a technical team which has the actual combat of mechanical design, software R&D, and CNC application. Our brand "Zhuoke" has the certain popularity at the home and aboard.
Our company mainly focuses on manufacturing CNC Routers and Laser Engraving Cutting machine, with high quality and top sales and after sales-service, we have won the customs trust and support from all over the world. Also, our machine can be specially customized according to your requirement.
Our CNC machines are not only sold to the domestic, but also the Southeast Asia, Americas, Oceania, Russia, Africa.
"High quality product and hard working make the brilliant future" We have the continuous technological innovation and the relentless pursuit of quality pragmatic spirit, always put the quality first, and always striving to provide our customers with high quality, cost effective mechatronic products. Our Zhuoke products will always be associated with your caree-----back gammon!
