(1539) China Good Reputation Fr4 PCB Circuit Board

Product Specifications

Prod Model:	1539
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Thickness:	0.3mm-3.2mm
Copper Thickness:	0.5-6oz
Min. Hole Size:	0.1mm
Min. Line Width:	0.075mm
Min. Line Spacing:	0.075mm
Profiling Punching:	Routing, V-Cut, Beveling
Model Number:	PCB-39
E-Test:	Flying Probe Test
Solder Mask Color:	White/Green/Blsck/Red/Yellow
Structure:	Multilayer Rigid PCB
Application:	Home Appliance, Game, Metering, Medical
Base Material:	Fr4/Aluminum
Processing Technology:	HASL/HASL Lead Free/Immersion Gold
Insulation Materials:	Oil
Production Process:	Plating Copper
Material:	Fr4
Brand:	Huagao

Product Description

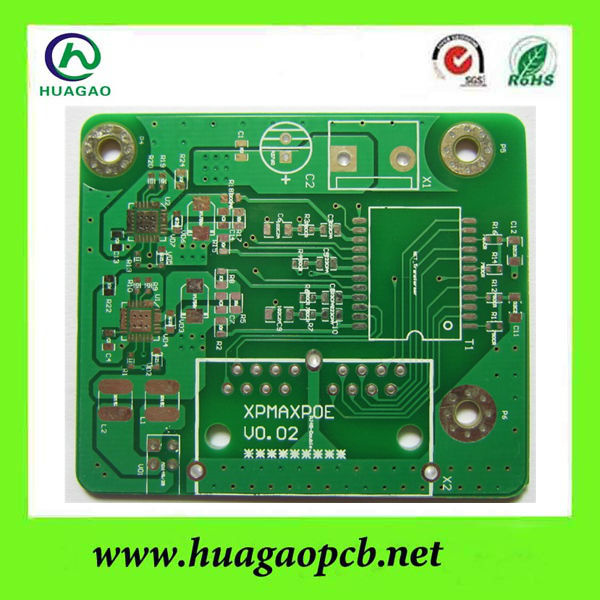

China Good reputation FR4 PCB circuit board


Huagao Shortcut Electric Circuit board Limited is  professional  supplier  for  high  quality  PCB, since 2004 at competitive price, located in Shenzhen, China.Huagao PCB group has Six production bases and a sales company. We attended more than three electronic exhibitions every year all over the world. Main markets are North America, WesternEurope and Southeast Asia. We areAlibaba.com Gold supplier.


We supply

(1) FR4 PCB: 1-25 layers PCB prototypes, 1-16 layers mass production.

(2) Aluminum PCB:  1-4 Layers mass production.

(3) PCB Stencil.

(4) Assemble led Chips on the pcb etc.


Our Production Capability for PCB

Layer	1 to 28 layers
Material type	FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
Board thickness	0.21mm to 7.0mm
Copper thickness	0.5 OZ to 7.0 OZ
Copper thickness in hole	>25.0 um (>1mil)
Size	- Max. Board Size: 23 × 25 (600mm×1000mm)
	- Min. Drilled Hole Size: 3mil (0.075mm)
	- Min. Line Width: 3mil (0.075mm)
	- Min. Line Spacing: 3mil (0.075mm)
Surface finishing	HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
Solder Mask Color	Green/Yellow/Black/White/Red/Blue
Tolerance	- Shape tolerance: ±0.13
	- Hole tolerance: PTH: ±0.076 NPTH: ±0.05
Packing	- Inner packing: Vacuum packing / Plastic bag
	- Outer packing: Standard carton packing
Certificate	UL, ISO 9001, ISO 14001
Special requirements	Buried and blind vias+controlled impedance +BGA
Profiling	Punching, Routing, V-CUT, Beveling
Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased products.

Delivery and payment

1.By DHL,TNT,UPS,FedEx etc.

2.By EMS(usually for Russia Clints),price is high.

3.By sea for mass quantity according to customer's requirement.

4.Payment prefer--Paypal,T/T,Wester Union.

Sample Delivery Time(<2m2)

Layer No.	Quick Turn	Standard
Single Layer, Double Layer	12 hrs,24 hrs	3-4 Days
4 layers	48 hrs	4-6 Days
6 layers	72 hrs	5-7 Days
8 layers	4 Days	6-8 Days
10 layers	5 Days	7-9 Days
12 layers	6 Days	8-11 Days
14 layers	7 Days	10-12 Days
>= 16 layers	Depend on Actual Layer No.

Middle & Mass Batch Delivery Time(>2m2)

Layer No.	Standard
Single Layer, Double Layer	5-7 Days
4 layers	6-8 Days
6 layers	7-9 Days
8 layers	10-13 Days
10 layers	12-15 Days
12 layers	14-17 Days
14 layers	15-18 Days
>= 16 layers	Depend on Actual Layer No.

Welcome to contact us!!

Tel:       (+86) 18820480725
