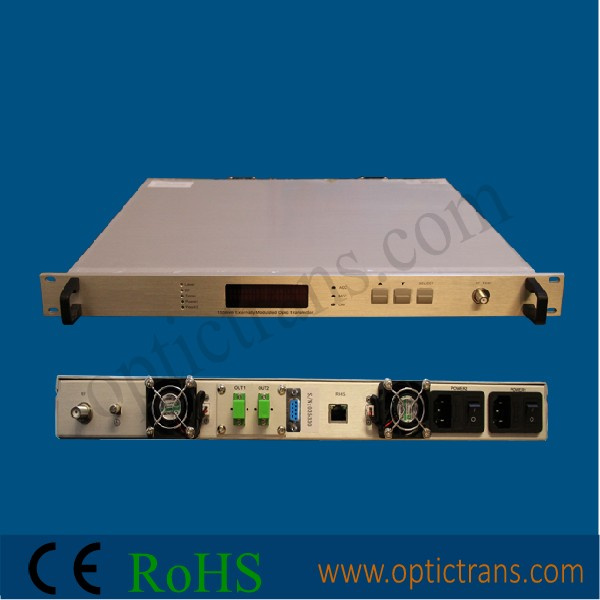

1550nm External Modulation Optical Transmitter

Product Specifications

Prod Model:	OPT-1550E-S
Markets:	North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe
Key Component:	External Modulator
Wavelength:	1550±10nm
Frequency Range:	47~750(862)MHz
Laser Type:	Dfb Laser
Output Power:	1X5,1X7,1X9,2X3,2X5,2X6,2X7 dBm
Work Voltage:	90~265VAC
Snmp Interface:	RJ45
Size:	19" (W)11"(D)1.75"(H)
Type:	Fiber Transceiver

Product Description

Product overview
OPT-1550E-S Series External modulation optical transmitter is a Standard type of high-performance 1550nm external modulation optical transmitter. It is especially designed for small or middle-size TV stations, CNR ≥51.5dB when tested in 59CH PAL/D, SBS set at 18dBm, point to point 50km fiber. Mounted in standard 1U, 19" chassis, the output signal spectral lines is narrow, more advantages in the long-distance transmission. Key components adopt DFB low-noise, narrow line-width, continuous-wave lasers with thermoelectric cooling device made in JDSU, Fujitsu, MITSUBISHI and AVANEX CATV high linearity external modulator. Because of the international brand adoption of key components and our company system optimization control technology, SMNP network control technology, the machine's technical performance indicators fully measure up the standard of similar imported equipment , It can provide high-quality images, digital or compressed digital signal long-distance transmission for cable television and telephone communications.

Features
(1) High quality: original system optimization control technology and RF pre-distortion technology ensure that the system can acquire the maximum CTB, CSO, and SBS targets in the case of excellent performance CNR.

(2) Flexibility: In ensuring the high performance system CSO, the phase modulation technology of external modulator maximize the optical power into the fiber in order to obtain long-distance transmission, and the field adjustable SBS threshold 13,16,18, may apply a different network transmission.

(3) Reliability: The 19 "1U standard rack, built-in high-performance dual switching power supply, it can work in the backup at 85~265Vac City Network Voltage, MS-level automatic switching; chassis cooling automatic temperature control.

(4) Intuitive: The laser is the most expensive machine components, machine equipped with microprocessor monitors the working state of the laser, and the panel LCD window displays the operating parameters.

(5) Network type: Select all-piece status monitoring transponder guarantee to meet the national standard and be compatible with the SCTE HMS standard, it enables network management monitoring capabilities.

Technical specification



Item	Units	Parameter	Note
Laser type		DFB laser
Wavelength	nm	1550±10	Specify before ordering
Optical Modulation		External modulation
Optical output power	dBm	2x5	1x5,1x7,1x9,2x3,2x5,2x6,2x7
SBS threshold	dBm	16.5	Optional 13, 16, 18
Optical Connector		SC/APC or FC/APC	Specify before ordering
Frequency range	MHz	47~750(862)	1GHz optional
CNR	dB	≥51.5	See test condition in note
Flatness	dB	±0.75
RF input level	dBuV	78~88	AGC automatic control
C/CTB	dB	≥65.0
C/CSO	dB	≥65.0
RF input impedance	Ω	75
RF Input Return Loss	dB	≥16(47~550)MHz
		≥14(550~750(862)MHz
Voltage	V	90~265VAC	Optional -48VDC
Power consumption	W	≤50	Single-supply operation
Working Temperature	ºC	0~50	Automatic temperature control
Storage temperature	ºC	-20~85
Relative humidity	%	20%~85%
Size	″	19″×11″×1.75″	(W)x(D)x(H)
Network management interface		RJ45	Supporting the browser and SNMP
Communication interface		RS232	Optional
Weight	Kg	5


Note
(1) In the condition of stipulated link-loss, configured in 59 PAL-D analog television channel signals within 550MHz frequency, in the range of 550MHz~750 (862) MHz frequency transmit digital modulation signals, digital modulation signal level (in 8MHz bandwidth) is 10dB lower than the analog signal carrier level, when the optical input power is 0dBm, you can measure the carrier combination triple beat ratio (C/CTB), carrier combination of second-order beat ratio (C/CSO) and the carrier to noise ratio (C/N)
(2) Fiber: 50KM+EDFA

Product series


Model	1550nm External Modulation Optical Transmitter (Standard type) SBS=13/16/18,CNR≥51.5dB
OPT-1550E-S-1X5	Single optic port, optical power≥5dBm
OPT-1550E-S-1X7	Single optic port, optical power≥7dBm
OPT-1550E-S-1X9	Single optic port, optical power≥9dBm
OPT-1550E-S-2X3	Dual optic port, each port optical power≥3dBm
OPT-1550E-S-2X5	Dual optic port, each port optical power≥5dBm
OPT-1550E-S-2X6	Dual optic port, each port optical power≥6dBm
OPT-1550E-S-2X7	Dual optic port, each port optical power≥7dBm
