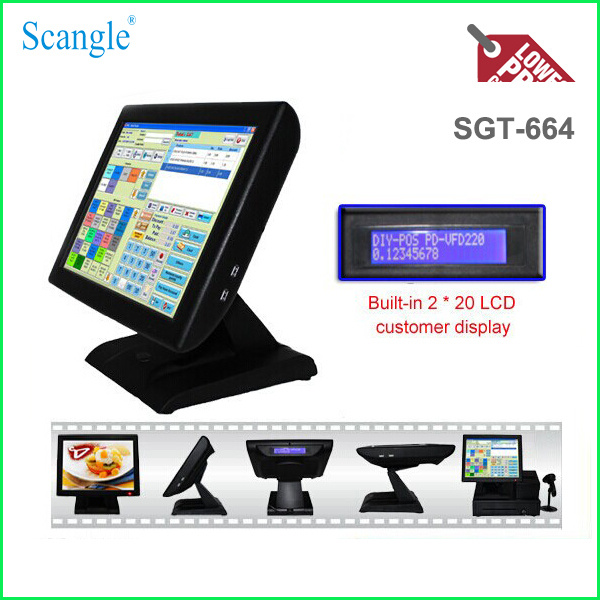

Scangle hot seller SGT-664 " all in one touch screen POS system :
Main descriptions :
Model : SGT-664 15" all in one touch POS
with intel Celeron 1037U dual core 1.8Ghz,
RAM: 2 GB
hard disk : 500GB HHD or 64GB SSD
Touch : 5 wire resistive touh pannel
with20*2 LCD customer display,
black / red / white color available
POS thermal receipt printer (3inch /2inch ) available (it is optional )
cash drawer available (it is optional )
Laser bar code scanner available (it is optional )
| Features : |
| 1. Piano gloss painted POS system |
| 2. Replaceable front bezel |
| 3. concealed cable routing |
| 4. excellent heat dissipation |
Scangle POS is an epocal POS system that fulfills all your visual and functional demands. This much anticipated all-in-one POS system features sleek and stylish exterior with piano gloss finish, giving your counter a refreshing and elegant look.
Detail specifications :
| SGT-664 15" touch screen all in one POS SYSTEM | |
| Model | SGT-664-A | SGT-664-B | SGT-664-C |
| CPU | Intel Celeron 1037U,Dual Core 1.8ghz | Intel AtomD2550 Dual Core 1.85ghz | intel i3 |
| intel i5 |
| intel i7 |
| System Memory | 2GB DDR3 1066mhz
up to 8GB | 2GB DDR3 1066mhz,
up to 8GB | 2GB DDR3 1066mhz
up to 8GB |
| OS Support | POS Ready 2009, POS Ready 7, XP Pro, Vista, Linux, Windows 7, windows 8 |
| HDD Storage | 1x 2.5" SATA (500GB--Seagate) or (SSD 64GB--Adata) |
| Compact Flash | 1 x Slot Type I II, Non-removable |
| Display | TFT LCD, 250 nits, 1024 x 768 Pixel |
| Touch | 5 Wire Resistive Type /Capacitive touch |
| Tilt Anle | 15°~80° |
| Power Input | 12VDC ,5A (Externel Adaptor: 100~240 VAC, 50/60HZ) |
| Weight | 6.5 Kg |
| Dimension | (W x D x H: mm) 385 x 360 x 245 |
| color available | black , white , red ..... |
| Compliance | FCC / CE / WEEE / RoHS |
| Interface | 4 x COM |
| 1 x DB25 Parallel Port |
| 6 x USB 2.0 (External), 2 x USB 2.0 (Internal, 1 reserved for touch screen) |
| 1 x PS/2 Mouse, 1 x PS/2 Keyboard |
| 1 x DB-15, VGA Port |
| 1 x 12VDC In, 1 x 12VDC Out |
| 1 x RJ-45 Giga LAN Support / 2 x RJ-45 Giga LAN Support |
| 1 x HDMI |
| 1 x Audio Line Out, 1 x MIC In, |
