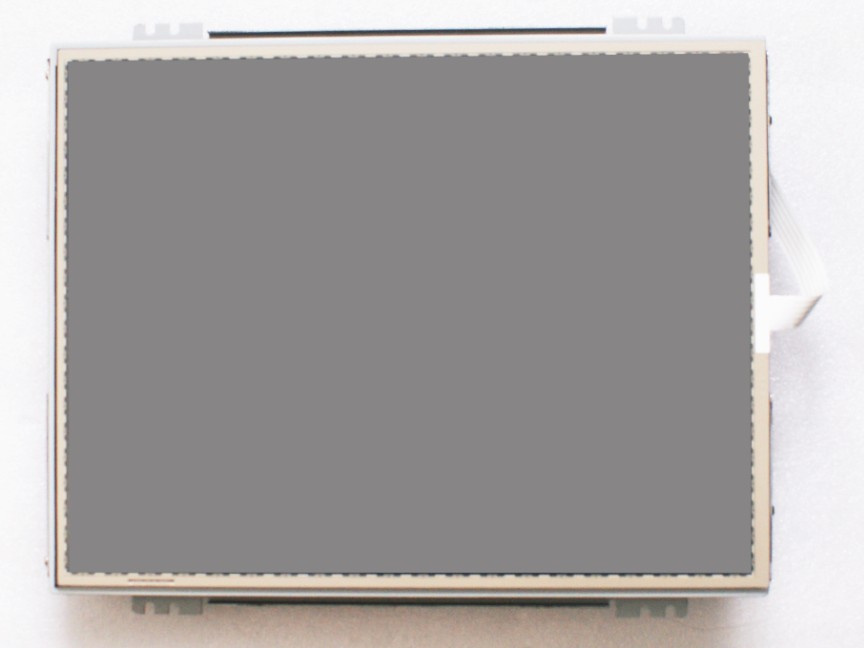

Open Frame Touch Screen Monitors (LCD)
Touch screen: Resistive, SAW, Capacitive etc
LCD: Sumsung
|
CPU(GHz) |
Atom D2550 1.86G |
|
Chipset |
Intel NM10 Express Chipset |
|
Motherboard |
Industrial stable MP-D2550 |
|
System Memory (DDRIII) |
2G (can update 4G) |
|
OS Support |
Win XP, Win Vista, Win 7, WEPOS, Linux(test version) |
|
Display |
|
|
TFT LCD |
15" |
|
Brightness |
250 cd/ m2 |
|
Contrast Ratio |
600:1 |
|
Color Resolution |
16.7M |
|
Resolution |
1024x768 |
|
Touch Screen |
mapletouch 5wire resistive (USB/RS232 Optional) |
|
Tiliting Angle(degree) |
15-90 |
|
Storage Device |
|
|
Hard disk(GB) |
2.5" SSD 32G(optional 320G,SSD 16G) |
|
I/O Ports |
|
|
Serial(RS232) |
2 x RS-232 (Maximum extension 6*RS232) |
|
USB |
4 USB-2.0 |
|
Network Interface(LAN) |
1*Realtek RTL8111DL 100/1000Mbps ( optional two LAN interface) |
|
Audio |
Realtek ALC892 Audio |
|
|
1*DB-15 VGA, 1*DB25-LPT,1*PS2 |
|
Expansion |
1*PCIe*1 ,1*Mini PCI-E Expansion slots |
|
Work Environment |
|
|
Operating temperature/humidity |
-10~60 /20-85% |
|
Storage Temperature |
-30~80 |
|
Others |
|
|
Power input/output |
100-240VAC~50-60HZ 1.5A/ 12V 5A MAX (adaptor) |
|
housing material |
Aluminium alloy |
|
Installation mode |
Desktop,wall mounted |
|
Color |
Black (Optional White) |
|
Certifications |
CE, FCC, CCC, RoHS,CB |
|
Weight (Kg)/Dimension |
8kg/368*283*55mm |
Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
