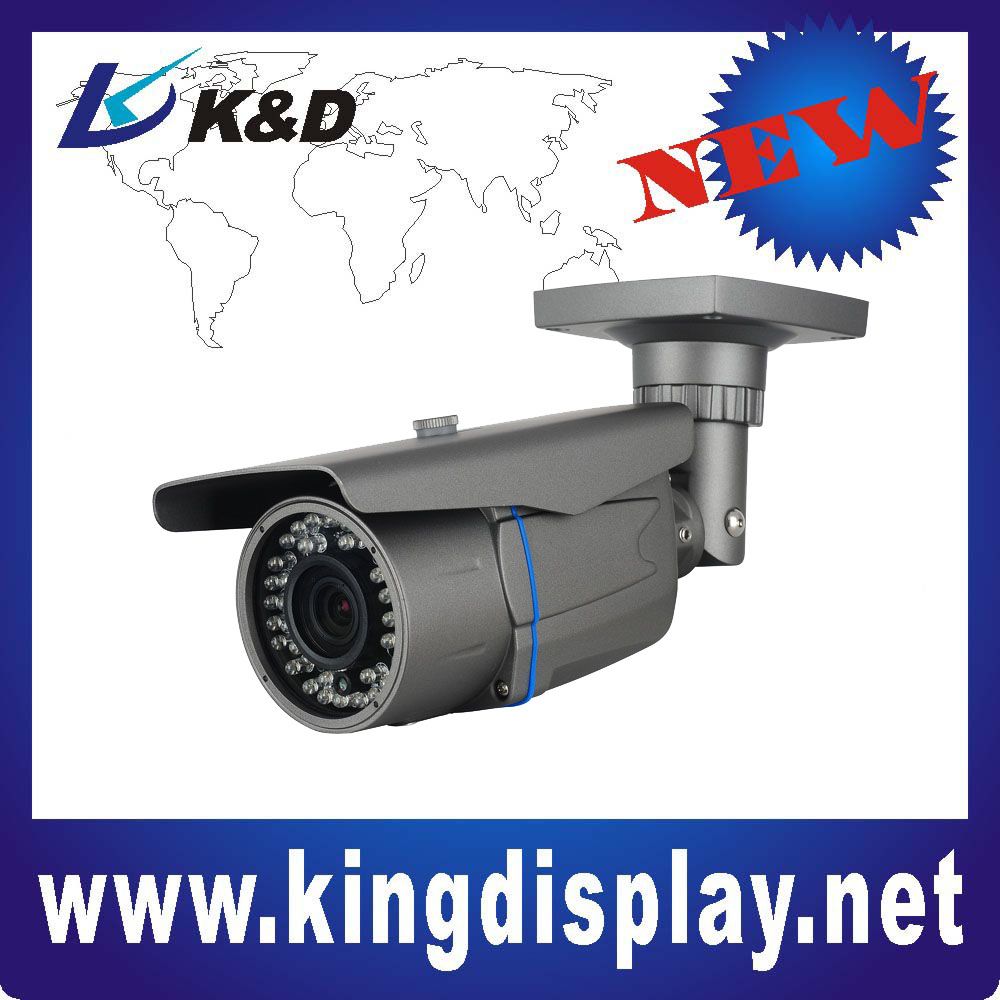

15m IR Waterproof Camera With Integrated Bracket (KD-SW20RT42)

Name: 15m IR Waterproof Camera With Integrated Bracket (KD-SW20RT42)
Brand: china-manufacturer-directory.com
SKU: 689978585
Availability: InStock
Rating: 4.5 (141 reviews)

Supplier:	Shenzhen Guowei Security Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	KD-SW20RT42
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resolution:	600tvl
Kind:	Autofocus Lens
Technology:	Infrared
Special Features:	Waterproof / Weatherproof
Style:	Box Camera
Type:	IP Camera
Sensor:	CMOS

Product Description

1. 1/3" Sony Super HAD II CCD
2. Max horizontal resolution reach 600TVL
3. Waterproof grade IP66
4. Fixed lens 3.6/6mm optional
5. 24PCS Φ 5 IR LED, IR Distance 10-20m
6. With integrated bracket

Model	KD-SW20RT42	KD-SW20RT48	KD-SW20RT54	KD-SW20RT60
Image Sensor	1/3" SONY Super HAD II CCD
Effective Pixel	PAL: 500(H)× 582(V)		PAL: 752(H)x582(V)
	NTSC: 512(H)× 494(V)		NTSC: 768(H)x494(V)
Sync System	Internal
Horizontal Resolution	420TVL	480TVL	540TVL	600TVL
Minimum Illumination	0.5Lux/0lux(IR On)	0.3Lux/0lux(IR On)	0.2Lux/0lux(IR On)	0.1Lux/0lux(IR On)
S/N Ratio	≥ 48dB		≥ 52dB
Electronic Shutter	1/50(60)~1/100, 000sec			1/50(60)~1/120, 000sec
Gamma Correction	Auto			Auto/manual
White Balance	Auto			Atw/Awb/Manual
AGC	Auto			Off/Low/Middle/high
Back Light Compensation	Auto			On/Off
Mirror	N/A			Yes
Motion Detect	N/A			On/Off (4 area)
Camera Title	N/A			Yes
D-WDR	N/A			On/Off
DNR	N/A			Low/Middle/High/Off
Digital Noise Reduction	N/A			Off/Low/Middle/high
Privacy Zone	N/A			On/Off (4 area)
Day/Night	Auto			On/Off
OSD	N/A			Control on the cable
Gamma modification	0.45
Lens	f=3.6/6mm /M12(optional)
IR Distance	10~20m/Φ 5x24pcs led
Video Output	1.0Vp-p/75Ω
Power	DC12V, 100mA (300mA IR on)
Operating Temperature	-10° C ~ 50° C
Dimension	130mm(L)× 65mm(W)× 60mm(H)

Shenzhen Guowei Security Co., Ltd. is specialized in research and innovation of surveillance video technology. Providing security surveillance equipments, solutions and services worldwide.

Established in 2001, Guowei mainly researched and manufactured K&D series analog cameras at earlier stage. The company has long term technical cooperation with some famous enterprises, and with years research and development, launched KDT series network high definition cameras and NVR with independent property rights in 2012. Guowei is a member of ONVIF organization with products completely compatible with ONVIF standard protocol. And the company products has perfect matching with internal mainstream storage device manufacturers (Dahua NVR, Hikvision NVR) and external platform (eg. Milestone, Axxon Digifort, NUU0, Luxriot and Geovision).

To guarantee stable performance, Guowei has strict control on design, raw material and processing of its products. The company adopts remote online technical service. And all the products have been successfully certificated by CE, FCC and RoHS.

Guowei takes "value creation, win-win cooperation" as management principle and "Specialty, Speed, Sincerity" as service philosophy. Guowei contributes to the peaceful world.

Welcome new and old customers to visit the company.
