15pin VGA to VGA Cable for Monitor Computer

Product Specifications

Prod Model:	NM-VGA-492
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connnector:	Nickel
Length:	Optional
Material:	Copper
Interface Type:	VGA
Pin:	15p

Product Description

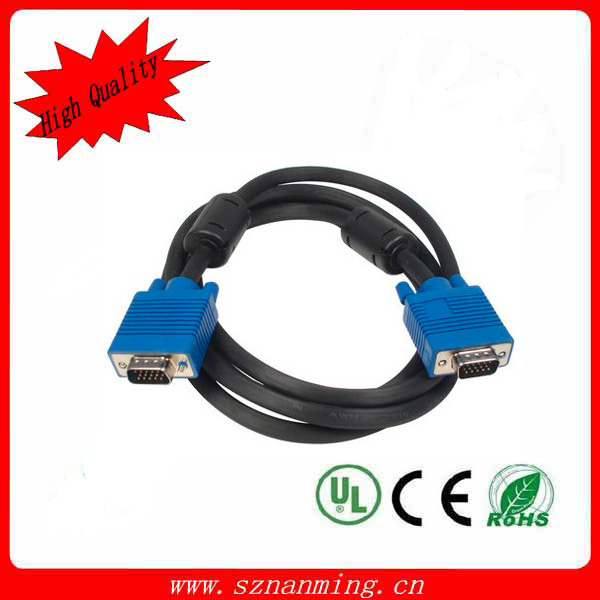

15PIN VGA to VGA Cable for Monitor Computer

Specifications:
High Quality VGA Cable
1. Gold or Nickel plated
2. DC300V 5M ohm/10ms
3.3+4+64B VGA cable
4.3+6+96B VGA cable


1. Descriptions:

1). VGA TO VGA cable;

2). HD 15P to HD 15p;

3). Connector: Gold plated or Nickel plated ( optional );

4). 30/28/26AWG ( optional );

5). Length: 1.5m to 15m respect customer request;

6). Color: Blue, white, black( optional );

7). Two ferrites.


2. Features

1). Totally match with the requirements of VGA;

2). Meet all the requirements of reliability test and electrical test;

3). Support 1440P;

4). Can be used in most kind s of, computer, LCD and projector.


3. More information:

1). VGA cable( Computer ), A type 15pin male -A type 15pin female white solder G/F. Cable: UL2725 28AWG VGA Cables;

2). VGA video cable is used to connect a VGA or SVGA card or monitor to each other or to a data switch;

3). Both ends are a high-density 3-row male 15-pin D-sub connector;

4). Cable is made of 75ohms mini coax video wire, using individually shielded 28-gauge coaxial wire;

5). This low signal loss cable allows lengths of up to 200 feet in most cases with good signal strength;

6). This male VGA to male VGA cable is designed for connecting video card outputs to monitors directly;

7). Most modern flat panel displays require this type of cable;

8). For monitors and displays that have built-in cables, you will need to use a male-to-female VGA extension cable;

9). If you are running video through a conduit or drywall, you may want to use a non-terminated VGA cable with a low profile connector splice.

4. Packaging:

1). Poly bag with sticker;

2). Customized Gift box;

3). Blister, bubble or slide blister available, 20pcs/box, 2 box in a carton.
