Product Specifications
| Prod Model: |
190F/190FD(15PS) |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Enter Attribute Here (e.g.: Size): |
Enter Value Here (e.g.: 12 Inches) |
| Fuel: |
Gasoline Engine |
Product Description

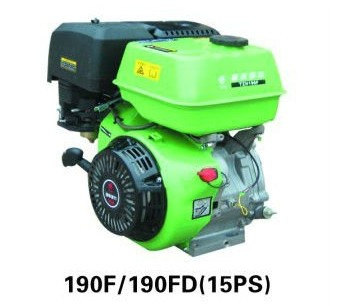

Model: 190F/190FD(15PS)
Engine type: 4-stroke, 25° Single-cylinder, air-cooled
Bore*stroke: 90*66mm
Displacement: 420ml
Compression ratio: 8.2: 1
Max power output: 10.5kw/3, 600rpm
Rated power output: 8.5kw/3, 600rpm
Max torque: 25N. M/2500rpm
Ignition system: Non-contract transistorized ignition
Start model: Recoil/electric
Air cleaner: Semi-dry type
Fuel tank capacity: 6.5L
Fuel consumption: ≤ 374G/kWh
Engine oil capacity: 1.1L
Packing dimension: 485*455*515
Net weight: 32/34kg
Gross weight: 34/36kg
20GP/40GP/40HQ: 240sets/480/600
Chongqing Tianzhong Science & Technology Group Co., Ltd. Was established in 2001. The company have chongqing Jinben import & export trade company and chongqing Tianji group.
Our company has rapidly developed into a private owned group company that specializes in the R&D, manufacture, sale and export of motorcycle engines, fuel assisted vehicles, ATVs, general-purpose gasoline engines, crankcases, cylinder blocks and engine parts. The products of Tianzhong have been sold to Southeast Asia, Europe and America. Tianzhong has won a good reputation due to excellent quality. We have GOST certificate, EMARK certificate and CE.
The yearly production capability of Tianzhong Sciences & Technology Development Co., Ltd. Includes 800 thousand sets of motorcycle engines, one million sets of crankcases, and 1.2 million units of cylinder blocks. Our company covers more than 200 acres, including 50 thousand square meters of standard factory area. There are 1520 employees now, including more than 60 senior level technical personnel and 180 middle level technical personnel. With powerful technology and advanced production equipment, strict inspection methods and improved quality management system and high level workforce, our company can guarantee to supply products with excellent performance such as endurance and stability.
The products of our company have won the title of "Chinese famous products". We also passed ISO9001: 2000quality management system certification and CCC certification.
"Quality businesses, scientific innovation, keep pursuing, consumer first" is the original development power of our company. "Credit fundamentality and quality first" is our business idea. "Treat people with sincerity, Good service" is our tenet. Chongqing Tianzhong Sciences & Technology would like to cooperate with domestic and overseas clients to create a resplendent future together.
