15W Open Frame Power Supply

Product Specifications

Prod Model:	OFS-65
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Voltage:	12V
Output Frequency:	50Hz
Output Current:	1.3A
Efficiency:	High
Dimension:	101.6*50.8*29mm (L*W*H)
Output Type:	Multiple
Output Power:	101 - 200W
Input Voltage:	Full Range
Voltage Regulating Mode:	Frequency Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Level 1 Power Distribution Equipment
Certification:	CCC

Product Description

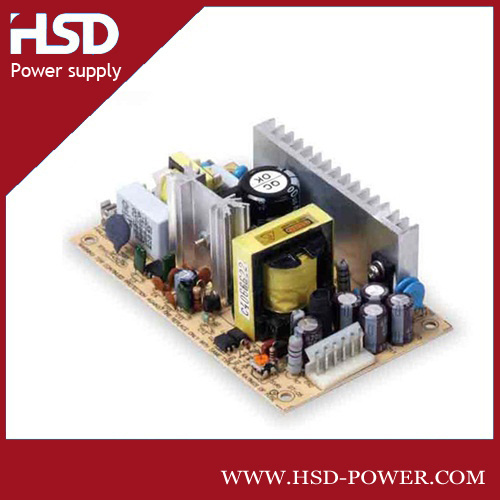

15W open frame power supply
Specification:
Input Voltage: 90VAC-240VAC
Input Frequency Range: 47-63Hz
Output voltage: ± 5V, ± 12V, ± 24V
Output current: 0.3A-20A
Protections: Short circuit/ Over load/Over voltage/ Over temperature
MTBF: 50000 Hours
Operationg Temperature: -20C~+45C
Storage Temperature: -40C~+85C
Safey& EMI: UL60950, EN60950, EN55022, EN61000
