Product Specifications
| Prod Model: |

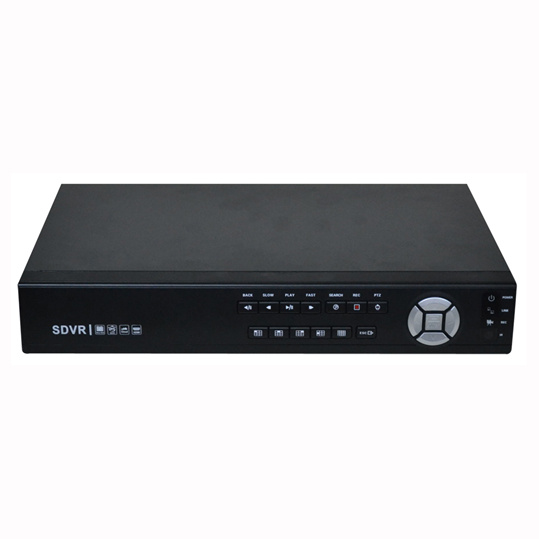

HVR-9016G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Video Mode: |
DVR, Nr or HVR |
| DVR Mode: |
16CH*960h/16CH*D1 |
| NVR Mode: |
24*D1 / 20*960h / 4*1080P / 1*1080P+8*720p |
| HVR Mode: |
8*D1+16*D1/ 8*D1+8*720p/ 8*D1+(2*1080P+2 *720p) |
| Video Output: |
1CH HDMI(1080P), 1CH VGA(1080P), 1CH BNC(D1) |
| Recording/Playback: |
16CH 960h Realtime Recording/ 16CH 960h Realtime |
| Video Split: |
1/4/8/9/16CH(DVR Mode) |
| Audio: |
16CH RCA Input/1CH RCA Output |
| Alarm: |
8CH Input/1CH Output |
| PTZ: |
1CH RS485 |
| Type: |
Standalone |
| Feature: |
Mini Size |
| Operating System: |
Linux |
| Technology: |
H.264 High Profile |
| Sensor: |
Hi3531 |
| Style: |
1u |
| Horizontal Resolution: |
1080P/960p/720p/D1 |
Product Description
Compression algorithm upgraded to H. 264 High Profile, more advanced video compression technique makes the code stream lowered at least 30%.
Completely new graphics operating interface design, to let you experience easily and conveniently
SDVR combines the functions of DVR/HVR/NVR together, multi-mode input ( support pure analog input, support analog + network HD video input, support pure network HD video input). No need to worry how to be compatible with analog system, to choose DVR or HVR, just one SDVR can work.
Super Strong processing capacity: Can realize 16CH 960H realtime recording and 8CH 960H realtime playback synchronously.
Support super cloud service (this function is optional, specialized website forsuper cloud service: www.dvrcenter.net), one step to do remote control easily & conveniently without any complicated setting.
Powerful net service(support DHCP, PPPOE, FTP, DNS, DDNS, ARSP(www.dvrcenter.com), NTP, UPNP, EMAIL, IP authority, IP search, alarm center, etc), complete enclosure(WEB, CMS, SDK), to easily achieve interconnection.
Support all kinds of mobile monitor(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
Multiplex operation: Preview, recording, playback, backup, network live, mobile phone view; All operations are independent of each other.
Twenty kinds of language(English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc), break up country limitation.
|
Video Input |
DVR Mode |
16CH*960H/16CH*D1 |
|
HVR Mode |
8*D1+16*D1/ 8*D1+8*720P/ 8*D1+(2*1080P+2 *720P)/ 4*D1+20*D1/ 4*D1+(2 *1080P+10*D1)/ 4*D1+(1*1080P+7*720P)/ 4*D1+(1*1080P+1*720P+10* 960H) |
|
NVR Mode |
24*D1 / 20*960H / 4*1080P / 1*1080P+8*720P / 2*1080P+4*720P+4*960H |
|
Video Output |
1ch HDMI ( 1080P ), 1ch VGA ( 1080P ), 1ch BNC ( D1 ) |
|
Recording/Playback |
DVR mode : 16CH 960H realtime recording/ 16CH 960H realtime playback |
|
Video Split |
1/4/8/9/16ch ( DVR mode ) |
|
Ports |
Audio |
16ch RCA input/1ch RCA output |
|
Alarm |
8ch Input/1ch Output |
|
PTZ |
1ch RS485 |
|
HDD |
2pcs SATA HDD , Each max 3TB(2*3TB) |
|
USB |
2*USB2.0 ( Support 3G \ WIFI module ) |
|
Size(mm)/Weight(kg) |
|
370*285*72mm/3.8 KG (4pcs/carton) |
Shenzhen Joney Security Technology Co., Ltd is specializing in developing, manufacturing and marketing of security products.
Our products include CCTV and access Control, such as CCTV cameras, DVR, IP cameras, NVR, Analog HD cameras like HD-CVI, AHD and HD-SDI.
Access control products such as biometric devices, access control system, fingerprint locks and Home alarm system.
Meanwhile we are the Agent for some top level brands in China like Dahua, Hikvision and ZK Software, with large quantity in stock to make fast delivery.
Established in 2009, We serve more than 300 customers worldwide, 2 factories with a total area of 1500 square meters, Key components from Sony, Sharp, Panasonic and LG.
100QC inspectors ensure the all of our items bear CE, FCC and RoHS marks, 8 QC inspection steps before shipping, 18 months warranty.
20 engineers and 50 technicians will work on your OEM/ODM requirements and after sale service.
500-piece orders are shipped within 7 working days.
To benefit from our excellent service and products, Please contact us today.
