Qingdao Desiree Group Rubber Machinery Co., Ltd. >> 16" Rubber Two Roll Open Mixing Mill Machine

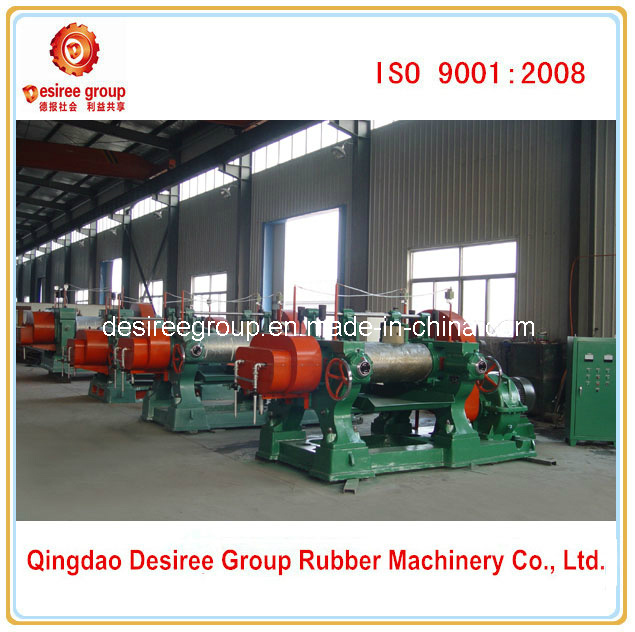

16" Rubber Two Roll Open Mixing Mill Machine

Supplier:	Qingdao Desiree Group Rubber Machinery Co., Ltd.
Price:	US $ 16700-22700/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	XK-400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of General Rubber Machinery:	Mixing Roll
Type Of Tire Machinery:	Rubber Regeneration Machinery
Certification:	ISO, CE
Name:	Two Roll Open Mixing Mill Machine
Condition:	New
Roll Working Diameter:	400mm
Roll Working Length:	1000mm
Linear Velocity Of The Front Roll:	18.65m/Min
Friction Ratio Of Rolls:	1:1.27
Type:	General Rubber Machinery
Warranty:	One Year

Product Description

Rubber Machine / 16" Rubber Two Roll Open Mixing Mill Machine

Function:
Mainly for rubber warming, plasticating, mixing, and sheeting.

Technical Parameters:
Model No.: XK-400

Roll working diameter(mm): 400 (16")

Roll working length(mm): 1000

Linear velocity of the front roll(m/min): 18.65

Friction ratio of rolls: : 1: 1.27

Max. Nip of rolls(mm): 10

Feeding capacity per batch(kg): 18~35

Motor power(kW): 37

Overall size: L * W * H (mm): 4350*1850*1785

Features:
1. Rollers: Made of alloy chilled cast iron, hollow, with smooth surface after precision grinding processing.

2. Reducer: Noise is low, and using life is long.

3. Bush: Three types, nylon, copper, and roller bearing

4. Nip adjustment: Two types, manual and electric

5. Lubrication of roll: Two types, oil lubrication and grease lubrication

6. Emergency stop device: With emergency button and lever, to ensure the safety of operator and equipment.

Quality Control:
BEFORE PACKAGE, LOAD TEST WILL BE CARRIED OUT, TO ENSURE THE CUSTOMER CAN USE THE MACHINE IMMEDIATELY AFTER INSTALLATION.

Our Services:
1. One year warranty for free.
2. Lifetime technical support.
3. Engineers available to service machinery overseas.
4. Any demand, we will give feedback within 24hours.

Welcome to make a field inspection of our factory.
We are always pleased to serve you at any time.

Rubber Machine Model No.	XK-160	XK-230	XK-250	XK-360	XK-450	XK-560	XK-550B	XK-660
Roll working diameter(mm)	160	230	250	360	450	560/510	550	660
Roll working length(mm)	320	600	620	900	1200	1530	1500	2130
Linear velocity of the front roll(m/min)	8.95	10.21	14.1	16.25	24.26	27.72	27.94	28.6
Friction ratio of rolls	1:1.35	1:1.19	1:1.17	1:1.25	1:1.27	1:1.2	1:1.22	1:1.24
Max. nip of rolls(mm)	4.5	7	8	10	15	15	15	15
Feeding capacity per batch(kg)	1~2	6~10	8~15	20~25	25~50	35~50	50~60	165
Motor power(kW)	5.5	15	18.5	30	55	90	110	245
Overall size: L * W * H (mm)	13808601320	280012001120	340015001800	378018501750	520023801840	584522841978	587024752045	746536622080
