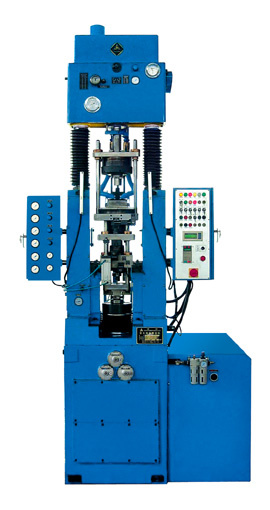

Product Specifications
| Prod Model: |
HPP-T |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Quality
Positioning accuracy: 0.02mm
Repetition accuracy: 0.02mm
Productivity
High stroke rates due to mechanical main drive
Energy Consumption
The hybrid drive concept results in minimal energy consumption
Versatility
Withdrawal principle
Ejection principle
Key Features
1. Compact design philosophy
2. The revolutionary floating platen pressing system
3. On the basis of proportional pressing technology
4. The respective stop-position of(pressing, ejection and filling) are in high stop accuracy
5. Powder filling compensation
6. Automatic filling system
7. Real-time production and quality monitoring
8. Dynamic core rod system
9. With readily removable die set for simple and complex parts
10. Strong withdrawal force
11. Long withdrawal travel for taller products
12. Compaction with even density and without crack (ejection holding technology)
13. Attachment of Automation Equip possible
14. PLC based controlling system
15. AC frequency inverter for pressing speed variation
16. Special design according to customs' inquiry
Technical Parameters:
1. Max pressing capacity: 160KN
2. Max ejection capacity: 80KN
3. Max die withdrawing pressure: 50KN
4. Max die return force: 5.5KN
5. Upper punch stroke: 100mm
6. Upper punch adjustment: 70mm
7. Max depth of filling: 65mm
8. Max pressing stroke: 30mm
9. Max ejection stroke: 35mm
10. Max top pressing stroke: 6mm
12. Die ejection level adjustment: 50
13. Max compact diameter: 80mm
14. Strokes per minute: 10-30
15. Type of feeding device: Straight cam vibration
16. Feeder stroke: 125mm
17. Powder hopper: 15L
18. Type of upper punch adjustment: Manual or Motorized
19. Type of filling adjustment: Manual or Motorized
20. Type of ejection adjustment: Manual
21. Type of top pressing adjustment: Manual
22. Type of Lubrication: Motorized oil pump
23. Speed chang device: Inverter
24. Clutch&brake: Air Clutch
25. Required air presure: 0.5-0.7 Mpa
26. Air consumption: 300L/min
27. Main motor powder: 4kw
28. Dimension: 2380/2580*1125*1120
29. Weight: 1900kg
