Guangzhou Dekun Construction Machinery Co., Ltd. >> 160HP Bulldozer

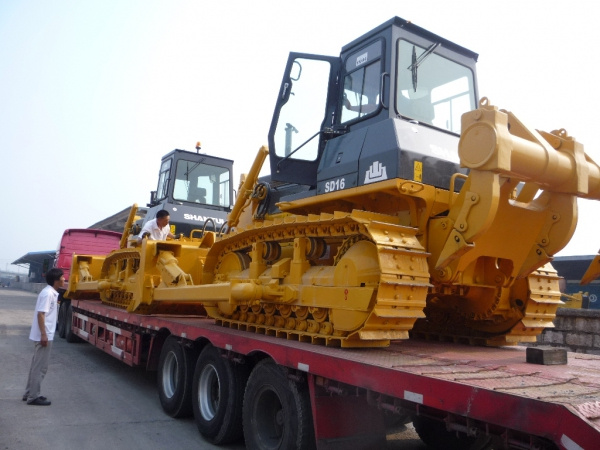

160HP Bulldozer

Name: 160HP Bulldozer
Brand: China-Manufacturer-Directory.com
SKU: 721123975
Availability: InStock
Rating: 4.5 (98 reviews)

Supplier:	Guangzhou Dekun Construction Machinery Co., Ltd.
Price:	US $ 89000-95000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	SD16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Powe/Speed:	120/1850 Kw/Rpm
Track Center Distance:	1880mm
Ground Contact Land:	2730mm
Another Type:	SD22, SD23, SD32
Dimension (Lxwxh):	5140X3388X3032mm
Operating Weight:	17ton
Blade Digging Depth:	540mm
Engine Model:	Wd10g178e25/ Sc11CB184G2b1
Ripper Digging Depth:	592mm
Ripper Lifting Height:	1095
Walking Mode:	Crawler
Condition:	New
Type:	Medium-sized Loader
Certification:	ISO9001: 2000
Load And Unload Method:	Front Discharge

Product Description

SD16 bulldozer is powerful machine for pushing earth or rocks, used in road building, farming, construction, and wrecking; It consists of a heavy, broad steel blade or plate mounted on the front of a tractor. Sometimes it uses a four-wheel-drive tractor, but usually a track or crawler type, mounted on continuous metal treads, is employed.

Main Specification		SD16
Overall dimension	mm	5140x3388x3030
Operating Weight	t	17Ton (without ripper)
Engine Model		WD10G178E25/ SC11CB184G2B1
Rated Power/Speed	kw/rpm	131/1850
Track Center Distance	mm	1880
Ground Contact Land	mm	2430
Land Pressure	Mpa	0.067
Forward speed	kw/h	F1: 0~3.29 F2:0~5.82 F3: 0~9.63


Rear speed	kw/h	R1: 0~4.28 R2:0~7.59 R3: 0~12.53


Blade Digging Depth	mm	540
Ripper digging depth	mm	572
Blade Lifting Height	mm	1095
Ripper lifting height	mm	592
Grade Ability	°	30
Track Width	mm	510
Blade capacity	m³	Stright blade:4.5 Angle balde:4.3
Blade Type		stright, Semi-U, angle, U
Blade Length*Width	mm	(S)3388x1040, (Angle)3970x1040 U 3556x1120,
Ripper type	Tridentate ripper

Guangzhou Dekun Construction Machinery Co., Ltd was set up in 2009. We are a company engaged in Construction Machinery, Heavy Duty Machinery and Agricultural Machinery.
The products of our company are available through the Manufacturer's Authorized, Product Quality, ISO9001 Quality System Certification and CE Certification.
The company provides Wheel Loader, Skid Wheel Loader, Road Rollers, Bulldozers, Excavators, Motor Grader, Paving Machine, Truck Crane, etc.
Products are exported all over the world by continuous exploration and development. Now establish good working relationship with many foreign customers, Iran, Iraq, Saudi Arabia, Kuwait, and Brazil, etc.
