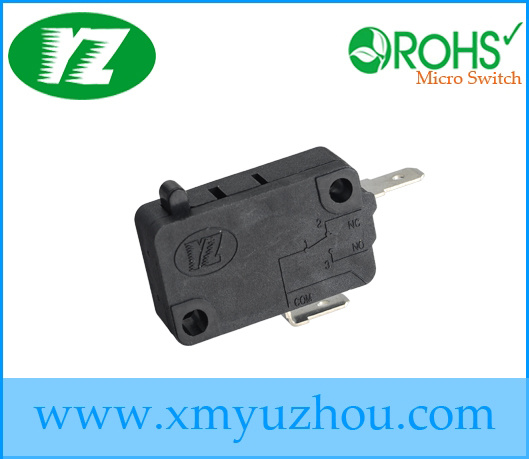

16A Combination Electrical Micro Switch (V-16-2A)

Name: 16A Combination Electrical Micro Switch (V-16-2A)
Brand: china-manufacturer-directory.com
SKU: 712117565
Availability: InStock
Rating: 4.5 (28 reviews)

Supplier:	Xiamen Universal Electronic Co., Ltd.
Price:	US $ 0.29/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	V-16-2A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connect Forms:	Spst-Nc
Usage:	Check Button
Kind:	Single-pole on-off Switch
Type:	Normal Close
Brand:	Yz

Product Description

16A Switches

Characteristics and usage

*Safe reliable basic switch.

*Nice appearance, tight configuration, characteristic, quick action and high sensitivity.

*Long life, high reliability.

*Variety of contact terminals.

*Variety of levers.

*A variety of models with low operating force to high force are sensitivity.

Apply to microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, Water heater, electric drill, electric radiator, joystick, TV game, time recorder, solder gun, mixer, Food processor, juice maker, alarm, mixer, shredder machine, etc.

1. Degree of Temperature	No Mark: T125	5. Terminal Types	A: 250 Quick-connect Terminal B: 187 Quick-connect terminal(Thick: 0.8) C: 187 Quick-connect terminal(Thick: 0.5) D: Solder/187 common terminal E: Screw terminal F: Solder terminal G: 250 Quick terminal No. 2 Y: Not standard terminal
2. Ratings	16: 16(4)A250VAC/16A125VAC 1/2HP 125/250VAC 10: 10(3)A250VAC/10A125VAC 6: 6(2)A250VAC/6A125VAC 1: 1(1)A250VAC/1A125VAC
		6. (max) Operating Force	051: 0.5N 025: 0.25N 050: 0.5N 100: 1N 150: 1.5N 200: 2N 300: 3N 400: 4N
3. Connect Forms	1A: SPDT 2A: SPST-NO 3A: SPST-NC
		7 Plunger specs	No mark: Standard Plunger A: Middle Plunger B: Long Plunger C: Abnormality Plunger ( see dirgram ) Notice: If adopt other not standard plunger, the indicate with the new spec(confirmed by our company)
4. Acuator forms	0: No lever A 1/1: Short lever A 2/2: Long lever A 3/3: Middle lever A 4/4: Short Roller A 5/5: Long Roller A 6/6: Arc lever A / : Not standard lever Note: 1) A indicate the lever near to the Plunger, no A indicate the lever far Away from the plunger. 2) If lever is amounted besides, add letter" B" after the lever code. 3) Indicate not standard lever
		8. Additional Specis Numbers Apply to:	1)When used not standard parts such as not standard terminals; 2)When Customer has particular Operating value or other requirement 3) When the case is mot black, for example, grey shows as G. Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant

Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.

Main products:

Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.

Superior Service:

Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.

Quality Assurance:

We have QC department to make inspect every step of production, so we can make sure good quality products for customers.

Sample Order:

Sample order is available, normally, it takes about 7 days to make new samples.

Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
