Xiamen Universal Electronic Co., Ltd. >> 16A Micro Switch for Dishwasher Cleaner

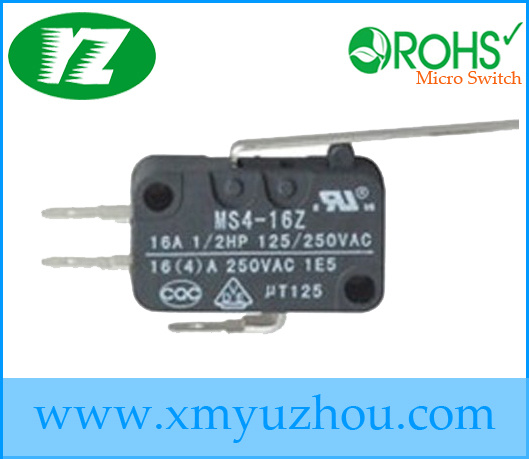

16A Micro Switch for Dishwasher Cleaner

Name: 16A Micro Switch for Dishwasher Cleaner
Brand: China-Manufacturer-Directory.com
SKU: 715199975
Availability: InStock
Rating: 4.8 (56 reviews)

Supplier:	Xiamen Universal Electronic Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	MS4-16Z1-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
The Theory:	16A Micro Switches
Connect Forms:	Spst
Actuator Forms:	Short Lever
Terminal Type:	187 Quick-Connect Terminal

Product Description

16A Micro Switches

Snap Switches Characteristic:

(1)A variety of levers

(2)Long life, high reliability

(3)A variety of contact terminals

(4)Adopt thermosetting plastic or thermoplastic

(5)A variety of models with low operating force to high operating force are available.

(6)Nice appearance, tight configuration, small contact clearance, quick action, high sensitivity and small operating travel.

Mini Electric Switches Application:

Widely used in home appliance, electronic equipment, automatic machine, communication equipment, car electron, apparatus and instrument, electric mition tool etc.

Item		Value
Operating Speed		0.1mm~1m/s(Related with actuator forms)
Operating Frequency		Mechanical 60 cycles/min; Electrical 30 cycles/min
Insulation Resistance		> =100 MΩ (500VDC)
Contact resistance		< =30mΩ (Initial value)
Test Voltage	Between terminals of the same polarirty	AC1000V, 50/60Hz, 1min
	Between current-carrying metal And ground(case), and between Each terminal and non-carrying metal parts	AC3750V, 50/60Hz, 1min
Vibration resistance		10-55Hz, 1.5mm Double amplitude
Shork Resistance		Destruction: OF> 0.5N: 1000m/s ² (approx. 100G)max OF< =0.5N: 500m/s ² (approx. 50G)max Malfunction: OF> 0.5N: 300m/s ² (approx. 30G)max OF< =0.5N: 200m/s ² (approx. 20G)max
Life Expectancy		Mechnical> =5000000 cycles Electrical> =100000 cycles
Degree of protection		IEC IP67
Degree of protection against electric shock		Class I
PTI(Tracking Resistance)		175
Ambient air temperature		125 Degree 60%RH below(No ice and dew)
Ambient air humidity		85% Rhbelow(about +5~+35 Degree)
Weight		Approx. 5.95g(No lever)

Notes: Shows the operating force of no lever

Model Specs naming and meaning

1. Degree of Temperature	No Mark: T125	5. Terminal Types	A: 250 Quick-connect Terminal B: 187 Quick-connect terminal(Thick: 0.8) C: 187 Quick-connect terminal(Thick: 0.5) D: Solder/187 common terminal E: Screw terminal F: Solder terminal G: 250 Quick terminal No. 2 Y: Not standard terminal
2. Ratings	16: 16(4)A250VAC/16A125VAC 1/2HP 125/250VAC 10: 10(3)A250VAC/10A125VAC 6: 6(2)A250VAC/6A125VAC 1: 1(1)A250VAC/1A125VAC
		6. (max) Operating Force	051: 0.5N 025: 0.25N 050: 0.5N 100: 1N 150: 1.5N 200: 2N 300: 3N 400: 4N
3. Connect Forms	1A: SPDT 2A: SPST-NC 3A: SPST-NO
		7 Plunger specs	No mark: Standard Plunger A: Middle Plunger B: Long Plunger C: Abnormality Plunger ( see dirgram ) Notice: If adopt other not standard plunger, the indicate with the new spec(confirmed by our company)
4. Acuator forms	0: No lever A 1/1: Short lever A 2/2: Long lever A 3/3: Middle lever A 4/4: Short Roller lever A 5/5: Long Roller lever A 6/6: Arc lever A / : Not standard lever Note: 1) A indicate the lever near to the Plunger, no A indicate the lever far Away from the plunger. 2) If lever is amounted besides, add letter" B" after the lever code. 3) Indicate not standard lever
		8. Additional Specis Numbers Apply to:	1)When used not standard parts such as not standard terminals; 2)When Customer has particular Operating value or other requirement; 3) When the case is mot black, for example, grey shows as G; Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant

Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.

Main products:

Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.

Superior Service:

Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.

Quality Assurance:

We have QC department to make inspect every step of production, so we can make sure good quality products for customers.

Sample Order:

Sample order is available, normally, it takes about 7 days to make new samples.

Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
