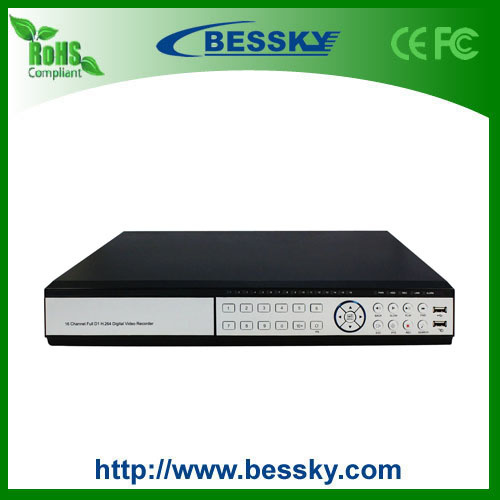

16CH H. 264 Compression Network DVR Software

Name: 16CH H. 264 Compression Network DVR Software
Brand: china-manufacturer-directory.com
SKU: 699359145
Availability: InStock
Rating: 4.6 (150 reviews)

Supplier:	Shenzhen Bessky Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	BE-9816FD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Screen:	1/4/8/9/16 Screen
Encode Capability:	16CH D1 Real Time(DVR Mode)
Decode Capability:	16CH D1 Real Time(DVR Mode)
Video Input:	16CH BNC
Video Output:	2CH BNC, 1CH VGA, 1CH HDMI
Alarm Input:	16CH
Alarm Output:	2CH
Wireless Port:	3G\WiFi
Power:	DC12V/6A
Dimension:	430(L)X66(H)X345(W)
Type:	Software
Feature:	High Definition
Technology:	H.264 DVR
Application:	CCTV Camera
Kind:	H.264 DVR
Sensor:	H.264

Product Description

16CH H. 264 Compression Network DVR Software

Main features:
1. Use the standard H. 264 video compression format. 'more advanced video compression technique makes the code stream lowered at least 30%
Can realize 16CH D1 recording and 16CH D1 realtime playback Synchronously, Real Full D1 products
2. Combines the functions of DVR/HVR/NVR together, multi-mode input ( support pure analog input, support analog + network HD video input, support pure network HD video input). No need to worry how to be compatible with analog system, to choose DVR or HVR, just one can work
3. Support super cloud service (this function is optional, specialized website forsuper cloud service), one step to do remote control easily & conveniently without any complicated setting
4. Hexaplex operation simultaneously: Preview, recording, playback, backup, network live, mobilephone view
5. Multiple record mode: Auto, timer, motion recording mode
6. Optimized 16-CH simultaneous playback, each channel can be enlarge to full screen
7. Support backup with USB Flash Disk, Movable hard disk, DVD writer, Network
8. Support drag the progress bar can be targeted playback time directly
9. Support Network function: One IE browser centralized monitoring and CMS Software for multiple DVR
10. Supports Multiple backup mode: USB flash drive, USB hard disk and network backup
11. Support one SATA HDD, max capacity is 2TB
12. Support 3G & WiFi extension
13. Support multi-browser(IE, Chrome, Firefox, Safari)
14. Support mobile phone monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
15. Powerful net service(support DHCP, PPPOE, FTP, DNS, DDNS, ARSP, NTP, UPNP, EMAIL, IP authority, IP search, alarm center, etc), complete enclosure(WEB, CMS, SDK), to easily achieve interconnection

Specification	Model	BE-9816FD
System	Main processor	HIS chipset Hi3531
Display	Display screen	1/4/8/9/16 screen
Video	Video standard	PAL(625 lines,50fps);NTSC(525lines,60fps)
	Monitor quality	Monitor:D1;VGA:1080P ;HDMI:1080P
	Playback quality	Max support 1080P under HVR and NVR mode;Max support D1 under DVR mode
	Encode capability	16CH D1 real time(DVR mode)
	Decode capability	16CH D1 real time(DVR mode)
	Multi-mode video input	DVR mode :16 *D1
		HVR mode: 8D1+16D1 / 8D1+8720P / 8D1+(21080P+2 720P) / 4D1+20D1 / 4D1+(2 1080P+10D1) / 4D1+(11080P+7720P) / 4D1+(11080P+1720P+10* 960H)
		NVR mode:24D1 / 20960H / 41080P / 11080P+8720P / 21080P+4720P+4960H
	Motion detection	Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)
Audio	Audio compression	G.711A
Record and playback	Record mode	Manual\alarm\motion detection\timing
	Local playback	Max support 16CH D1 real time playback synchronously(DVR mode)
	Video search	Time\date\event\channel search
Storage and back up	Space occupation	Video:CIF 4~5G/daychannel, D1 16~20G/daychannel;
	Space occupation	audio:691.2M/day*channel
	Video storage	Local HDD \Network
	Back up mode	Network backup\USB portable HDD\USB DVD-RW\SATA DVD-RW
Interface	Video input	16CH BNC
	Video output	2CH BNC,1CH VGA,1CH HDMI
	Audio input	16CH RCA
	Audio output	1CH RCA
	Alarm input	16CH
	Alarm output	2CH
	Network port	RJ45 10M/100M self-adaptive Ethernet port
	PTZ control	1 RS485;support multi kinds of PTZ Protocol
	USB port	2*USB2.0
	HDD port	4 SATA(each max support 2048G)
	Wireless port	3G\WIFI(extension via USB port)
CMS	CMS software	Support (up to 255 DVR simultaneously)
other	Tour	Support
	Remote controller	Support
	Power	12V/6A
	Dimension	430(L)x66(H)x345(W)
