VG (Shenzhen) High Tech Ltd. >> 16channel Surveillance PCI DVR Card With V8.4 Software Supporting Windows 7

16channel Surveillance PCI DVR Card With V8.4 Software Supporting Windows 7

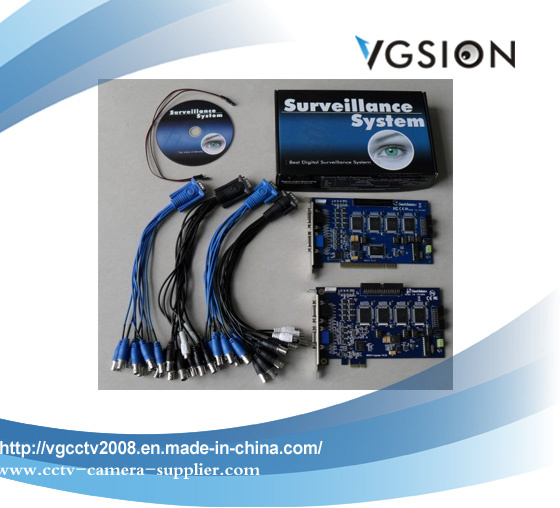

Name: 16channel Surveillance PCI DVR Card With V8.4 Software Supporting Windows 7
Brand: China-Manufacturer-Directory.com
SKU: 676235485
Availability: InStock
Rating: 4.7 (58 reviews)

Supplier:	VG (Shenzhen) High Tech Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	by Sea, Air, Express

Product Specifications

Prod Model:	GV-800V4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Video Input:	16CH
Audio Input:	4CH
Recording Rate:	120 Fps (NTSC), 100 Fps (PAL)
Display Rate:	120 Fps (NTSC), 100 Fps (PAL)
Video Resolution:	Full D1, Half D1, CIF
Software:	V8.3/V8.3.3/V8.3.4
Type:	PCI
Special Features:	Support Windows 7
Kind:	DVR Card
Sensor:	Video Capture
Technology:	Geovsion Compression Format

Product Description

16channel Surveillance PCI DVR card with V8.4 Software supporting Windows 7
Feature:
*Video Input(s): 1, 2, 4, 6, 8, 10, 12, 16 Cams
*Audio Input(s): 4 channels
*Total Recording Rate: 120fps(NTSC), 100fps (PAL)
*Display Rate: 120fps(NTSC), 100fps (PAL)
*Video Resolution: Full D1, Half D1, CIF
*Compression format: Geo MPEG4, Geo MPEG4(ASP), Geo H264, Geo H264 V2
*V8.30 Software ( V8.3 Spanish / English software are available )

Remark:
1PCS PCI card + 1PCS PCI-E card in one PC can become 32channel DVR cards

Model NO.	GV800 V4 PCI
Input type	D-Type: DB15 x 2
Video Input(s)	1, 2, 4, 6, 8, 10, 12, 16 Cams (become 32 CH by 1 PCI GV800V4 & 1 PCI-E GV800V4)
Audio Input(s)	4 Channels
Total Recording Rate	120 fps (NTSC), 100 fps (PAL).
Display Rate	120 fps (NTSC), 100 fps (PAL).
Video Resolution - NTSC/PAL	Full D1, Half D1, CIF
Compression Format	Geo MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264 V2
GV-NET Card Support	YES
GV-A16 Support	YES
GV-NET/IO Card Support	YES
Software	V8.3.4 (V8.3 Spanish/English software are available )
Dimensions (W x H)	GV-800 D-Type: 174 x 98 ( mm)
PC Requirement for 1 CARD:
OS Supported	32-bit: Windows XP/ Windows Vista/ Windows 7
CPU	Pentium 4-3.0 GHz with Hyper-threading
RAM	Windows XP: 2 x 512 MB Dual Channels Windows Vista / Windows 7: 2 x 1 GB Dual Channels
HDD	80GB Recommended
VGA	ATI Radeon X600, NVIDIA 6200
DirectX	9.0c
PC Requirement for 2 cards
OS Supported	32-bit: Windows XP/ Windows Vista/ Windows 7
CPU	Pentium 4-3.0 GHz Dual Core
RAM	2 x 1 GB Dual Channels
HDD	160 GB Recommended
VGA	ATI Radeon X1300 PCI-E, NVIDIA GeForce 7300 PCI-E
DirectX	9.0c
Notice:	GV800 V4 PCI currently not compatible with VIA series and ATI series chipset motherboards

VG (Shenzhen) High Tech Ltd (VG HK High Tech Ltd) are surveillance equipment designer and manufacturer, who have over 8 years' experience providing complete surveillance solutions with the brand name VGSION. We design, produce and source high quality products for worldwide customers.

We have two categories of products. One is professional CCTV surveillance equipment, the other one is consumer surveillance equipment. Professional CCTV surveillance equipment includes:

1. CCTV Camera
2. CCTV DVR
3. CCTV DVR Card
4. CCTV accessories

Consumer surveillance equipment includes:

1. mini camera DVR
2. Sports Camera DVR
3. car black box

Most of our CCTV products are designed for government project. Our products are of high standard items. Except some consumer products and CCTV accessories, all the products are produced by ourselves.

Our outstanding products are LPR Camera, Vari-focal IR camera, DVR Card, DVR and car black box. We design the housing and software by ourselves. The quality is of high standard and the price is competitive.

We have rich OEM experience. If you are our customers, you will be offered:

a. 2 years of warranty after the shipment of products from us
b. Refund within 30 days after the shipment of products from us due to products' problems
c. OEM service. We can print your logo and stick your model No. on the cameras.
d. Good discount from shipping companies. We have long cooperation with many
shipping companies and our export volume is large. The shipping companies
can offer us good discounts.
e. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.

We believe that we can be your right supplier. We are looking forward to your inquiry!
