Product Specifications
| Prod Model: |
GS5922E-252-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Steel Thickness: |
2.5mm for Body and Door |
| Lock: |
Round Push Button Electronic Lock (Ap8111) |
| Security Feature1: |
Chrome Plated 25mm(1 Inch) Dim Solid Steel Boltwor |
| Security Feature2: |
Spring Loaded Relocking System. |
| Security Feature3: |
Fire Activated Expanding Door Seal. |
| Material: |
Steel Plate |
| Function: |
Fireproof |
| Certification: |
ISO |
| Password Working Principle: |
Electronic |
| Application: |
Home |
Product Description
Model Number: GS5922E-252-01
Minimum Order Quantity: 80 Piece/Pieces
Supply Ability: 5000 Piece/Pieces per Month

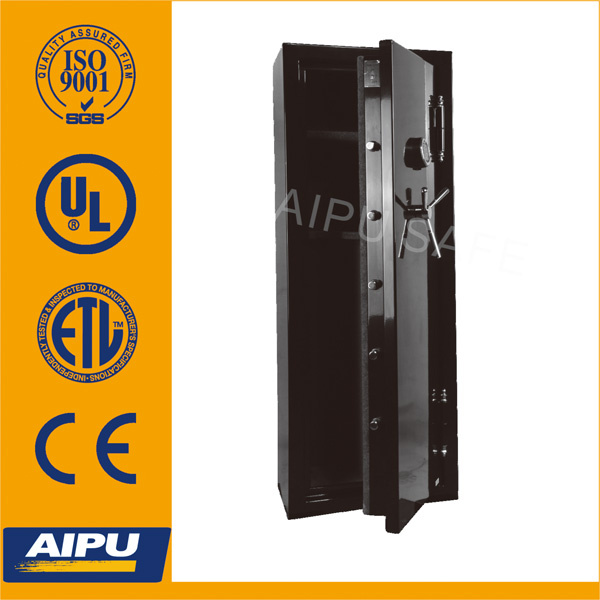

16gun fireproof gun safe GS5922E-252-01 with electronic lock and balck high gloss 59.1 x22 x16(inch)
1) Size & Weight:
- External Size (H x W x D): 1500 x 559 x 406(mm); 59.1 x22 x16(inch)
- Net Weight: 150± 10kg / 330± 20 lbs (approx)
2) Interior and shelving.
- Carpeted walls and bottom. (RB003)
- 16 capacity convertible gun rack. (8+8, wood, carpeted)
- one top shelf, 3 small shelves.
3) Material: Steel thickness: 2.5mm for body and door
4) Lock & handle
- Round push button electronic lock (AP8111)
- 2 user codes, 3~8 digit password, hidden mechanical override key
- 3 spoke handle
5) Security feature
- Chrome plated 25mm(1 inch) dim solid steel boltwork, Powder coat dealbolts.
- Direction and q'ty of bolt ( Horizental - top - bottom - deadbolt): 5-1-0-3
- Spring loaded Relocking system.
- Fire board: 16mm x 1layer for body and door, Additional 12mm board for door back cover.
- Fire activated expanding door seal.
- round hinge (25mm dim)
6) Color and Finish
- Durable powder coat high gloss black.
- Color option: Other color available for order q'ty over than 150 PCS.
7) Accessory
- 4 x tube type pedestal work as pallet for easy moving. Pedestal can be removed.
- 4 anchor bolt holes on the bottom (12mm, 1/2inch). 4anchoring bolts included.
- Predrilled one electricity line hole on the back. (12mm, 1/2inch)
- one 9V battery.
8) Standard option:
- Custom Silk screen Logo: Please contact us for MOQ and additional cost.
- 5 spoke handle or L-shape handle
- Additional shelf.
- Please contact us if you have other needs.
** Sales restricted area: None
AIPU is a safes manufacturing company located in Ningbo China.
Our company consist of 3 safes factories and one safes technology research institute in Ningbo with overall 1200 employees and 45 sales branches throughout the mainland China.
We are proud of being safes manufacturer with advanced equipments such as CNC punching machines and lazer cutting machines, and we have more than one hundred safes expert engineers.
AIPU received ISO9001 quality control system and we also have products carrying UL, CE, ETL and many other overseas and Chinese certificates.
We have been building safes from 1991 and have become number 1 market share from 2005 in Chinese domestic market.
Our overall sales volume 2009 was around $52, 000, 000 and $18, 000, 000 was exported to overseas.
We are a major supplier of many large and famous safes companies such as Gunnebo, AMSEC, Stack-On, Gardall, MESA, Pheonix, etc.
Our product range covers wide varity of different safes such as gun safes, fire proof safes, depository safes, hotel safes, finger print safes, etc.
With our accumulated experience in safes building and service, we believe that we could satisfy your need and can be your supplier.
