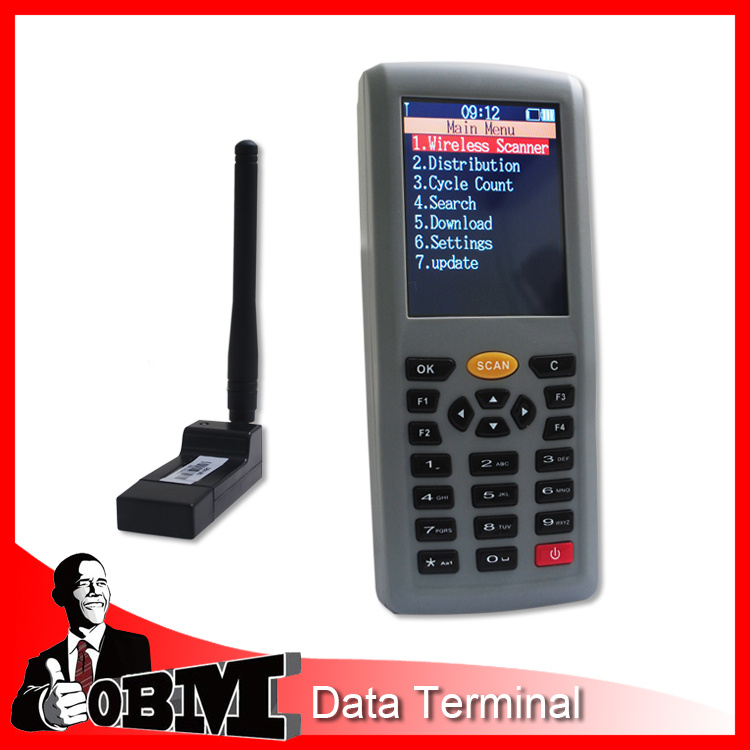

Easytech Systems Inc. >> 16m Wireless Color Screen Barcode Data Terminal (OBM-9800)

16m Wireless Color Screen Barcode Data Terminal (OBM-9800)

Name: 16m Wireless Color Screen Barcode Data Terminal (OBM-9800)
Brand: China-Manufacturer-Directory.com
SKU: 737772955
Availability: InStock
Rating: 4.7 (25 reviews)

Supplier:	Easytech Systems Inc.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	OBM-9800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Data Storage:	> 100,000 PCS Barcodes
Detachable Battery:	Rechargable 2800mA Lithium-Ion Battery
Wroking Time:	10 Hours( Continuous )
Standby Time:	15 Days
Win7,Win8:	Compatiable
Wireless Transmisssion:	Supports
Color Screen:	2.8"
Program Refreshing:	Supported
Color:	Frosted White
Dimension:	150* 63* 31
Memory Capacity:	≤32MB
Type:	Handheld Computer
CPU Type:	ARM
OS:	Obm
Screen Size:	2.8"

Product Description

16M Wireless Color Screen Barcode Data Terminal(OBM-9800)

Features:
1. Cordless Scanner and Wireless Inventory handheld functions integrated;
2. Item name displays right after the barcode is scanned;
3. Program refreshing supported;
4. TXT or EXCEL file created as soon as data is uploaded;
5. Use as a USB flash disk (optional).

About Us:

Easytech is a technology-driven company specialized in the Auto-Identifica-tion (Barcode & RFID) industry. Products include Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner, Barcode Data Terminal, Stock Counter, Inventory Control Handheld, Mobile POS, RFID Data Terminal and RFID Reader.

Main Unit
Model		OBM-9800
Color		Fosted White
CPU Speed		48MHz
Memory
RAM		4KB
ROM		16MB(Optional 32MB)
SCREEN
Size		2.8
Color		16bit true color(65536 colors)
Resolution		240*320
type		Color screen
Physical
Battery		Rechargeable Lithium-ion ( 3.7V , 2800mAh )
Working time		16 hours
Standby		15 days
Measurement		150mm × 63mm × 31mm
Material		ABS + silicone
Charging indicator		LCD
Working current		150mA
Standby current		6mA
EMC		CE & FCC DOC compliance
Scanning
Light Source		Light Source
Decode Rate		48±2 scans / second
Resolution		4mil
Scan width		20mm @window , 220mm @200mm
Depth of Field		0 ~ 250mm ( 0.33mm , PCS 90% )
indicator		buzzer , LCD
Barcode supported		EAN-8 , EAN-13 , UPC-A , UPC-E , Code 39 , Code 93 , Code 128 , EAN128 , Codaber , Industoal 2 of 5 , Interleave 2 of 5 , Matrix 2 of 5 , MSI
Transmission
Cable		USB 2.0
wireless		433MHz (max. range 300m)
Environment
Working Temperature		0 ~ 45
Storing Temperature		-20 ~ 60
Humidity		5% ~ 95%
Lumination		Max.5,000 Lux ( Fluorescence )
