Product Specifications
| Prod Model: |
RJ1612 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001, ISO14001, Ts16949 |
| Resistance: |
Variable Resistor |
| Type: |
Rotary Potentiometer |
| Installation: |
DIP Resistor |
| Function For Resistance: |
Load Resistor |
| Material: |
Carbon Film Resistor |
| Package Type: |
Surface Mount |
Product Description

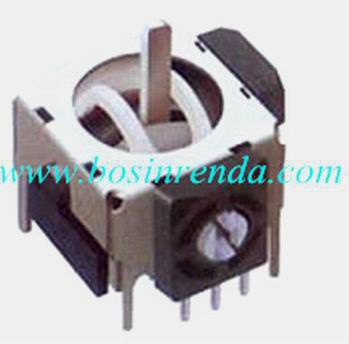

Potentiometer, rotary potentiometers, Joystick potentiometer
This type joystick potentiometer mainly use on electrical toys, Sony PS3.
Our products have superior operational feeling, integrated tact switch and long operational life.
Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.
Please check below specification.
1. Electrical characteristics
1.1 Total Resistance: 5kΩ ~100kΩ
1.2 Total Resistance Tolerance: ± 20%
1.3 Resistance Taper: B taper
1.4 Rated Power: Taper B: 0.0125W
1.5 Withstand Voltage: 1 minute at AC 250V
1.6 Insulation Resistance: More than 100MΩ At DC 250V for 1 minute
1.7 Max. Operating Voltage: Taper B: AC 50V or DC 5.0V
2. Mechanical characteristics
2.1 Figure of lever operation: Circular Operating
2.2 Stopper Strength: 3.1Kgf. Cm Min 3Sec.
2.3 Operating angle of lever: 60° ± 6°
2.4 Push-Pull Strength: Push/Pull: 5.0Kgf Min 3Sec.
2.5 Operating Force: 160± 40gf
2.6 Accuracy of rest position: ± 5°
3. Durability
3.1 Rotational Life: Standard life: 1Million Cycles Min.: Long life: 2 Million Cycles Min.
4. Tact Switch specification
4.1 Ratings: 12 V DC, 50 mA
4.2 Operating Force: 820± 260gf
4.3 Travel: 0.5+0.5/-0.4mm
4.4 Operating life: 100, 000 Cycles min
After decade of efforts, the Bosin products have been sent to over 100 countries, including rotary potentiometers, slide potentiometers, trimmer potentiometers, super-thin potentiometers, encoders and rotary switches, widely applied to computer/multimedia peripherals and various industrial fields. All products are RoHS compliant. For further improving the compatibility and making effort to our quality policy of "Keep Improving, Quality Assurance", the Bosin takes most advanced management mechanism and technologies that including computerized jigs and dies design, automatic assembly facilities and so forth. Now, the Bosin has the capability of producing over 1200 different kinds of hardware, 16 series with about 240 models of potentiometer to meet most of the requirement of the potentiometer market.
