Product Specifications
| Prod Model: |
IPPC-1728 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
IPC |
| Power Supply Type: |
ATX |
| Installation: |
Wall-Mounted |
| Application: |
Industrial |
| Accessories: |
All-steel Chassis |
| CPU Card Size: |
Itx Mother Board |
| Screen Size: |
17'' |
| CPU Type: |
Intel Atom N2800 Dual Core 1.8g |
| Case Type: |
Al-Alloy |
| Touch Screen: |
5 Wries Touch Screen |
| System Expansion Slot: |
Lpt |
| Hard Disk Rack Type: |
SSD16GB/32GB/HDD320GB/500GB |
Product Description
Main features:
17'' industrial panel PC with Intel N2800 dual core 1.8GHz.
SSD 16GB, DDR3 2G memory, Max up to 4GB (Optional)
With better design of Al cooling fin on back
Touch screen (Optional)
Introduction

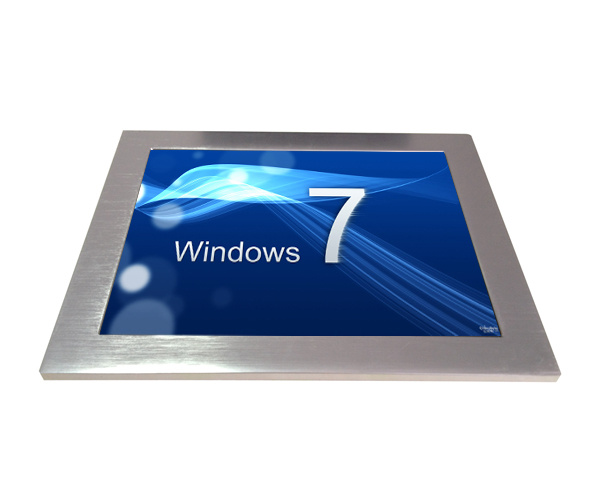

IPPC-1700C is an industrial panel PC with 17 high brightness LCD, the latest low-power motherboard, 16G SSD. It comes with 1*LAN, 4* USB ports, 2*COM, 1*VGA, 1*audio, 1*HDMI. Smart fanless-design. It has Installation methods: Panel type, wall-mounted, VESA standard etc. And The product structure is very compact and robust with better vibration and resistance.
IPPC-1700C is a cost-effective industrial grade panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring etc.
| CPU | Onboard Intel N2800 dual core 1.8Ghz |
| Chipset | Intel MN10 |
| Display | 17″high-brightness LCD screen |
| Screen | Chimei brand lcd screen |
| Resolution | 1280 × 1024, 300cd/m2 |
| Memory | DDRIII 2GB, up to 4GB |
| HDD/SSD | HDD:160GB; SSD: 16Gb/32Gb( Optional) |
| Audio interface | Line out, built-in GM3150 |
| Network interface | 1x 100/1000Mbps Ethernet controller |

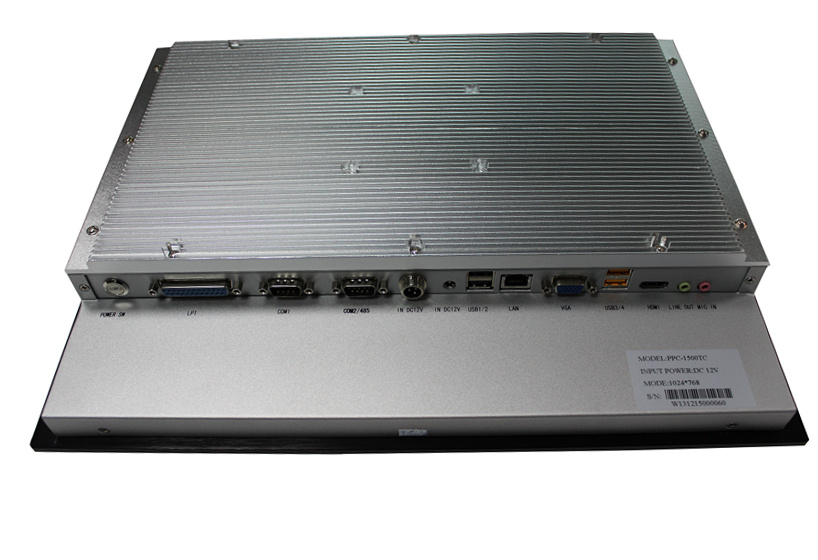

| I/O | 2×RS23 (1 supports 485/422) |
| 4×USB2.0 |
| 1xLine-out&Mic |
| 1xLPT |
| 1×VGA |
| 1xLAN |
| 1Xhdmi |
| Touch screen | 5wires Resistive touch (optional) |
| Power Supply | DC8-28V 5A power adapter,AC100V~265v 65HZ |

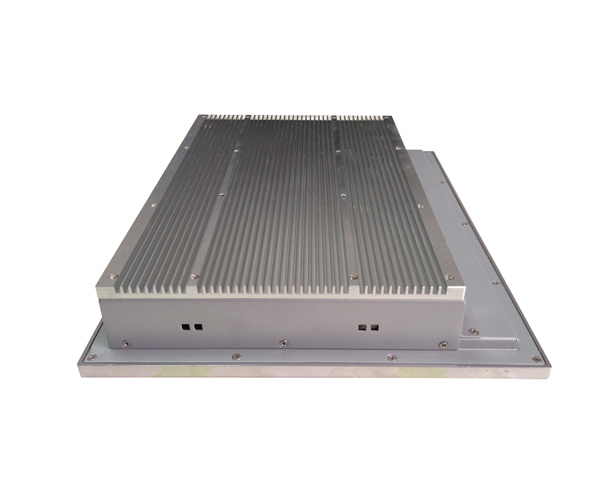

| Cooling | Al Cooling Fin on back of the chassis |
| Color | Silver/Black (Optional) |
| Fanless | Fanless design |
| Dimension | 419mm(L)×340mm(W)×68mm(H) |
| Installation | Panel type, wall- mount, table, bracket etc |
| Net weight | Abt 4.2Kg |
| Gross Weight | Abt 5.5Kg |
| Operating temp | -10ºC~50ºC |
| Humidity | -20ºC~60ºC |
