Product Specifications
| Prod Model: |
KI71P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Voltage: |
250V |
| Size: |
Miniature |
| Maximum Temperature: |
180centigrade |
| Rated Voltage: |
AC 120 / 240V ; DC 16 / 12V |
| Current: |
9A 16A 20A 22A |
| Usage: |
Motor, Transformer, Microwave Ovens |
| Leads: |
70mm |
| Speed: |
High-Speed Circuit Breaker |
| Certifications: |
UL/cUL, TUV,VDE, RoHS, CQC |
| Type: |
Temperature Swich |
| Structure: |
Compact Structure |
| Installation: |
with PTC, Manual Reset |
Product Description
Quick Detail:
1.2013 Hot thermal protector
2. Compact structure
3. Simultaneously sensing temperature
4. Certifications: UL/CUL, VDE, IEC, CB
Description:

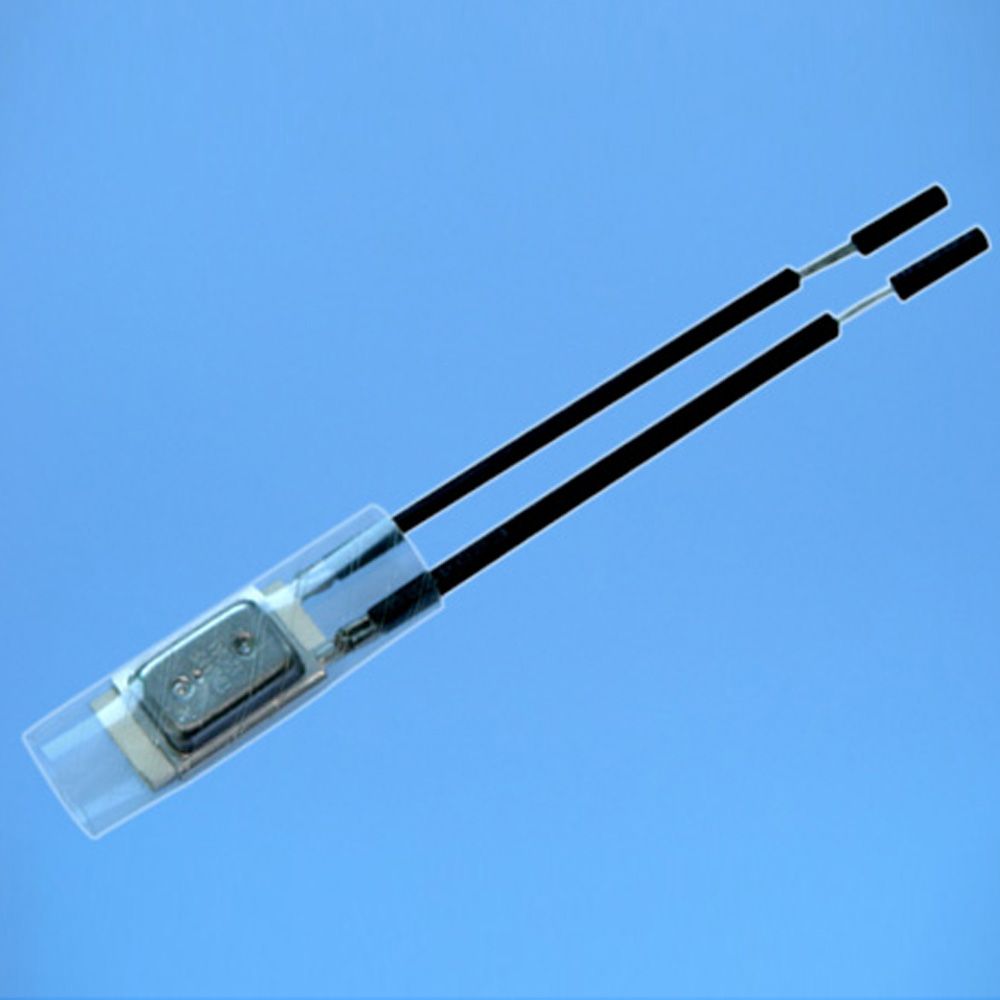

KI71P is relative compact designed and is operate with snap action which is sensed by current and temperature. Single-pole with contact opens when temperature range is reached. Short circuit caused by contacting metal parts can be eliminated by leading wire with insulation sleeve attached.
Applications:
KI71P is an excess-current thermal protector with compact in size. Main applications of KI71P are as follows: Motor/ ballast for fluorescent lamp/ Transformer, Laminator and various sort of household appliances.
Model:
|
KI-71P
|
Electrical Rating:
|
Rated voltage: AC 120 / 240V ; DC 16 / 12V
|
Current: 9A 16A 20A 22A
|
Action Temperature:
|
50 ~ 180centigrade |
Action Temperature Tolerance:
|
±5cetntigrade |
Differential:
|
≥8centigrade |
Contact Resistance:
|
≤50mΩ
|
Insulation Resistance:
|
≥100MΩ
|
Dielectric Strength:
|
AC50Hz1800V / 3s
No breakdown or flashover
|
