Product Specifications
| Prod Model: |
TA-PVKP2400-17dBi |
Product Description

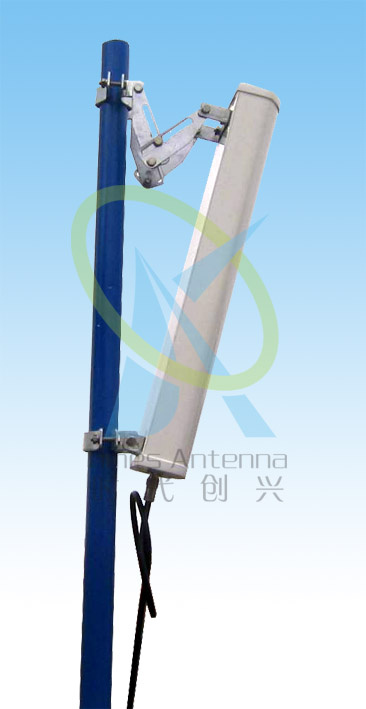

Model No.: TA-PVKP90-17dBi
Description:
TA-PVKP90-17dBi antenna is designed specially for the 2. 4GHz wireless access communication system. On inspection, it has the characteristic of excellent VSWR, high gain and large F/B Ratio. It also can restrain the side lobe effectively. So that it is able to cover the service area effectively and suppress disturbance from neighboring service area. The optimization design makes it easy to install. Covered by the high strength fiberglass, it is strong and has good performance as quakeproof, waterproof and antisepsis.
Every antenna is tested by the network analysis instrument strictly before delivery.
Specifications:
Frequency Range: 2400-2483MHz
Bandwidth: 83MHz
Gain: 17dBi
Beamwidth: 90deg
VSWR: ≤1.5
Nominal Impedance: 50ohm
Polarization: Vertical
F/B Ratio: ≥25dB
Max. Power: 100W
Connecter: N-50K Type
Dimension: 1220*180*80mm
Weight: 6kg
Rated Wind Velocity: 60 m/s
