Product Specifications
Prod Model: |
XK-450 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Rubber Fining Mixer |
Roll Working Diameter: |
450mm (18") |
Roll Working Length: |
1200mm |
Linear Velocity Of The Front Roll: |
24.26m/Min |
Friction Ratio Of Rolls: |
1:1.27 |
Max. Nip Of Rolls: |
15mm |
Feeding Capacity Per Batch: |
25~50kg |
Motor Power: |
55kw |
Overall Size(L * W * H): |
5200*2380*1840 |
Stock Blender: |
Optional |
Type: |
General Rubber Machinery |
Product Description

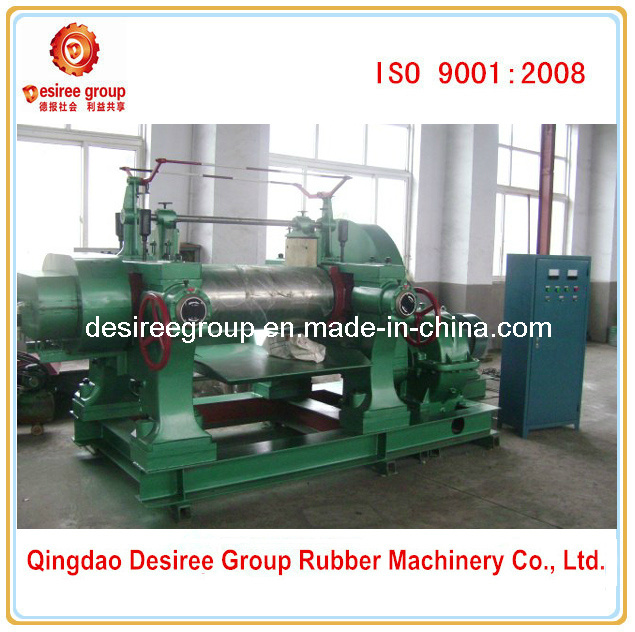

Rubber Fining Mixer /Open Mixing Mill / Rubber Mixing Mill / Rubber Refining Machine XK-450
Function:
Mainly for rubber warming, plasticating, mixing, and sheeting.
Features:
1. Rollers: Made of alloy chilled cast iron, hollow, with smooth surface after precision grinding processing.
2. Reducer: With hard-tooth gears. Noise is low, and using life is long.
3. Bush: Three types, nylon, copper, and roller bearing
4. Nip adjustment: Two types, manual and electric
5. Lubrication of roll: Two types, oil lubrication and grease lubrication
6. Emergency stop device: With emergency button and lever, to ensure the safety of operator and equipment.
Our Services:
1. One year warranty and lifetime technical suport.
2. Engineers available to service machinery overseas.
3. Any demand, we will give feedback within 24hours.
Quality Control:
BEFORE PACKAGE, LOAD TEST WILL BE CARRIED OUT, TO ENSURE THE CUSTOMER CAN USE THE MACHINE IMMEDIATELY AFTER INSTALLATION.
FAQ:
Payment:
1. T/T 30% deposit, balance before shipment.
2. Negotiable.
Contacts:
Telephone & Fax: 86-532-84130227
Mobile Phone: 18560603872
Any question, please feel free to contact with me.
Welcome to make a field inspection of our factory.
Model No. |
XK-450 |
XK-160 |
XK-230 |
XK-250 |
XK-360 |
XK-400 |
XK-560 |
XK-550B |
XK-660 |
Roll working diameter(mm) |
450 |
160 |
230 |
250 |
360 |
400 |
560/510 |
550 |
660 |
Roll working length(mm) |
1200 |
320 |
600 |
620 |
900 |
1000 |
1530 |
1500 |
2130 |
Linear velocity of the front roll(m/min) |
24.26 |
8.95 |
10.21 |
14.1 |
16.25 |
18.65 |
27.72 |
27.94 |
28.6 |
Friction ratio of rolls |
1:1.27 |
1:1.35 |
1:1.19 |
1:1.17 |
1:1.25 |
1:1.27 |
1:1.2 |
1:1.22 |
1:1.24 |
Max. nip of rolls(mm) |
15 |
4.5 |
7 |
8 |
10 |
10 |
15 |
15 |
15 |
Feeding capacity per batch(kg) |
25~50 |
1~2 |
6~10 |
8~15 |
20~25 |
18~35 |
35~50 |
50~60 |
165 |
Motor power(kW) |
55 |
5.5 |
15 |
18.5 |
30 |
37 |
90 |
110 |
245 |
Overall size: L * W * H (mm) |
5200*2380*1840 |
1380*860*1320 |
2800*1200*1120 |
3400*1500*1800 |
3780*1850*1750 |
4350*1850*1785 |
5845*2284*1978 |
5870*2475*2045 |
7465*3662*2080 |
