Product Specifications
| Prod Model: |
ARP-DP(1800-2600)-9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
240X 180X50mm |
| Color: |
White |
| Cover Material: |
ABS |
| Cable: |
Pure Copper Cable |
| Usage: |
Communication Antenna |
| Directionality: |
Directional Antenna |
| Operating Wavelength: |
Microwave |
| VSWR: |
<1.5 |
| Material: |
Steel Plate |
Product Description
ARW-DP(1800-2600)-9, microwave LTE Antenna is specially designed for 1800-2600MHz, dual frequency cellular mobile communication and WLAN wireless network indoor bestrew system. It features wide bendwidth, share with GSM, CDMA and WLAN system.
1. Designed for wireless access system, Point-to-point sent and receive signal
2. Good standing wave performance
3. Big F/B ratio, 1800-2600
4. OEM and ODM antenna are available
|

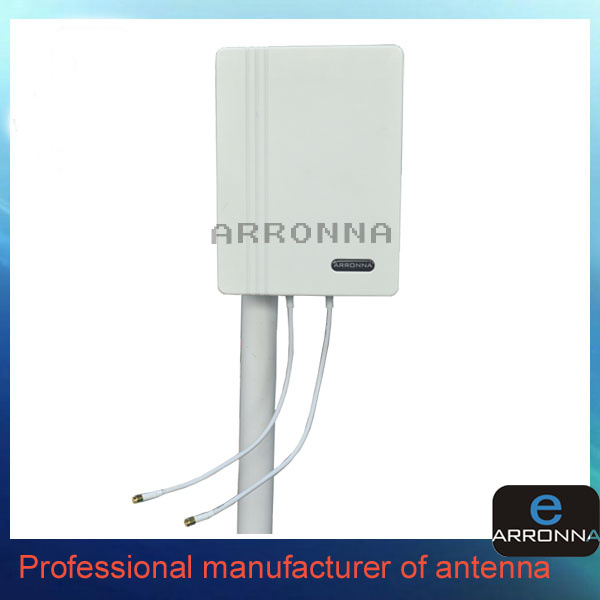

Product Name |
LTE 1800-2600MHZ MIMO Panel antenna |
|
Description |
ARW-DP(1800-2600)-9: The LTE Panel antenna is designed for wireless access system.
Which through optimization design and careful debugging with follow qualities:
good standing wave performance,high gain,broad band,strong structure,
own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation. |
|
Electric Specification |
|
Model NO |
ARW-DP(1800-2600)-9 |
|
Frequency Range-MHz |
1800-2600 |
|
Bandwidth-MHz |
800 |
|
Gain-dBi |
9 |
|
Horizontal Bear width-° |
70 |
|
Vertical Bear width -° |
65 |
|
VSWR |
≤1.5 |
|
Input Impedance -Ω |
50 |
|
Polarization |
Vertical and horizontal |
|
Maximum Power -W |
50 |
|
Connector |
2*N female or customized |
|
Mechanical Specifications |
|
Weight-kg |
1.5 |
|
Antenna Dimensions-mm |
240*180*50 |
