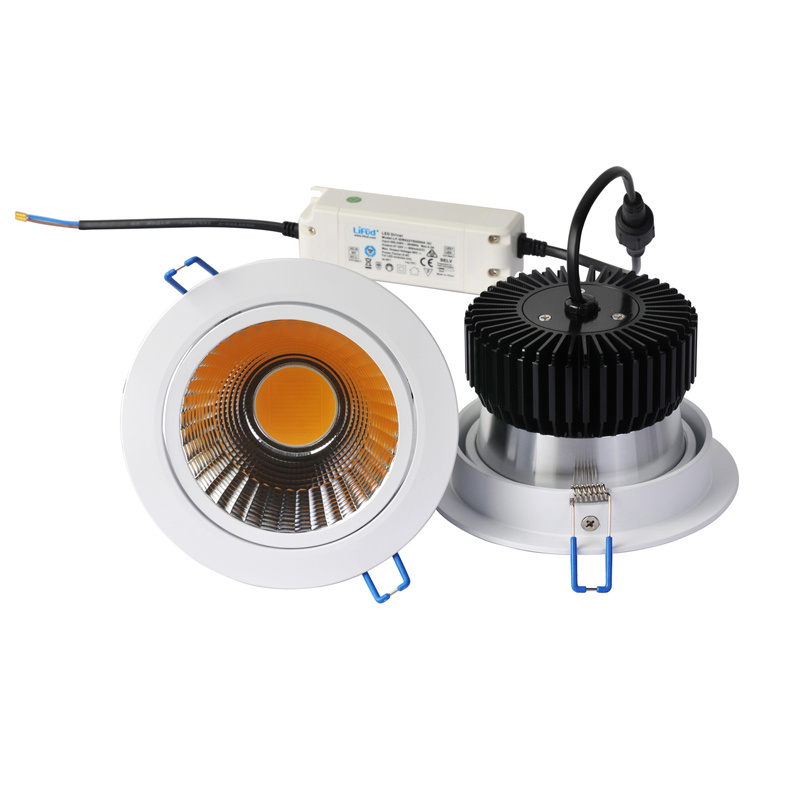

1800lm 20W COB LED Down Light with 3 Years Warranty

Product Specifications

Prod Model:	EW-SCL-20W-WW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Source:	LED
Type:	LED Down Light
Warranty(Years):	3
Working Temperature:	-20-50
View Angle:	30/60
Power:	20W
Size:	φ160*H109 φ140(Hole)
Model Number:	Ew-Dl20W-COB
Lamp Body Material:	Aluminum Alloy
Place Of Origin:	Guangdong, China (Mainland)
Light Source:	LED
Material:	Alloy
Source Number:	Single Plug
Installation:	Embedded
Application:	Home Furnishing

Product Description

Greenergy China led light factory High Power 1800lm AC100-240V 20w COB led down light

20W recessed LED Downlight

Products Features:
(1)LED Power: 20W.
(2)Lamp Consumption:22W.
(3)Output: 1800-2500lm(Ra80), 1550-2000lm(Ra90).
(4)CRI:> 80(max 95)
(5)SDCM:<4.
(6)CCT:2000-10000k available.
(7)Dimension:φ138*H96mm.
(8)Cutout: φ116-127mm.
(9)Beam Angle:30°/50°
(10)Input voltage:100-277vAC/180-270vAC, 50-60hz
(11)Color of housing: white, black, silver.
(12)Dimmable available: Triac/0-10v/DALI/Wi-Fi.
(13)Life span: 50,000+hrs.
(14)Certificate:CE/RoHS/SASO
(15)Warranty: 5 years.



Versions	Part No.	Color	CCT	Output(Ra80)	Output(Ra90)
Super brightness	EW-SCL-20W-WW	Warm White	2900-3200k	2200-2300lm	1800-1900lm
	EW-SCL-20W-NW	Natural White	3900-4200k	2300-2400lm	1900-1950lm
	EW-SCL-20W-CW	Cool White	5900-6200k	2400-2500lm	1950-2000lm
Normal	EW-NCL20W-WW	Warm White	2900-3200k	1850-1900lm	1600-1700lm
	EW-NCL20W-NW	Natural White	3900-4200k	1900-1950lm	1700-1750lm
	EW-NCL20W-CW	Cool White	5900-6200k	1950-2000lm	1750-1800lm
Economy	EW-ECL20W-WW	Warm White	2900-3200k	1800-1850lm	1550-1600lm
	EW-ECL20W-NW	Natural White	3900-4200k	1850-1900lm	1600-1650lm
	EW-ECL20W-CW	Cool White	5900-6200k	1900-2000lm	1650-1700lm

1.Recessed lighting, shelf lighting, ceiling/wall coves
2.Cabinet and under counter lighting, office work station
3.Back lighting, step lighting, light boxes
4.Merchandising, exhibition stands, and panels

Mainly Characteristics of LED Light

1, Energy & Power SavingCompare to the traditional incandescent light it can save more than 90% energy under the same

brightness.

2, Ultra-long Life Its using life is about 5-10 times of traditional incandescent light under normal usage conditions.

3, Ultra-low FeverSolid cold light source, epoxy resin encapsulation and little heating tube.

4, Healthy and EnvironmentalNo glare, no UV, no jumpy frequency, no mercury and no lead inside. It won't harm human health

   and the environment.

5, High CRIGood reducibility, clear visual effects and keep the objects undistorted.

6, Not Easily DamagedMade of aero aluminum material to keep it safe from long-distance transportation.


Service:
       1. Your inquiry related to our products or prices will be replied in 24hours.
         2. Well-trained and experienced staffs to answer all your enquires influent English.
         3. OEM & ODM are welcomed, OEM brand is available.
         4. Distributor ship is offered for your unique desigh and some our current models.
         5. Protection of your sales area, ideas of design and all your private information.

About us:
      We are LED lighting factory and have 10 years experience of development and
         production, our main product are: LED Back-lit panel lights, LED Tube lights, LED downlight
       LED Emergency driver,LED Tri-proof light,LED Ceiling light etc.
