1800W Heavy Power Dealing Amplifier Box Fp9000 Project Power Amplifier

Name: 1800W Heavy Power Dealing Amplifier Box Fp9000 Project Power Amplifier
Brand: china-manufacturer-directory.com
SKU: 756361535
Availability: InStock
Rating: 4.5 (44 reviews)

Supplier:	Guangzhou YunQiang Electronics Co., Ltd.
Price:	US $ 300-500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	FP-9000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
RMS Power:	1800W
Channels:	4 Channels
Circuit:	Class Td
Supply:	Switch Power Supply
Net Weight:	12kg
Type:	Professional Amplifier
Function:	Post Amplifier
Usage:	KTV System
Element Number:	Push-Pull Amplifier
Used For:	Professional
Tube Type:	Transistor Amplifier
Voltage:	90V to 130V,130V to 60V
Output Number:	2
Conductive Mode:	Td
Sound Channel:	4.0

Product Description

1600W heavy power dealing amplifier box FP9000 project power amplifier

FP9000

Channel number: 2 CH

8Ohm stereo, 1800W*2

4Ohm stereo, 3000W*2

2Ohm stereo, 4500W

8Ohm bridge: 6000W

4Ohm bridge: 9000W

Gain: 23, 26, 29, 32, 35, 38, 41, 44 dB selectable

THD+N: <0.1%

THD: <0.05%

S/N ratio: >112dB

Crossover: >70dB

Frequency: 6.8Hz-34KHz

Input impedance: 20Kohm

Gain selecrable: 23,26,32,35,38,41,44dB

Input connector: XLR

Output connector: Neutrik speakon

output bridge modeL A+B-CH: A is input source, A+B, C+D -CH: A,C is input source

Cooling: 2 fans, front to rear airflow, temperature control

Size: 483*88*398mm
Net weight:12Kg

Gross weight: 15kg

1pc sample accepted

welcome OEM, warranty 2 year

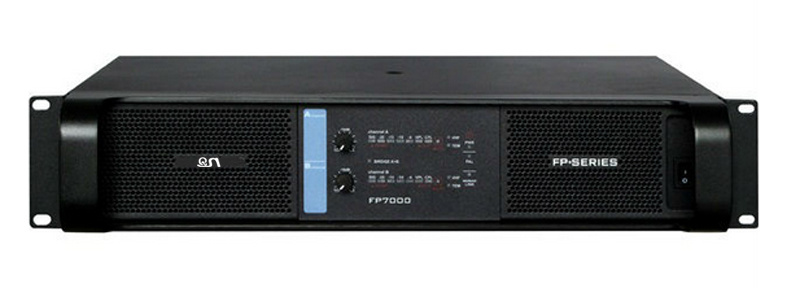

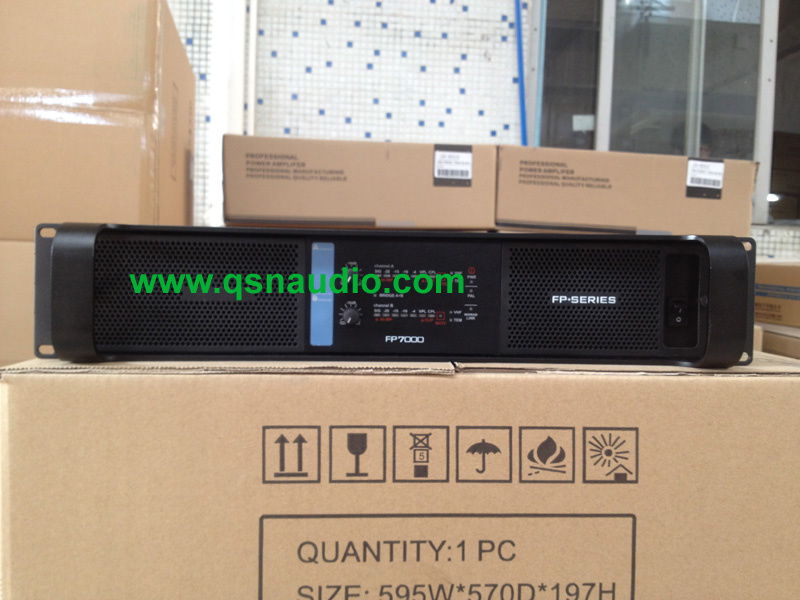

Front Panel:

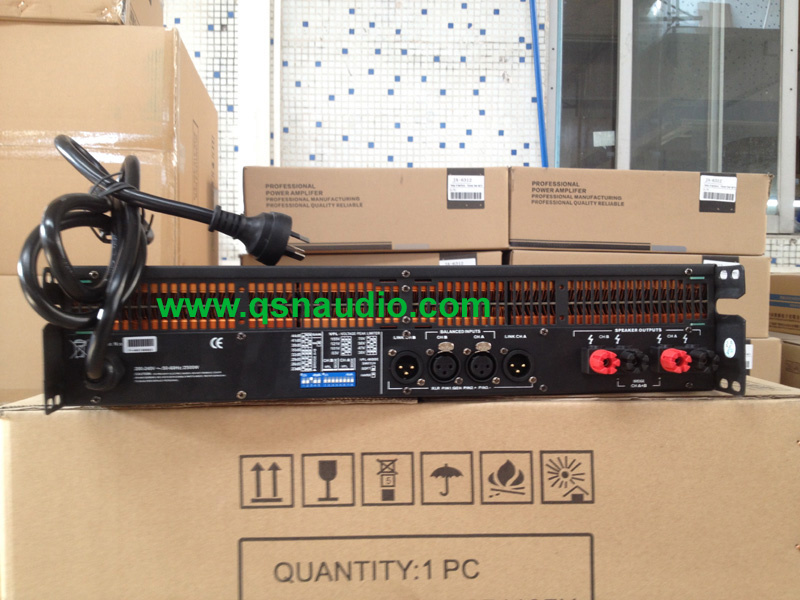

Back Panel

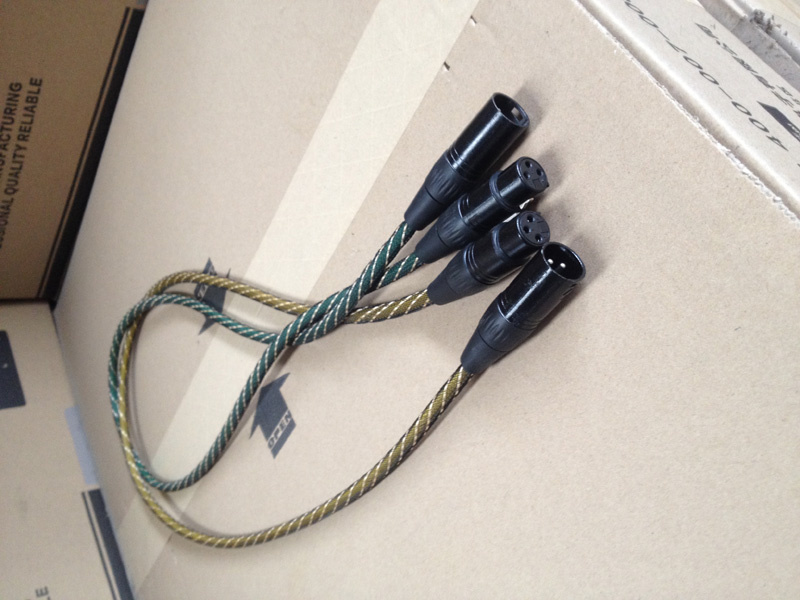

High Grade XLR 3 pins wire

P+ series Switching Power Amplifier Specification
ITEM	FP7000	FP9000	FP14000	FP8000Q	FP10000Q
Output Power	20-20kHz, 1W with 1 khz
8ΩStereo Power(RMS)	1500WX2	1800WX2	2350WX2	800WX4	1350WX4
4ΩStereo Power(RMS)	2800WX2	3000WX2	4400WX2	1400WX4	2100WX4
2ΩStereo Power(RMS)	3500WX2	4500WX2	7000WX2	1600WX4	2500WX4
8ΩBridged Power(RMS)	5600W	6000W	8800W	2800WX2	4200WX2
4ΩBridged Power(RMS)	7000W	9000W	14000W	3200WX2	5000WX2
Frequency Response(+o/-0.3dB,1W/8Ω)	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W	<0.1%
Signal-to-Noise Ratio	>112 dBA
Channel separation (Crosstalk) at 1 kHz	>70 dB
Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Binding Posts 2-pole
Class	TD
TourClass Protection	ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal	130-265 V / 65-135 V
Voltage Gain(dB)	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance	20 kOhm
Level adjustment (per ch.)	Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)	483×88×396mm
Packing dimension	560×180×500mm
Net weight(kg)	12
Gross weight(kg)	15

Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,

The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.

Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.

To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.

Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.

Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
