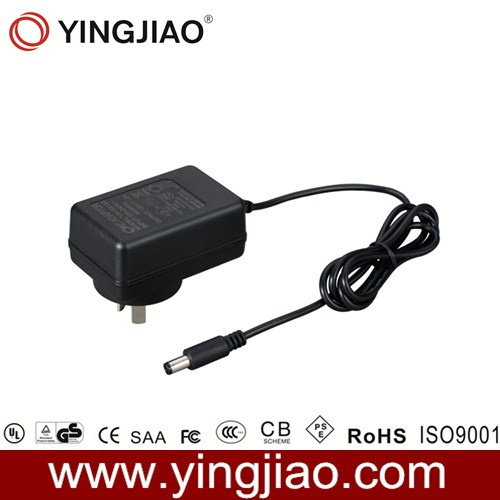

18W AC Medical Power Supply
Product Specifications
| Prod Model: |
YS16 series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Range: |
12-20W |
| Rated Power: |
18W |
| Input: |
100-240V AC 47-63Hz |
| Dimension: |
70X45X30mm |
| N.W.: |
120g |
| Output Type: |
AC |
| Connection: |
Plug In |
| Usage: |
Phone |
| Brand: |
Yingjiao/OEM/ODM |
Product Description
We are a professional manufacturer of wall mount power adaptor/plug-in adaptor, switching power supply, AC adaptor, AC/DC power adaptor, and desktop switching power adaptor/SMPS, etc. For over 10 years.
Model: YS16 series
Universal Input: 100-240V AC 50/60Hz
Rated Power: 19W max.
Sample Output Specifications:
Model / Output Load Voltage (V) / Max. Load Current (A)
YS16-XX360 / 36 / 0.50
YS16-XX280 / 28 / 0.60
YS16-XX240 / 24 / 0.75
YS16-XX180 / 18 / 1.00
YS16-XX150 / 15 / 1.25
YS16-XX138 / 13.8 / 1.15
YS16-XX120 / 12 / 1.60
YS16-XX090 / 9 / 2.00
YS16-XX075 / 7.5 / 2.00
YS16-XX060 / 6 / 3.00
YS16-XX050 / 5 / 3.00
YS16-XX045 / 4.5 / 3.00
XX-represent rated output power
Features:
Safety: UL / cUL / TUV / GS / CE/ CCC compliance
RoHS Compliance
High efficiency & low power consumption
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
Mechanical:
Dimensions: 70mm (L)*45mm (W) *31mm (H)
N. W.: 90g
AC Plug: European two round pins or American two flat pins
Output plug: Optional
| Range | 12-20W |
| Rated Power | 18W |
| Input | 100-240V AC 47-63Hz |
| Dimension | 70x45x30mm |
| N.W. | 120g |
Yingjiao Electrical Co., Ltd., established in 1996, is a leading manufacturer and exporter of switching power adapters, linear AC/DC adapters, transformers, chargers, car chargers, power cords, tripods, etc. We can also design and manufacture power supply products with specifications according to the various demands of different customers.
Located in Ningbo, a coastal city in East China, we possess a convenient location and transportation facility. With an area of 15000 square meters, we have about 800 skillful employees. Being exported to Europe, America, Japan, Australia, and many other countries and regions, our products have won good comments from our customers.
We have a strict quality control and guarantee system and have been ISO 9001: 2000 and SGS certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese quality certification center. Besides, we also carry out the international authoritative certifications, such as UL, cUL, TUV, CSA, and GS.
We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.
ODM/OEM partners are welcome too.
Business Type: Manufacturer/Factory
Business Range: Computer Products,Consumer Electronics,Electrical & Electronics,Health & Medicine,Lights & Lighting,Security & Protection
Number of Employees: 185
Management System Certification: ISO 9001
International Commercial Terms: FOB, CIF, CFR
Terms of Payment: T/T, Western Union
Average Lead Time: Peak season lead time: one monthOff season lead time: one month
Number of Foreign Trading Staff: 21~50 People
Export Year: 2003-08-08
Export Percentage: 71%~90%
Main Markets: North America, Europe, Others
Export Mode: Have Own Export License
Factory Address: Cuijia,Xidian Town,Ninghai,Ningbo,China
R&D Capacity: OEM, ODM, Own Brand(Yingjiao)
No. of R&D Staff: 21-30 People
No. of Production Lines: Above 10
Annual Output Value: US$10 Million - US$50 Million
