Product Specifications
| Prod Model: |
FLFP-18700E1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Flat Battery |
| Usage: |
Electric Power |
| Type: |
LiFePO4 |
| Nominal Voltage: |
19.2V |
Product Description

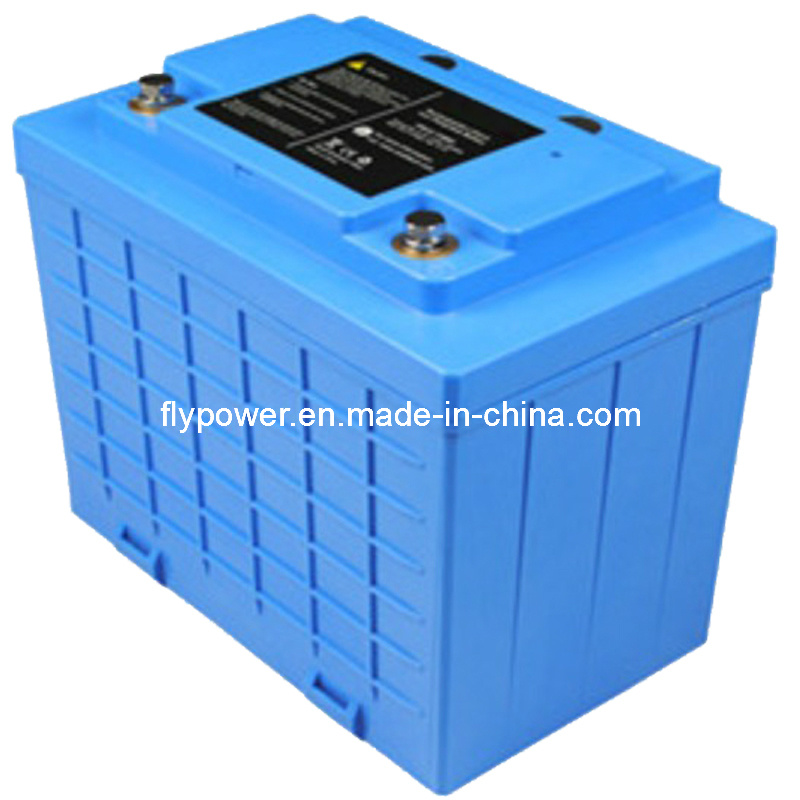

1. Model: 19.2V 70Ah LiFePO4 Battery Module pack (FlyPower model FLFP-18700E1).
2. UN, RoHS, CE approved Polymer Li-ion Battery pack.
3. LiFePO4 Battery pack OEM orders are welcomed.
4. Customizes shapes, capacity, and voltage are accepted.
5. Individual cells can be assembled in parallel or series into stacks as required by customers.
Feature
1. Safety: Currently the safest Li-ion battery, CE UL approved, none fire, none explosive
2. Environment friendly, no toxic material contained.
3. Powerful: P type battery can discharge in 15C-20C.
4. Low self discharge: ≤ 3%(monthly).
5. Long life cycle, more than 2000 cycle in 0.5C-1C discharge
6. No memory effect: Can be recharged any time, no reduction of capacity.
7. Broad operation temperature -20---60 centigrade.
8. Small in size and light in weight.: Compare with our battery, 1/2 size of lead acid battery, 70% size of Ni-MH Ni-CD battery, 1/2 weight of lead acid battery.
Application
1. Electric Vehicle: Hybrid Electric Vehicle, Pure Electric Vehicle;
2. Ebike, Escooter, Electric Golf Cart, Electric Tools, Lawn Mower, Vacuum Cleaner. Electric boat, Elevator, Electric Wheelchair;
3. UPS: For computer, Emergency Application, Medical Movable UPS;
4. Solar Energy: Solat street lights, Solar LED Lights
5. Telecom System: Communication Base.
|
Item |
FLFP-18700E1 |
|
Nominal Voltage |
19.2V |
|
Nominal Capacity(0.5C) |
70Ah |
|
Dimensions Including Terminals(L*W*H) |
260*158*246mm |
|
Approximate Weight |
14.9Kg |
|
Specific Energy |
90Wh/kg |
|
Standard Discharge |
Max. Constant Current |
100A |
|
Max. Pulse current(30S) |
200A |
|
Cut-off Voltage |
15.0V |
|
Standard Charge |
Charge Voltage |
21.9V |
|
Max. Constant Current |
35A |
|
Charge Time |
2.5hrs |
|
DC Internal Resistance (Approx.) |
15mΩ |
|
Water/Dust Resistance |
IP56 |
FLFP-18700E1 Battery Module Main Features:
1. Modules communicate via RS485 by BMU(Battery Management Unit).
2. Inter-module & intra-module balancing via BMU.
3. Enhanced SOC calculation via BMU.
4. Charge and discharge control via BMU.
5. Temperature monitor via BMU.
6. Isolation measurement via BMU.
7. Easy installation up to 60KWh system in series & parallel.
8. Rugged mechanical and easy handling design.
9. Built in LED battery status indicator.
10. Can be charged with most lead-acid chargers.
11.Thousands of cycles under normal conditions. |
