Nanjing Super Lighting Technology Co., Ltd. >> 19inch Embedded Computer for Industrial Panel

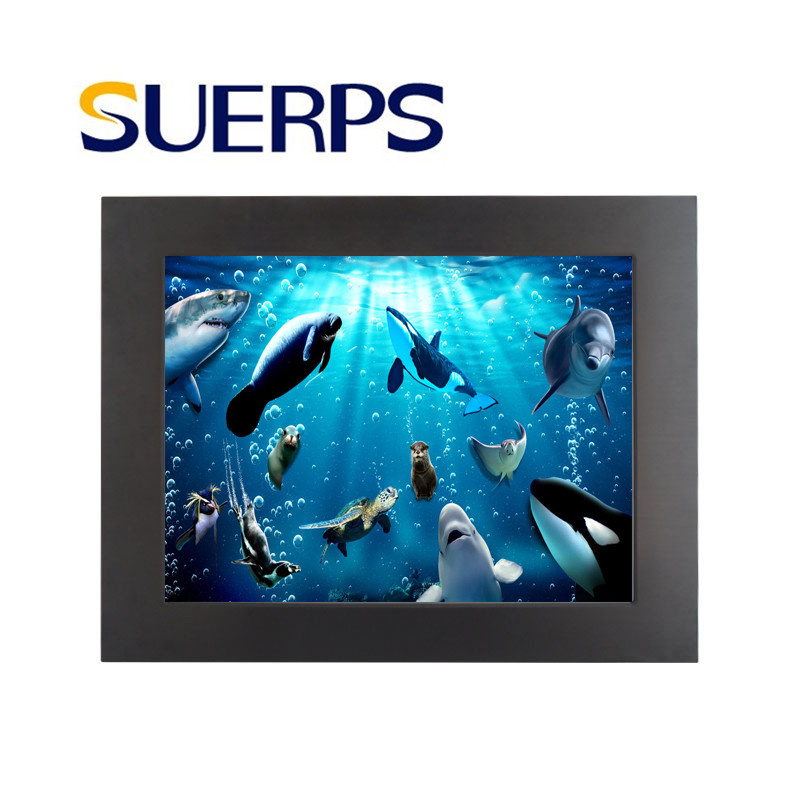

19inch Embedded Computer for Industrial Panel

Name: 19inch Embedded Computer for Industrial Panel
Brand: china-manufacturer-directory.com
SKU: 751439115
Availability: InStock
Rating: 4.6 (86 reviews)

Supplier:	Nanjing Super Lighting Technology Co., Ltd.
Price:	US $ 700-800/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	SUERPS19
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	9.5kg
USB:	6* USB2.0
COM:	2*RS232
Resolution:	1280(RGB)X1024(Xga)
Working Environment:	-30c_80c, 0-90 Ambient Humidity
Hard Disk Capacity:	32g
Memory:	2GB
CPU Core:	Dual-Core
Operating System:	Windows
Type:	IPC
Screen Size:	16-20''
CPU Type:	Core Duo
Power Supply Type:	ATX12V
Touch Screen:	Touch Screen
System Expansion Slot:	7 Slot
Hard Disk Rack Type:	Board Type
Installation:	Wall-Mounted
Application:	Industrial

Product Description

Model:SUERPS 19

Type:Intel Ivy Bridge four Core Industrial Panel Computer

Features
? IP65 Waterproof Level
? High Luminance Led Panel (400 nits)
? Intel C1037U 1.80GHz Processor
?19"XGA1280 x1024Resolution Color TFT Led Display
? Ultra Slim and Compact Mechanical Design
? Supports Wide Range DC Power Input (9-30V)
? Wireless 3G/WIFI/GPS Can Be Customized

Specification

Processor	CPU	Intel C1037U 1.80GHz
	Cache	Intel NM70
	Memory	1*SO-DIMM,DDR3 1333\1066MHz Memory
	Graphics Card	GMA 3600 ,640MHZ
	Storage	Supports MSATA and Inner SATA2.5''
	LAN	2×(RJ-45),10/100/1000 Mbps
I/O	Serial Ports	2×RS-232,(Extensible 5xRS-232,Supports RS485 ,Can be Customized)
	USB Ports	Outer2×USB,Inner4×USB (extensible)
	I/0	1 x HDMI,1 x VGA
	Audio Interface	1 x Mic,1 x Line-out
		1 x DC Port,1 x ON/OFF
		1 x Mini-PCIE,1 x Mini-SATA
Weight	Net(kg)	8.9
Weight	Gross(kg)	9.5
Size	Overall Dimension(L×W×D)	485×410×63.7
Size	Installation Dimension(L×W)	455.4×380.4
System	Windows XP,Windows XP Embedded,Win7,Win8,Linux ,etc
Power Supply		DC 9~30V
LCD Display	Type	19 Inch a-Si TFT-LCD
	Panel Type	M150XN07 v2
	Max Resolution	1280(RGB)×1024(SVGA)
	Display Color	262K(6-bit)
	Contrast	500:1(Typ.)(transmission)
	Visual Angel	60/60/35/65(Typ.)(CR≥10)(L/R/U/D)
	Luminance	400 cd/m2 (Typ.)
	Response Time	10/25(Typ.)(Tr/Td)(ms)
	Pixel Pitch	0.264×0.264mm
	Backlight	LED
Touch Panel	Type	5Wire Resistive(AMT)
	Resolution	Continuous
	Optical Conduction	80%
	Controller	USB Ports
	Durability	35 Million Times
Environmental Parameter	Working Temp	-40ºC~80ºC
	Working Humidity	10~95%RH@ 40ºC,Non-Condensing
	Shock	10 G (11ms,Non-Operating)
	Vibration	10 G
	Certification	CE,FCC,ROHS

Nanjing Super Lighting Technology CO. Ltd is a professional industrial tablet PC enterprise who engaged in tablet PC and PC parts. Our Company was founded in 1999, the mainstream products are 7inch industrial PC, 8inch industrial PC, 10inch industrial PC, 15inch industrial PC and so on. We have two Production base in Nanjing and Shenzhen and 20 offices nationwide.

There is a Professional technical team with strong researching ability and high development level in our work group. We have researched many kinds of products independently and got a number of national patents. We put customer' S needs first. Honesty is our core spirit. Good service and excellent product quality made us win many domestic customers' Praise. We formed a long-term cooperation relationship with TOP100 advertising companies in China. SUERPS spread all over China and many other countries in Africa and Southeast Asia.

" technical lighting, energy saving first" is SUERPS' S changeless purpose. We believe that a small daily improve will create a big clean earth. Come on, join in SUERPS. We will be your most loyal partners!
