Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| IP Degree: |
IP67/Ik09 |
| Diameter: |
19mm |
| Button Material: |
Stainless Steel/Nickel Plated Brass |
| Main Body Material: |
Stainless Steel/Nickel Plated Brass |
| Front Shape: |
Flat Round |
| Contact Configuration: |
1no1nc/2no2nc |
| Operation: |
Momentary / Latching |
| LED Color: |
Red, Blue, Green, Yellow etc |
| Electrical Life: |
More Than 200, 000cycles |
| Life Test: |
More Than 1000.000 Cycles |
| Type: |
Composite |
| Usage: |
Control Button |
| Kind: |
Double-pole on-off Switch |
Product Description

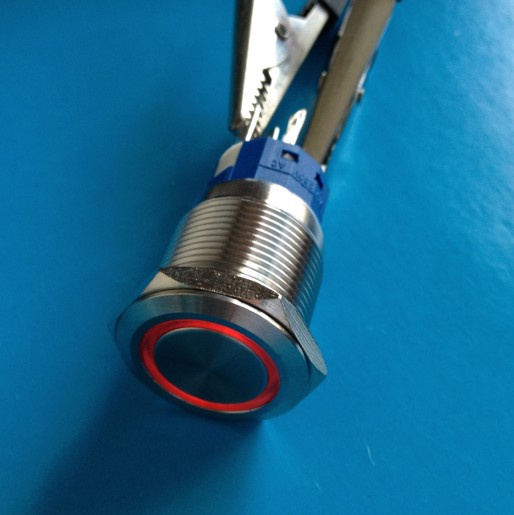

19mm momentary stainless steel LED push button switch
Introduction:
1. Momentary, means that when you push switch and then move your finger the actuator will back to the original position.
2. Latching, means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.
3. Vandalproof switch/ illuminated metal pushbutton switch/ stainless steel pushbutton switch.
4. LED illumination & engraving available, 6V, 12V, 24V, 36V, 48V, 110V, 220V are available.
5. Panel cutout: Dia. 12 to dia. 25mm available.
6. Body color: Silver color, gold-plating, black body.
7. EXW price and guaranteed quality.
