Product Specifications
| Prod Model: |
CXX619 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Weight: |
20t |
| Type: |
Wheel Excavator |
| Size: |
Large-Scale |
| Condition: |
New |
| Certification: |
ISO9001: 2000 |
Product Description

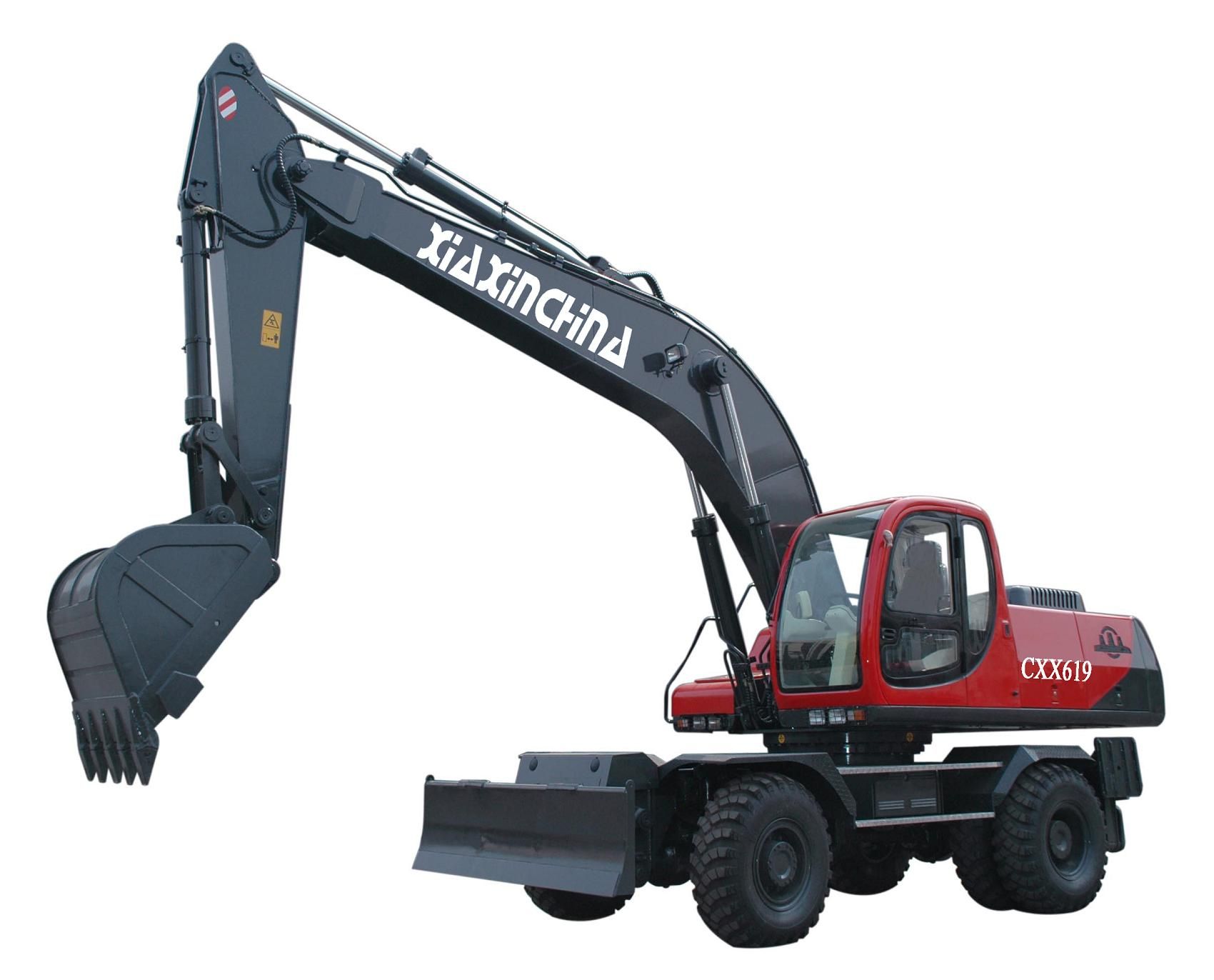

19Ton wheel excavator CXX619
Bucket capacity: 0.8CBM
Imported cummins engine
Imported Kawasaki hydraulic parts
KYB travel motor
|
Operating Weight(Tons) |
20 |
Hydraulic Flow Rate(L/min) |
2×195 |
|
Standard Bucket Capacity(m3) |
0.8 |
Hydraulic Pressure(Mpa) |
30 |
|
Range of Bucket Capacity(m3) |
|
Travelling Speed(km/h) |
28 |
|
Diesel Engine Manufacturer |
Cummins |
Grade Climbing Capacity(%) |
40 |
|
Engine Model |
6BT5.9-C |
Slewing Speed(r/min) |
12.5 |
|
Engine Power(KW) |
108 |
Stick Digging Force(KN) |
95 |
|
Hydraulic System |
|
Bucket Digging Force(KN) |
120 |
Dimensions:
|
A |
Overall Length(mm) |
9515 |
|
B |
Overall Width(mm) |
2715 |
|
C |
Overall Height of Boom(mm) |
3860 |
|
D |
Overall Height of Cab(mm) |
3060 |
|
E |
Engine Cover Height(mm) |
2630 |
|
F |
Counterweight Clearance(mm) |
1360 |
|
G |
Ground Clearance(mm) |
300 |
|
H |
Upperstructuer Width(mm) |
2685 |
|
I |
Rear-End Lenghth/Swing Radius(mm) |
2845 |
|
J |
Wheelbase(mm) |
2960 |
|
K |
Qverall Width of Blade (mm) |
2400 |
|
L |
Qverall Height of Blade (mm) |
630 |
|
M |
Front Overhang(mm) |
1425 |
|
N |
Overall Width Outrigger Extended (mm) |
3780 |
|
O |
Rear Overhang(mm) |
1094 |
Operating scope:
|
|
Stick Length(mm) |
2400 |
|
A |
Maximum Cutting Height(mm) |
9610 |
|
B |
Maximum Dumping Height(mm) |
6635 |
|
C |
Maximum Digging Depth(mm) |
5970 |
|
D |
Maximum Reach(mm) |
8860 |
