Product Specifications
| Prod Model: |
BG-PVBTR1A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Video Transmission |
Product Description

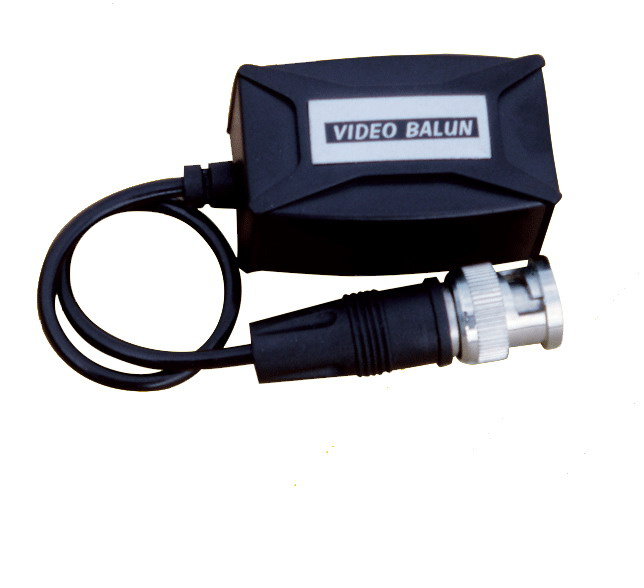

1CH Passive CCTV Video Balun UTP balun Twisted pair Video Trasmitter
Housing: Black anti flaming ABS
Power supply: No need
Input/Output: BNC, wiring terminal
Transmission distance: 0-600mts
Surge protection: Built in
Frequency response: DC to 6MHz
CMRR.: 0 to 6MHz, 60dB
Impedance: 100 Ohm
Wire type: Unshielded Twisted Pair 24-16AWG
Wire Cat. Cat. 5 or better
Measurement: 47mmX28mmX21mm
Operation Temperature: -40~70degree
Changzhou Big CCTV Technology Co., Ltd., is a professional manufacturer that specialize in researching, developing and producing of CCTV products. We are promoting our CCTV products internationally, including the high speed dome camera, IR camera, IP camera, DVR, Control keyboard. And we will release many new items every year.
Our products have successfully applied to bank, electric power, and transportation, coal mine, water conservancy supervision, campus supervision, public place and so on.
It is a new company but we have many years experience of export through our export agent and have good reputation from our customers. We will offer our quality products and services to all of our customers as we always did.
We warmly welcome all potential and existing clients to send us specifications and requirements, Pls. Feel free to contact us with any questions or inquiries that you may have. We sincerely look forward to hearing from you
