Product Specifications
| Prod Model: |
HR-1DC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CATV Smart Receiver: |
Fiber to Home |
| Frequency Range: |
47-1002MHz |
| Optic Input: |
-12~+2dBm |
| Output Level: |
20dbmv |
| Optic Agc: |
Option |
| Surge Withstand: |
6kv |
| Test Port: |
Support |
| Wiring Devices: |
DDF |
| Certification: |
RoHS |
| Condition: |
New |
| Type: |
Optical Receiver |
Product Description
FTTH Optic mini receiver

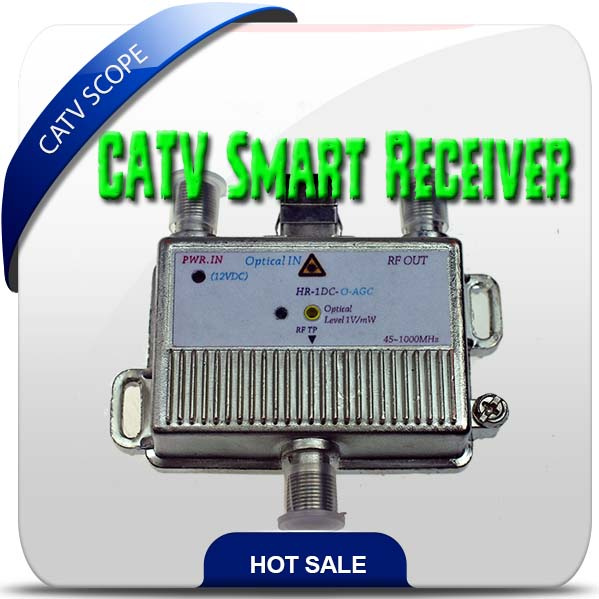

HR-1DC is a latest designed mini Optic Receiver, working range:47- 1002MHz for RF, -12 to +2dBm for Optic, RF Output level: 20dBmV (80dBuV)@0dBm, adopted the die-cast all-aluminum housing, features high oxidation resistance, Power port, RF port and Test Port all use the F-female type (3/8"-32HTD) connector, easy to connecting, and all are able to afford 6kV (Surge withstand), the Fiber Optic Interface is SC/APC, FC/APC or specified by user. The unit also easily tests the input optic power level by probing the Touch Point on the top-face.
Features
1200 to 1600nm
47to1002MHz
-13 to +2dBm
Up to 84dBuV (RF out)
Optic AGC option
Surge withstand 6KV
Specifications
Optic link Path |
|
|
|
Wavelength |
nm |
1200~1600 |
|
Input power |
dBm |
-13 |
|
2 |
|
State Display |
Green |
Optic power≥-6dBm |
LED |
Red |
Optic power<-6dBm |
Optical Return Loss |
dB |
|
52 |
|
|
Forward RF Path |
|
|
|
|
|
Parameter |
Unit |
Min |
Typical |
Max |
Note |
Frequency range |
MHz |
45 |
|
1002 |
Node1 |
Flatness |
dB |
|
±0.5 |
±1.0 |
|
Output Level |
dBmV |
|
20 |
|
Note2 |
CNR |
dBc |
|
51 |
|
Note2 |
CSO |
dBc |
|
-65 |
|
Note2 |
CTB |
dBc |
|
-70 |
|
Note2 |
CM |
dBc |
|
-70 |
|
Note2 |
Return loss |
dB |
|
16 |
|
F type 75Ω |
General |
|
|
RF ports |
F-shape 75Ω |
|
Optic connector |
SC/APC or FC/APC |
|
Operate temperature |
-10~40°C |
|
Power supply |
12VDC280mA |
By power adapter |
Surge withstand |
0.5µs-100KHz ring wave 6kV/200A |
RF IN/OUT ports |
Measurement |
85×75×24 mm |
|
Note:
The Frequency range of transmitter same to1002MHz.
OMI be 3.5%/ch and Optic input 0dBm;
RF AGC is option
