Shenzhen ZLPOWER Electronics Co., Ltd. >> 1kVA-20kVA USV SAI UPS Online Uninterruptible Power Supply with LCD Display 192VDC Input, MCU DSP UPS with DC Start Fonction and Pfc Revise (USV SAI UPS)
1kVA-20kVA USV SAI UPS Online Uninterruptible Power Supply with LCD Display 192VDC Input, MCU DSP UPS with DC Start Fonction and Pfc Revise (USV SAI UPS)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Money Gram,Western Union |
6kva single phase LCD display smart RS232 communication high frequency online ups
1. Uninterruptible power supply 6kVA, 10kVA, 15kVA, 20kVA
2. USV SAI UPS power system
3. LCD Digital display
4. Parallel N+X

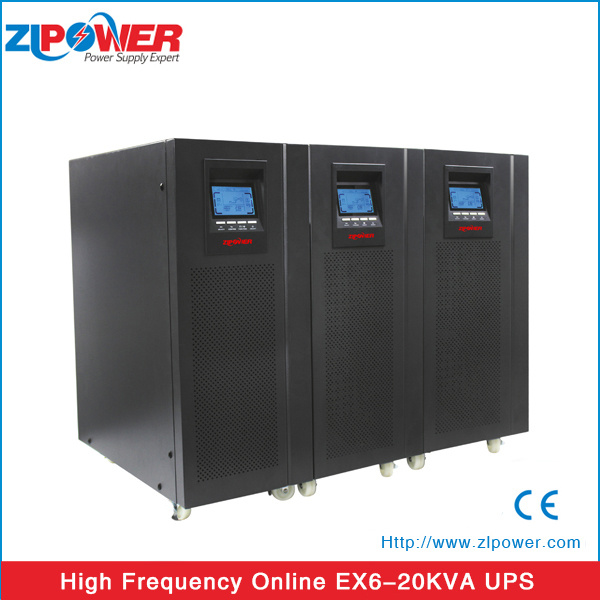

No breaks UPS SAI USV 6kVA/4800W-20kVA/14KW
High Frequency Online Uninterruptible Power Supply
Double conversion UPS power supply
LCD display show voltage, battery, load info in real time.
2years warranty
N+X Parallel Redundancy
Introducation
EX6K-EX3120KL Online UPS power system, adopts the double conversion online architecture ideal for resolving all issues on power supply. This state-of-the-art solution is especially designed for eliminating the power loss, extra high or low voltage of utility power, voltage sags or damped oscillation, high-voltage pulse, voltage fluctuation, surge voltage, harmonic distortion, clutter immunity, and frequency fluctuation etc., delivering safe and reliable power supply guarantee for user's load.
| Model | EX6K | EX6KL | EX10K | EX10KL | 3EX10KL | 3EX15KL | 3EX20KL |
| Capacity | 6KVA/4800W | 10KVA/8000W | 15KVA/12000W | 20KVA/16000W |
| Input | Nominal Voltage | 220V | 380V |
| Voltage Range | 176~276VAC | 304~478VAC |
| Frequency | 46~54Hz/56~64Hz (adjustable via LCD panel) |
| Output | Voltage | 220/230/240 (1±1%)VAC (Adjustable via LCD panel) |
| Frequency | 50/60Hz (adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode:50Hz(1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1±0.2%) |
| Current Crest Ratio | 3:1 |
| Output Wave Form | Sine Wave |
| Back-up Time | Full Load | ≥7′ | Depends on the capacity of the external batteries bank | ≥5′ | Depends on the capacity of the external batteries bank |
| Half Load | ≥20′ | ≥13′ |
| Battery Nominal Voltage | 192VDC |
| Transfer Time | 0ms |
| Overload Capacity | 105%~130% 10min, over 150%1min |
| Communication | RS-232+Intelligent Slot |
| Operating Environment | Temperature | 0C~40C |
| Humidity | 15%~90% |
| Dimensions (W*D*H)mm | 260*570*717 |
| Net Weight (Kg) | 90 | 35 | 93 | 38 | 39 | 55 | 55 |
| Prod Model: |
USV SAI UPS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Factor: |
0.8 and 0.7 Selectable |
| Color: |
Black and White |
| Display: |
Digital LCD and LED Dis[Lay Optional |
| Remote Control: |
Snmp Card and RS232 |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overcurrent |
