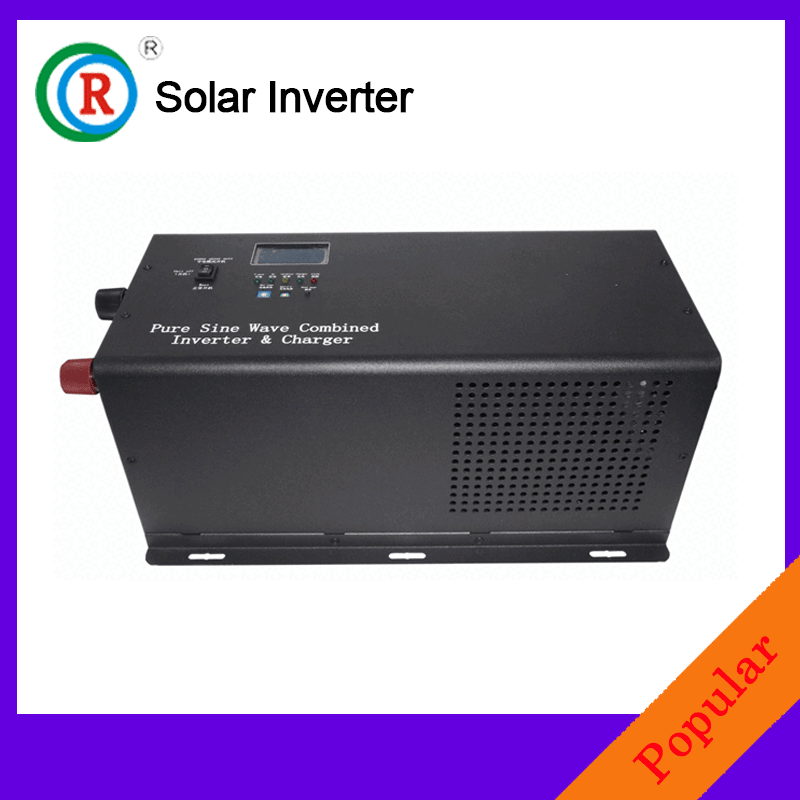

1kw Power Frequency LCD Screen Power Inverter DC to AC

Product Specifications

Prod Model:	INV-A1-1000W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Grade:	High -Quality/Intelligent Control
AC Output:	100V-240V
Charge Current:	Max 70AMP
Capacity:	300W-30kw
Output Wave Type:	Pure Sine Wave
Warranty:	One Year Plus Life-Time Service
Delivery Time:	1-3 Working Days
Power Source:	Electric Power
Type:	DC/AC Inverters
Phase:	Single
Output Power:	>1000W
Brand:	Oro

Product Description

The core advantages:


-1- Latest technical inverter,
-2- All wire are compeletely copper
-3- Circuit board with three section(Dust, Insect, moisture proof)
-4- CPU intelligent management,
-5- Adopted best electric components, stable quality, long-life,
-6- The high conversion efficiency( 90%-99%),
-7- Low power consumption, 1W~6W under sleep state.

Introduction:

1. Through the inverter power supply, 12V/24V / DC48V DC battery can be converted into 110V/220V AC Alternating Current, Used to power the load;

2. Solar power system consists of solar panel, Solar charge controller, inverter, battery and other components;

3. Can be divided into several types: Only the converter, Give priority to the use of solar energy, Give priority to the use of AC; Solar power generation system for DC12V or DC24V or DC48V;




Protection:

High voltage protection
Under-voltage protection
Over-temperature shutdown
Automatic overload protection
Short-circuit protection


Features:

(1) Pure sine wave output

(2) Built-in transfer switch automatically transfers between inverter power and incoming AC power

(3) CPU management, intelligent control, module design

(4) LED/LCD display function

(5) High conversion efficiency (between 90%-98%), low consumption

(6) Can match with various battery types, such as sealed lead acid battery, open lead acid battery, gel battery and different types of lithium batteries.

(7) Three- step intelligent charging mode available.
-Able to charge various types of battery
-Maximum charging current is adjustable
-Can be use as a charger

(8) Also called a dynamic inverter, due to the advantage of having a powerful overload capacity. For example, 1KW model can power 1P air conditioning. 2KW can power 2Ps of air conditioning, 3KW can power 3Ps of air conditioning, etc.

(9) With adopting the latest American low frequency circuit design and new electric materials, the whole system is more stable, with a low malfunction rate and long-life. Under normal usage, product life expectancy is 8 years.

Payment terms: T/T in advance

Shipment: 1. By EMS, DHL, FEDEX, TNT, UPS Or other express
2. By your own forwarding agent

Warranty: 1-year warranty, plus life-time service.

Model		1000W
DC Input		1KW: DC24V & DC48V(Select one)
AC ouput		AC220V & AC110V & AC100V & AC230V & AC240V (Select one)
Nominal Output Frequency (Hz)		50HZ & 60HZ(Automatic selection)
UPS function		Yes  (Can give up the use )
AC charging function		Yes    (Can give up the use )
Utility Model Specifications
			AC220V			AC110V
Efficiency			≥ 98%
Input Wave Type			Pure sine wave (utility or generator)			Pure sine wave (utility or generator)
Input Voltage Range			AC 154V~AC263V			AC 77V~132V
Nominal Input Voltage			220Vac/230Vac/240Vac			110Vac/120Vac/130Vac
Low Voltage shutoff			154Vac± 4%			77Vac± 4%
Low Voltage Recovery			164Vac ± 4%			82Vac ± 4%
Over voltage Shut off			263Vac± 4%			132Vac± 4%
Over Voltage Recovery			253Vac± 4%			127Vac± 4%
Nominal Input Frequency			50Hz/ 60Hz (auto detect)			50Hz/ 60Hz (auto detect)
Output Wave Type			Same as the input wave type			Same as the input wave type
Transfer Time (Ac to Dc)			< 10ms			< 10ms
Transfer Time (Dc to Ac)			< 5ms			< 5ms
Inverter Mode Specification
Power Factor				1 (Sufficient output power)
Rated Output Voltage (V)				220Vac/230Vac/240Vac			110Vac/120Vac/130Vac
Nominal Output Frequency (Hz)				50/60 ± 0.3Hz (auto detect)
Output Voltage Range				± 10% rms
Efficiency				> 88%        (DC12V: > 88%, DC24V: > 90%, DC48V: > 94%)
Over-Load Protection				(110%< load< 125%) ± 10%: Fault (shutdown output) after 15 minutes;
				(125%< load< 150%) ± 10%: Fault (shutdown output) after 10s;
				Load> 150% ± 10%:   Fault (shutdown output) after 20s;
Low Battery Alarm				10.5Vdc ± 0.3Vdc (If  12V Input)
				21.0Vdc ± 0.6Vdc (If  24V Input)
				42.0Vdc ± 0.6Vdc (If  48V Input)
Low DC input voltage automatic shut-down				10.0Vdc ± 0.3Vdc(If  12V Input)
				20.0vdc± 0.6Vdc (If  24V Input)
				40.0vdc± 0.6Vdc (If  48V Input)
High DC input voltage warning & outage				16Vdc ± 0.3Vdc (If  12V Input)
				32Vdc ± 0.6Vdc (If  24V Input)
				64Vdc ± 0.6Vdc (If  48V Input)
High DC input voltage Recover				15.5Vdc ± 0.3Vdc(If  12V Input)
				31.0Vdc ± 0.6Vdc (If  24V Input)
				62.0Vdc ± 0.6Vdc (If  48V Input)
Power-saving mode				< 10W
Power on mode				20W~60W
Safety				CE, EMC, LVD, SGS, ISO9001
Communication port				RS232
Cooling				Cooling-Variable Speed Fan run under ventilation condition.
Operating Temperature Range				0° Cto 60° C
Storage temperature				-15º C~60º C
humidity				5% to 95%
Noise				Max 60dB
Detailed parameters of electrified wire netting to battery charging
Model Specification 1012 1024 2012 2024 3012 3024 3048 4024 4048 5024 5048 6024 6048 Input voltage 110Vac/120Vac/220Vac/230Vac Input voltage range 88~127Vac/165~255Vac Output voltage Depend on the batter type Charge current 35A 20A 65A 35A 75A 45A 30A 35A 35A 35A 40A 75A 50A Charging the inverter for intelligent charging; , The size of the charge current is determined by the: The regulation of the inverter\Capacity of the battery at\battery voltage Charge current correction ± 5A Initial Charge Voltage Normal batteryvoltage  9.0 ~ 15.7V  /  18.0 ~ 31.4V  /  36.0 ~ 62.8V Charger short-circuit protection Circuit Breaker Circuit breaker 10A 20A 30A 40A Over voltage protection When the battery voltage > 15.7Vdc/31.4Vdc/62.8Vdc, every second sounds 0.5 second, it breaks down after 60 seconds. model Net weight (KG) gross weight (KG) product size (L*W*H)MM package size (L*W*H)MM 6KW 44 46 622*188*168   730*330*285 For reference only, if there is a change without notice If you want to purchase this product, Please make sure the following parameters.
Power rating					1KW
DC volts					DC12V & DC24V & DC48V & DC36V
AC volts					AC110V & AC220V & AC100V & AC120V & AC230V & AC240V
Frequency					50HZ & 60HZ
The UPS function					YES & NO
The use of occasions					Solar & Wind & Car & Family expenses & Industrial use & other
AC priority use & DC priority use					AC priority use & DC priority use
If  DC priority use					There are two kinds of  programming: 1, every time itstarts, After the batteris is full, and then converted to DC supply. 2, After the batteris is 13.5V/27V/54V, and then converted to DC supply.
AC charging function					YES & NO
Trade Terms					EXW, FOB, FCA, FAS, CIF, CFR, DEQ, and so on
Other description
