1micron 1.6MPa 30 " SUS316 Security Cartridge Filter for Seawater
| Price: |
US $ 480-500/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

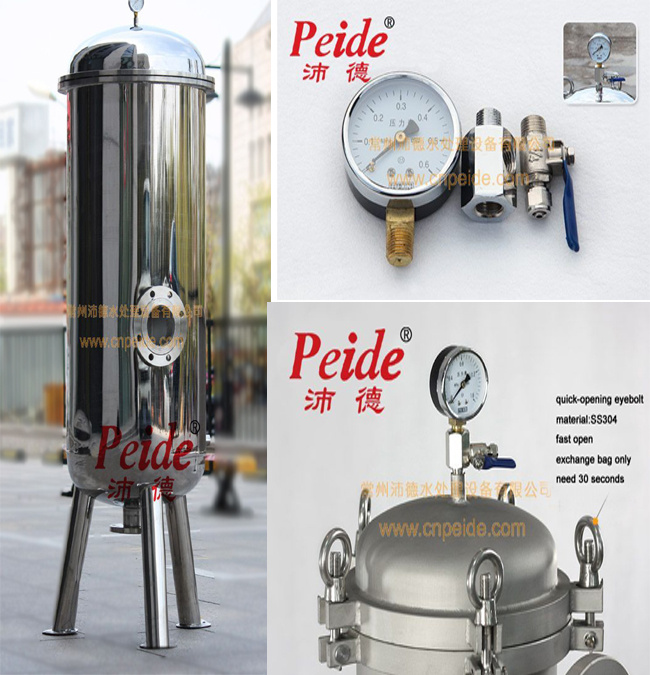

1micron 1.6Mpa 30 " SUS316 Security Cartridge Filter for Seawater
Cartridge filter, also known as security filters, generally set before the pressure vessel
To remove the tiny particles whose turbidity above 1 degree, to meet the requirements
Of the followup process of water; Sometimes, it is also set at the end of the entire water
System to prevent small particles (such as broken resin) into the finished water.
* Characteristics
1, high filtration precision, uniform pore size filter.
2, small filtration resistance, flux, interception capability, long service life.
3, filter is clean and no second pollution to the filter media.
4, It also can filter acid, alkali and other chemical agents.
5, high-intensity, heat-resistant, deformation resistance.
6, low price, low running costs, easy to clean, filter can be replaced.
How Cartridge filter
Cartridge filter is made of high quality stainless steel, filter using molded filter, The liquid
Went through filter under pressure, residue left on the filter, and the filtrate outflow through
The filter can effectively remove impurities in the water, sediment and suspended solids, bacteria.
Molded filters are: Cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter and multi-function filter.
Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-120um. For the same form of filter, it is divided into different models by their dimensions.
*** Application
1, Food industry: Fine filter of space water, mineral water, beverages, liquor clarification and filtration process.
2, Pharmaceutical industry: Sterile water, oral, infusion and injection water treatment.
3, Electronics industry: Water preparation semiconductors, instruments, picture tubes and other production plants, wash water filtration bar.
4, Chemical industry: Organic solvents, esters, alcohols, acids, alkalis and other chemicals, oils purification.
5, Oil industry: Oil field water injection preparation and so on.
6, Environmental protection, electroplating wastewater, printing waste, pharmaceutical waste and other industrial wastewater treatment.
7, Seawater, brackish water desalination water treatment, hotels, apartments water treatment.
8, Precision filter is often used as security filter for electrodialysis, ion exchange, security filters reverse osmosis devices.
**** Parameter
Working pressure: 0.6 / 1.0 / 1.6Mpa
Body Material: Stainless steel (SUS304, SUS304L, SUS316, SUS316L).
Operating temperature: 5 ~ 40 º C (exceed 60 º C to be informed)
Design temperature: 5 º C -100 º C
Replace the pressure: 0.05Mpa-0.07MPA
Filter interface: Flat compression, plug-in
Cylinder and base connection mode: Quick opening, flanged
Filtration accuracy: 1μ M ~ 100μ M
Cartridge Quantity: 1 core to 180 cores
Filter Length: 10 "~ 40"
Seal type: O-ring or flat washer
Seal Material: PTFE, rubber.
Finish: Matte jet beads, mirror electrolytic polishing.
Sealing material: Nitrile rubber, silicone, Viton, standard configuration for the silicone seal.
Interface Type: GB, HG, DIN, ANSI, JIS standard flanges, dental mouth, clamps and so on.
Flange Standard: GB, HG, SH, HGJ, JB, ANSL, JIS and other standards. (User-specified, please indicate the pressure level)
Manufacturing, testing standard: GB150 standard, or user-specified criteria.
| Material of filter | Temperature(degree centigrade)
| Pressure(Mpa) | precisionμm | size |
| Sintered titanium alloy filter | ≤300 | 0.015 | 0.3~100 | Φ50×120 Φ50×450 Φ60×110
Φ60×300 Φ60×500 Φ60×1000 |
| Stainless plait filter | ≤500 | 0.01 | 2~180 | Φ35×210 Φ65×250 Φ86×350
Φ86×500 Φ90×1000 |
| PTFE plait filter | ≤140 | 0.011 | 0.02~50 | Φ45×250 Φ45×500 Φ45×1000
Φ60×250 Φ60×500 Φ60×1000 |
| PP plait filter | ≤60 | 0.012 | 0.1~60 | Φ45×250 Φ45×500 Φ45×1000
Φ60×250 Φ60×500 Φ60×1000 |
| Metal fiber sintered felt | ≤130 | 0.01 | 1~70 | Φ180×425 Φ180×800
Φ180×1000 |
| Ceramic filter | ≤250 | 0.018 | 0.4~80 | Φ100×300 |
| Melt-down filter | ≤60 | 0.015 | 1-100 | Φ60×250 Φ60×500
Φ60×750 Φ60×1000 |
| Wound filter | ≤60 | 0.012 | 1-100 | Φ60×250 Φ60×500
Φ60×750 Φ60×1000 |
WELCOME TO INQUIRE, WE WILL OFFER YOU THE BEST ITEMS !
| Prod Model: |
DLQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cartridge Installation: |
Vertical Lifting |
| Filter Bag Environment: |
Room Temperature |
| Filter Bag Filter: |
The Filter Type |
| Filter Bag Sectional Shape: |
Round Bag |
| Usage: |
Water Filter |
| Material: |
304ss or 316L |
| Filter Precision: |
1-800microns |
| Water Flow: |
10-40 Cbm and More Than |
| Application: |
Water Filter |
| Working Pressure: |
0.6 / 1.0 / 1.6MPa |
| Filtration Grade: |
Precision Filter |
| Type: |
Pocket Filter |
Started from 2004, Peide has been concentrating on research and production for water treatment equipment, our founder Mr. Wu has been supplying team work for over 7000 project, and draw lessons from A large number of engineering practice and accumulated rich experience in design and installation. Considering from better cost-efficiency, safety, credibility, we supplied our solutions to our customers, such as Cocacola China, Pepsi China, Siemens, Gates Hydraulic, HSBC, Shanghai Expo Venue, Danone, Kerry food, Kafu, Hair, Lenovo, GE, Benz, Toyota, Hyundai Motor etc.,
For decades, we have been water treatment equipment for food, beverage, pharmacy, hospital, precision electronics, chemical, electric power, surface cleaning, air-conditioner industries. Our customer is mainly in the USA, Japan, South Korea, France, Norway, England, India, Chile, Mexico and other 70 countries.
Mainly Products: UV water sterilizer & disinfection equipment, Water Filter equipment including Bag type filter, Sucking automatic type filter, Automatic brush type filter, Sand filter equipment, Electric scale equipment, Recycling water treatment equipment, Ion stick etc., .
Certificate: ISO: 9001: 2008, CE, China Famous Brand
Sales: 20M RMB/year
Peide is always looking for new ways to increase the value of the products and services we offer to our customers. Our goal is to creat class quality, class service, class management and class environment. Try to make our sky bluer, our ground greener our water cleaner.
