Product Specifications
| Prod Model: |
ALG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Bottle Sealing Machine |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Brand Name: |
Leadtop China |
| Weight: |
500kgs |
| Filling Range: |
1-2ml,5-10ml,5-20ml,50-100ml |
| After-Sales Service Provided: |
Engineers Available to Service Overseas |
| Capacity: |
2000-5000bottles |
| Dimension(L*W*H): |
1920*980*1300 |
| Filling Heads: |
2,4,6,8,12 Are All Available |
| Automatic Grade: |
Automatic |
| Finished Dosage Form: |
Liquid |
| Certification: |
CE |
| Type: |
Vial |
Product Description

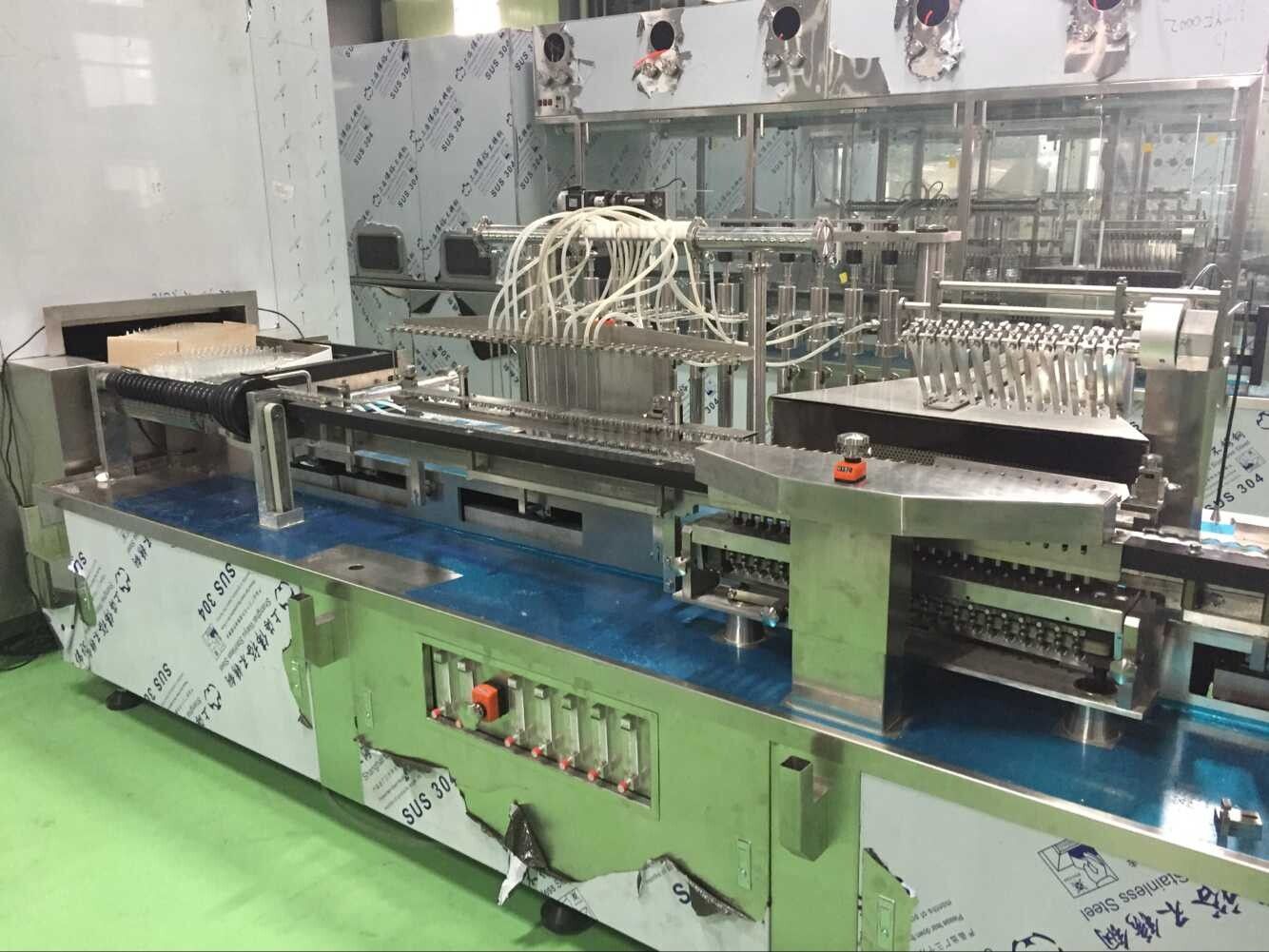

The machine is a new generation of the vial filling and sealing machine for several size. It adopts the rectangular way to transfer ampoules, in such case, the transferring is steady, lower braking rate. A new type of clutch is mounted under the vial feeding hopper; therefore the ampoule can be stopped at any time while the machines are still running. So the vial consumption can be reduced. Electromagnetic switch is replaced with mechanical way in the part of filling stop system. It is reliable and durable. The traditional ampoule out-feeding way is abandoned, and vial collecting is reliable, the qualified filled ampoule is more excellent.
Main parts and fittings are made of stainless steel through precision casting. The accuracy and exchangeability of parts can be guaranteed. Besides, we use the SS pump to filling the liquid, the liquid dropping is under the control, and prevent vial blackening owing to carbonization.
Characteristic:
1.intelligent contact screen, human design, easy operation.
2.Imported filling valve, avoiding drop leaking, accurate filling quantity.
3.Program logic controller(PLC), easy for changing size or modifying parameters.
4.Pneumatic elements are all imported, stability and reliability.
5.Accurate liquid sensing, automatically adding liquid, ordinary pressure flow passage parameters
6.Solely and specially-designed whole lifting device, easy governing to meet the needs of all kindsof container packing
7.Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
8.Pneumatic executive control valve, high efficiency and safety. Each flow passage can be separately governed and cleaned.
9.Close positioning design, easy governing, suitable for packing of all sizes of bottles.
10.The whole machine is designed according to requirements of buyer's.
| Model | liquid filing |
| packaging material | liquid filing |
| filling nozzle | 1/2/4/6 |
| filling capacity | 2-500ml |
| bottle size | can be customized |
| Filling speed | 30-80 bottles/min |
| power | 1.8kw,120v/220v/380v |
| Air supplier | 0.36m³/min |
| Language choice(Touch screen) | english, spanish, Russian, Arabic, French, Italian, Korean, chinese, can be customized. |
Our company is recognized as a major pharmaceutical equipment manufacturer and a distributor of packaging materials and pharmaceutical chemicals. Our company is founded in Rui'an, China, with 18 years' (Opened on 1996 year) experience in pharmaceutical industry. This allows us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines, packing materials and APIs at competitive prices. Our main products includes:
Fluid Bed Dryer
Spray Drying Machine
Powder Mixing Machine
Granulating Machine
Capsule filling machine
Blister Packing Machine
Cartoning machine
Tablet Pressing Machine
Bottling Machinery
Liquid Production Line
All kinds of lamination films for pharma packaging
Several kinds of APIs
Our Faith: Your Best Pharmaceutical Production Solution!
We offer whole pharmaceutical Production solutions from raw material processing to finished products. We manufacture and distribute different pharmaceutical machinery, packing materials and APIs with our own engineering teams and after-sales service teams.
Based on our experienced engineering team, we produce top quality machines, paking materials and APIs and also help customers select the best quality suppliers. Our company is a technology-driven company and focuses on producing high quality machinery. We employ 15 engineers on machinery design and technology improvement. Each engineer has at least ten years' machining and packaging area experience. We are your extra technical consultant center.
Quality Control:
Our company owns a quality control department to verify each product at different phases, from the procurement of parts to finished products. In order to offer clients the best quality products, we manufacture products in accordance with international standards, such as FDA, GMP and cGMP.
We are your best pharmaceutical production solution!
