Product Specifications
| Prod Model: |
Tbc- 1*4 Plc Splitter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Tincam |
| Model Number: |
Tbc- PLC Splitter |
| Splitter: |
1:4 |
| Wide Operating Wavelength: |
From 1260nm to 1650nm |
| Wide Operating Temperature: |
From -40°c to 85°c |
| Insertion Loss (Typical): |
10.3dB |
| Return Loss: |
>50dB |
| Uniformity (dB): |
0.8dB Max |
| Fiber Type: |
SMF-28 G652d or Customized |
| Insertion Loss (Max): |
10.5dB |
| Type: |
Optical Fiber Distribution Box |
| Wiring Devices: |
ODF |
Product Description

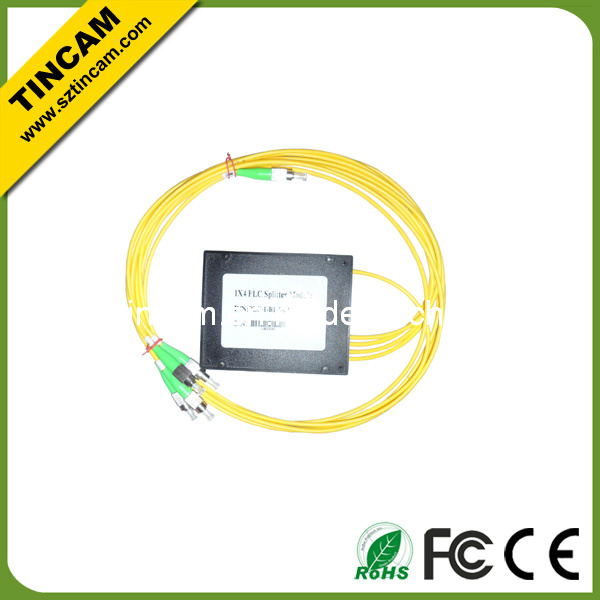

Pigtail Cassette Box Type PLC Splitter (TBC- 1*4 plc Splitter)
Detailed Product Description
1. Small size,
2. High reliability,
3. Wide operating wavelength range
4. Good channel-to-channel uniformity
1. Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting as a low-cost solutions. Tincam provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet TBC-1209-CORE and TBC-1221-CORE requirements.
2. Features
Low Insertion loss
Low PDL(Polarization Dependent Loss)
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40° C to 85° C
High Reliability and Stability
3. Applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
