Huizhou Dayawan Fox Etech Limited >> 1u 1037u Firewall Server, 1u 1037u Based 4*LAN Bypass Server

1u 1037u Firewall Server, 1u 1037u Based 4*LAN Bypass Server

Name: 1u 1037u Firewall Server, 1u 1037u Based 4*LAN Bypass Server
Brand: china-manufacturer-directory.com
SKU: 739639745
Availability: InStock
Rating: 4.5 (73 reviews)

Supplier:	Huizhou Dayawan Fox Etech Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	FNS-C10374LB-L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
VPN Support:	Yes
Type:	Wired
Application:	SOHO
Transfer Rate:	10/100/1000Mbps
Ports:	≤4

Product Description

1u 1037u firewall server, 1U 1037U based 4*LAN Bypass Server

Specifications
1U rackmountable
Router
Network Security
Small Size

Get more detailed information about our products,
Please visit our website: http://www.fox-etech.com

FOX ETECH - Intel industrial Firewall Industrial Motherboards /Appliance.
FOX ETECH also provide the service of custom design to meet your special requirement.

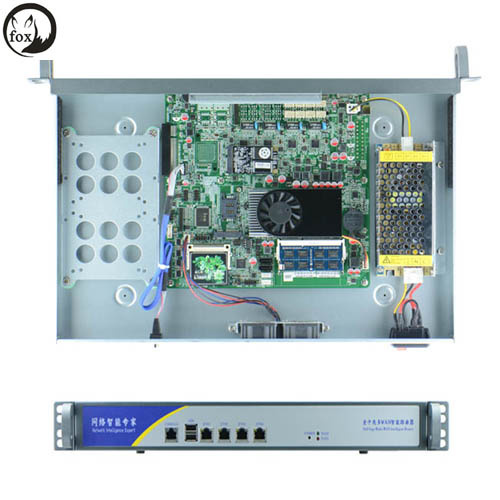

1U Atom Server / Firewall Network Security with Bypass /Intel Celeron 1037U 4*Lan

Advantage:
Integrated Intel Ivy Bridge Celeron dual-core 1037U processor (1.8 GHz)
Based Intel NM70 high-speed chipset
Support Dual-Channel SO DDR3 memory, Max. Up to 16G
Provide 4 * PCI-E Intel 82574V gigabit Lan, Support 1 group Bypass; Support Wake-On-Line, PXE function
Optical PCIEx8 expansion Slot, Support 2 * gigabit optical port or 10000Mbps Optical port; Intel 82580DB Gigabit or 82599ES 10000Mbps Optical Card
12V/10A Open Industrial Power Supply
1U 1.0MM steel; PVC membrane can custom
Brand new low noise 2 fans

Model NO.	FNS-C10374LB-L
CPU	Integrated Intel® Celeron 1037U Dual-core 1.8GHz TDP 17W
Chipset	Using Intel® NM70 Express Chipset
Memory	Dual-channel SO DDR3 1333/1066 memory slot, Max. up to 16GB
Display port	1* DB15 VGA port
Network Function	Integrated 4* Intel 82574L 10/100/1000Mbps Ethernet
	Supporting Wake-on-LAN and PXE function
	Support 1 groups of BYPASS function
Wireless Network	Providing 1* Mini-PCIE slot, support WIFI/3G module
Storage	Providing a 3.5/2.5inch SATA disk location
	1* MSATA slot, support SSD 6Gbps
	1* CF card slot
Panel Port	1* COM(CISCO Standard Interface)
	2* USB 2.0 port
	6* LAN port
	1* POWER Switch
	1* POWER_LED, HDD_LED Indicator
	1* VGA port (Rear panel)
Cooling system	1* CPUFNA, 2* SYSFAN
Operating Temp.	-10°C~60°C
Storage Temp.	-20°C~70°C
Humidity	5%-95% (relative humidity; non-condensing)
Anti vibration	5~300Hz/random operating
Power	AC to DC_12V/10A power supply
Installation	1U chassis frame
Material and Process	Surface sandblasting oxidation process (Silver gray)
Size	430mm(L)* 280mm(W)* 46.2mm(H)
