Product Specifications
| Prod Model: |
KVM-1716AU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

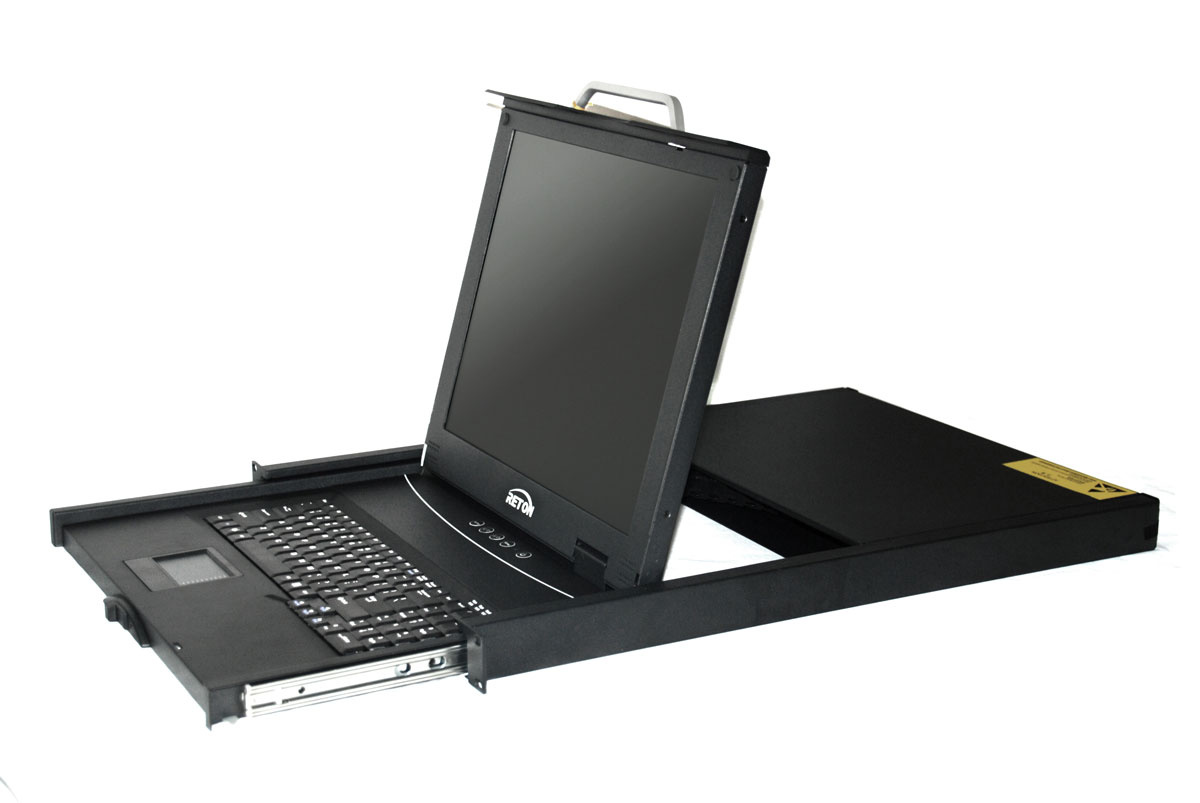

LCD KVM Drawer is a console that integrates the KVM Switch function of multiple ports in 1U. It can manage multiple computers through a single set of console (keyboard, monitor, and mouse). There is no better way to save time and money than with a LCD KVM DRAWER installation.
A LCD KVM Drawer unit can control up to 1/8/16 PCS. After daisy chained of eight levels, it can control up to 128 PCS.
Setup is fast and easy; Plugging cables into their appropriate ports all that are entailed. There is no software to configure, so there is no need to get involved in complex installation or incompatibility problems. Reton LCD KVM Drawer works on any hardware platform and with all operating systems.
|
|
Item |
Specification |
|
LCD |
LCD Type |
SXGA TFT |
|
Display area |
17" |
|
Resolution |
1280 ×1024 |
|
Display color |
16.7 M |
|
Luminance |
250 cd/m²(Typ) |
|
Contrast ratio |
500:1(Typ) |
|
Back light |
CCFL 2 lamps |
|
Pixels intervals (mm) |
0.297(H) × 0.297W) |
|
Angle of view |
140° ( H ) × 120°(V) |
|
LCD MTBF |
> 50,000 hour |
|
Power input |
5V DC |
|
Power Consumption |
<20W |
|
OS |
Operation system |
Support Microsoft Windows,MAC, SUN Solaris, UNIX,LINUX,NETWARE |
|
Keyboard |
Keys |
99keys (82keys+17 independent Number keys) |
|
MTBF |
> 10,000,000 times |
|
Touchpad mouse |
X/Y resolution |
>1000 point / inch, (40point/mm) |
|
Wheel |
Support wheel function |
|
MTBF |
> 1,000,000 times |
|
Internal Power supply |
Alternating Current Input |
90V ~264V AC |
|
MTBF |
>60,000 Hrs (25° C) |
|
switch |
PC connection Ports |
16 |
|
PC selection |
OSD Menu / Hotkey/Fn + No. key |
|
Auto Scan Intervals |
5~99 Sec |
|
VGA Bandwidth |
200MHz |
|
Daisy Chain |
2 levels |
|
Max PC Connections |
128 |
Framework
And packing |
color |
Black or optional |
|
housing |
Metal & Aluminum |
|
Gross /Net Weight |
23kg/15kg |
|
Dimensions(L × W × H) |
602.5mm×448mm×42.5mm |
|
Packaging size(L × W × H) |
810mm×620mm×190mm |
|
Rack mounting depth range |
600mm~850mm |
|
Power Consumption |
Power Consumption |
≤46W |
|
Environment condition |
Operation/storage temperature |
0~50/-20~60° C |
|
humidity |
0~80%, Non-Condensing |
Shenzhen Red Stone Technology Development Co. Ltd, founded in 2008, specializes in the R&D of integrated room management solutions. Our main products include KVM switches, IP KVM switches, Cat5 KVM switches, LCD KVM drawers, and more.
As an ISO9001: 2000-certified manufacturer, we conduct strict QC procedures. All our products are tested qualified in terms of performance, compatibility and durability. Each of them bears CE, FCC and RoHS marks, and is given 1-year warranty. ZTE orders thousands of LCD KVM and IP KVM switches from us every year.
