Product Specifications
| Prod Model: |
KVM-1900 Series |
| Transfer Rate: |
10/100Mbps |
| Firewall: |
Without Firewall |
| Application: |
Enterprise |
Product Description

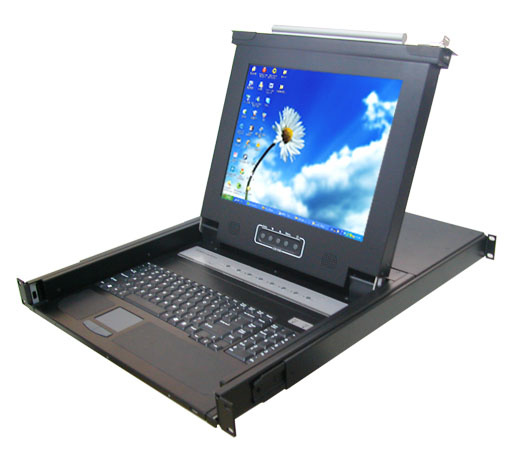

1U Rackmount 19" TFT LCD KVM switch
KVM-1900 Series
* 1 PS/2 console controls up to 16 directly connected computers
* Support an optional remote console (Cat5 based or Over-IP)
CAT5 console up to 1000 feet away from KVM switch with superior auto-adjust RGB gain/delay control capability
* Support multipl e form -PS/2 and USB computers (SUN and MAC)
* Support DOS, Windows, Netware, UNIX, Linux, MacOS
Hot Pluggable - Add or remove connected PCS without having to power down the KVM switch or PCS.
Superior video quality -Up To 1 280 X 1024, DDC2B
No software required -easy PC selection via Push Buttons, Hot Keys or OSD (on screen display)
* Support Daisy Chaining up to 7 additional units
Auto Scan Mode for monitoring PCS
Firmware upgradeable for staying compatible with new coming computers
* Metal case, rack mountable Support DDC2B for all ports
Functions
|
KVM-19AST
|
LCD
|
Size
|
19 " TFT
|
|
Resolution |
1280 x 1024 |
|
Max. color |
16.7M |
|
Luminance |
300 cd/m2 |
|
View Angle |
178° (H), 178° (V) |
|
Pixel Pitch |
0.294 x 0.294 mm |
|
Contrast Ratio |
1000: 1 |
Computer Connections
|
Direct
|
1 / 8 / 16
|
Maximun
|
128
|
Computer Port Selection
|
OSD, Hot Key, Push Button
|
Connector
|
Power
|
AC Inlet
|
Computer
|
HDB 15 Female
|
Daisy Chain
|
HDB 15 Female
|
Console Port
|
Plus1 Optional Modules: Selectable CAT5-Based or IP-Based Remote Console
|
CAT5-Based Remote Console Module (DCC-100T/DCC100R)
|
RJ-45 Connector CAT5 console up to 1000 feet away from KVM switch with superior auto-adjust RGB gain/delay control capability
|
IP-Based Remote Console Module (DIP-101)
|
RJ-45 8P 8C for 10/ 100M Ethernet DB-9 pin male for Modem, Null modem and serial power Control Mini USB 2.0 receptacle
|
LEDs
|
Port
|
1 / 8 / 16
|
Power
|
1
|
Button / Switch
|
Power Switch
|
Rock Switch
|
LCD Adjustment
|
Button
|
Hotkey
|
Provide various Hotkey (Scroll-Lock/ Cap-Lock/ Num-Lock/ Alt/ Ctrl/ Win)
|
Auto-Scan Intervals
|
5 ~ 99 Sec.
|
Keyboard / mouse Emulation
|
PS/2
|
Video Resolution (Local Console)
|
1280 x 1024
|
Video Resolution (Remote Console)
|
1600 x 1200 for CAT5-Based 500 feet remote console, 1024 x 768 for CAT5-Based 1000 feet remote console, 1600 x 1200 for IP-Based remote console
|
Power Input Rating
|
100-240VAC; 50/60Hz; 1A
|
Power Consumption
|
48W
|
Enviroment
|
Operating Temperature
|
0- 45 º C
|
Store Temperature
|
-20 -60 º C
|
Humidity
|
0-80% RH, NC
|
Housing
|
Heavy Duty Steel
|
Size
|
19" Rack mount, 1U
|
Net Weight
|
17.3KG (1port), 17.5KG (8port), 17.7KG (16port)
|
Gross Weight
|
21.3KG (1port), 21.5KG (8port), 21.7KG (16port)
|
Dimensions (W*D*H)
|
449.2 x 600 x 44.4 mm
|
Packing Dimensions (W*D*H)
|
580 x 790 x 200 mm
|
|
Ordering Information |
KVM-1901AST
|
1U Rackmount 1 9" TFT LCD W/ 1 port KVM switch, W/ 48 W power supply
|
|
KVM-1908AST |
1U Rackmount 1 9" TFT LCD W/8 port KVM switch, W/ 48 W power supply |
|
KVM-1916AST |
1U Rackmount 1 9" TFT LCD W/16 port KVM switch, W/ 48 W power supply |
|
