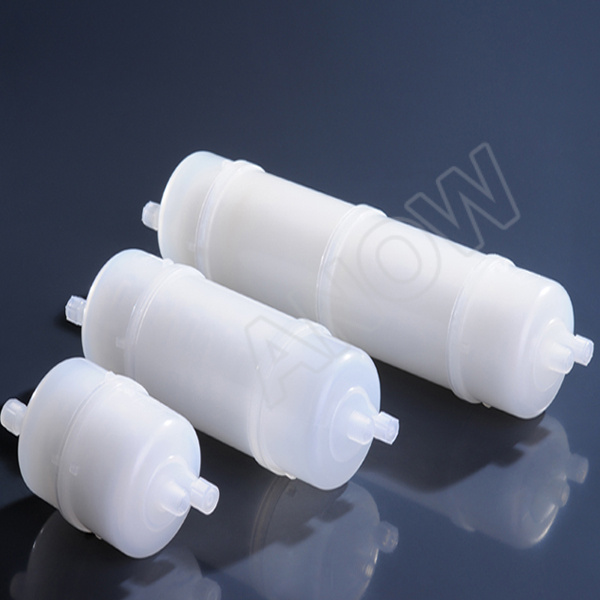

CN Series Capsule Filter for Inkjet Inks Filtration
CN capsule filters are compact capsule assemblies, available in various filter media. They are ideally suited for inkjet ink filtration on digital printing systems, and filtration of resins, solvents, pigments and dyes in the ink jet ink manufacturing process, as well as for the filtration of small volume batch chemicals.
Features and Benefits
Compact and sturdy construction
High pressure resistance
Low hold-up volume
O-ringless design
Disposable design, easy change-out
Quality
Capsules produced in a controlled environment
Manufactured according to ISO9001 certified Quality Management System
Specification:
Materials of Construction |
Filter Media |
PES/Nylon66/PTFE/PP/PVDF/GF |
Support & Housing |
PP |
Sealing technology |
Thermal Bonding, No Adhesives |
Dimensions |
Diameter |
Φ67 |
Length |
2.5 inch, 5 inch, 10 inch |
Inlet/Outlet |
1/4" NPT |
Vent/Drainage |
1/8" NPT |
Filtration Area, ft2 |
2.5-inch |
≥ 1.1 |
5-inch |
≥ 2.2 |
10-inch |
≥ 3.4 |
Pore Size, μm |
Please refer to Ordering Information. |
Maximum Differential Pressure |
Forward: 3.5 bar @ 23°C and 3.0 bar @ 60°C for liquid; 3.0 bar @ 23°Cand 2.5 bar @ 60°C for gas & air. |
Good Manufacturing Practices |
Manufactured in an ANOW facility which adheres to Good Manufacturing Practices. |
For more information on specification, please refer to cartridges with the same membrane.
Ordering information:
For availability of specific options and housing details, please contact ANOW.
Company profile:
Hangzhou Anow Microfiltration Co., Ltd. is a well-known filtration company in Asia who focus on research and development of MCE, Nylon, PES, PVDF, PTFE membrane, as well as design and production of various pleated filter cartridges, syringe filters and capsule filters. ANOW provides professional assistances to liquid and gas & air filtration, separation and purification solutions for customers around the world in biopharmaceutical, medical, food & beverage, microelectronic, chemistry, water treatment and laboratory applications.
Hangzhou Anow Microfiltration Co., Ltd. is a well-known filtration company in Asia who focus on N66, N6, MCE, PES, PVDF, PTFE membrane development, with pore size ranging from 0.03 μ M to 10 μ M, and design and production of various pleated filter cartridges and capsule filters. ANOW provides professional assistance to liquid and gas & air filtration, separation and purification solutions for customers around the word in biopharmaceutical, medical, food & beverage, microelectronic, chemistry, water treatment and laboratory applications.
ANOW is a state-class high-tech enterprise, who has successfully gotten the certificates of ISO9001 and ISO13485, and obtained the SFDA authorized production certificate of the 3rd medical plastic products, among which disposable microporous membrane and filters for medial use have been honored the registration certificate of medical devices by SFDA. Besides, we have been also honored as Direct Unit of the Membrane Industry Association of China and Direct Company of medical plastic product branch association of CAMDI.
Our plant located in Xindeng Industrial Zone, Fuyang, Hangzhou, covers a production workshop area of 6000 m² , with 3000 m² Area meeting the GMP requirements for manufacturing of medical devices, 100000-class 600 m² Cleaning room and 2400 m² Cleaning room. We have more than twenty lines for the production of microporous membranes and pleated filter cartridges, advanced inspection tools and equipments, as well as professional R&D Centre and Validation Centre. In addition, we have adequate and recognized technical experts such as Professor Meile Gong, for developing new products and providing technical service, which can satisfy our customers both in quantity and quality.
ANOW has been making great efforts to improve the quality management system during the process of obtaining the certificates of production and registration. We particularly attach great importance to R&D to make consistent progress in order to provide customers with excellent products and services.
Our massion is "make\ing the filtration better".
