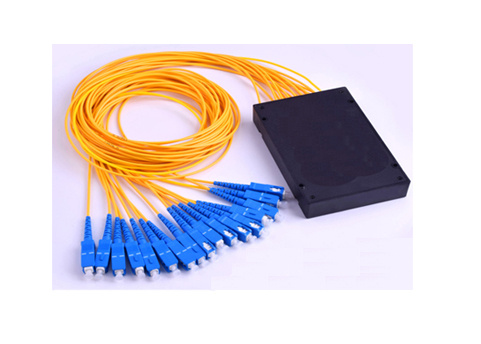

1X2 1X4 1X8 1X16 1X32 1X64 PLC Optical Fiber Optic Splitter Module/Sc FC St LC Fiber Pigtailed Splitter/ Telecommunication Level

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Optical Fiber Distribution Box
Wiring Devices:	ODF
Condition:	New

Product Description

1X2 1X4 1X8 1X16 1X32 1X64 PLC Opitcal Fiber Splitter Specification test at room temperature excluding connectors loss
Parameter		Specification
Type		1X2	1X4	1X8	1X16	1X32	1X64	2X2	2X4	2X8	2X16	2X32	2X64
Insertion Loss(dB)	Typ	3.6	6.8	10.0	13.0	16.0	19.5	4.0	7.0	10.5	13.5	16.5	20.5
	Max	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.8	20.5/21.0	4.1/4.3	7.4/7.6	10.8/11.0	14.3/14.5	17.3/17.5	20.7/21.5
Uniformity(dB)	Typ	0.4	0.5	0.5	1.0	1.0	2.5	0.6	0.8	1.0	1.5	2.0	2.0
	Max	0.6	0.6	0.8	1.2	1.5	2.5	0.8	0.8	1.5	2.0	2.5	2.5
PDL(dB)	Typ	0.1	0.1	0.1	0.2	0.2	0.2	0.1	0.1	0.1	0.2	0.2	0.2
	Max	0.15	0.15	0.25	0.3	0.3	0.3	0.2	0.2	0.3	0.4	0.4	0.4
Wavelength Department Loss(dB)	Typ	0.10	0.10	0.10	0.10	0.20	0.20	0.10	0.10	0.10	0.10	0.20	0.20
	Max	0.20	0.20	0.30	0.50	0.50	0.50	0.20	0.20	0.30	0.50	0.50	0.50
Temperature Department Loss(dB)	Typ	0.30	0.30	0.30	0.40	0.40	0.40	0.30	0.30	0.30	0.40	0.40	0.40
	Max	0.50	0.50	0.50	0.50	0.50	0.50	0.50	0.50	0.50	0.50	0.50	0.50
Directivity(dB) Min		55
Return Loss(dB) Min		55(50)
Operating Temperature(°C)		-40~+85
Storage Temperature(°C)		-40~+85
Fiber Length		1m or Customized
Fiber Type		ITU G652.D/G657.A
Connector Type		Customized

Fiber Optic PLC splitter/Divider/Optical Splitter is fabricated using silica optical waveguide technology. It feature wide operating wavelength range, good channel-to-channel uniformity, High reliability and small size, and is widely used in PON network to realize optical signal power management.
Mangie technology provide whole series PLC, such as 1×N and 2×N.

Application
1. Telecommunications
2. Local Area Network (LAN)
3. Fiber to the home (FTTH)
4. FTTX
5. PON
6. CATV
