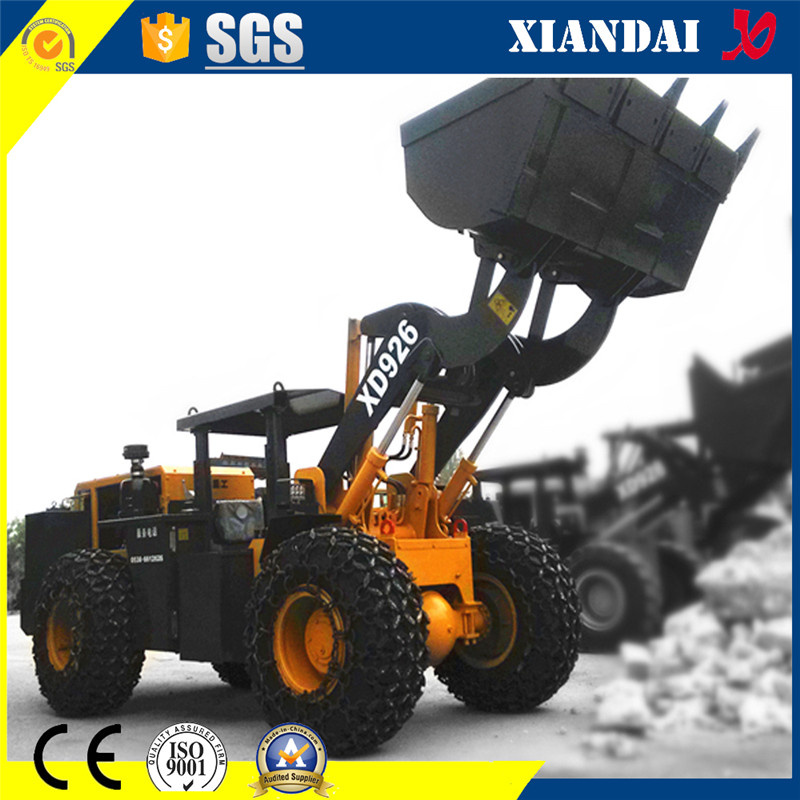

2.0t Low Type Tunnel Loader with CE Xd926

Name: 2.0t Low Type Tunnel Loader with CE Xd926
Brand: China-Manufacturer-Directory.com
SKU: 700096592
Availability: InStock
Rating: 4.3 (112 reviews)

Supplier:	Taian Modern Heavy Industries Technology Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,DAP

Product Specifications

Prod Model:	XD926
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bucket Capaciity(M3):	0.8
Rated Load(T):	2.0
Weight (T):	5.2
Overall Dimensioon (LWHmm):	490018002300
Max. Dumping Height(Mm):	1740/2200
Engine Model:	Yc4d85z-T20/Ytolr4a3z-22
Ratd Power(Kw):	60/70
Rated Speed (R/Min):	2200
Type:	Medium-sized Loader
Walking Mode:	Wheeled
Load And Unload Method:	Front Discharge
Certification:	SGS
Condition:	New

Product Description

I.Features&Benifits
1.High abrasion cutting edge and teeth for increasing bucket life.
2.Oil pipes in locations vulnerable to wear is designed with protective sleeve for long life and enhanced relibility.
3.Machine with small body is widly used in coal mine, iron ore mine and non-ferrous mine.
II. Specification

Model	XD926(Low Type)
Main specifications
Bucket capacity (m3 )	0.8
Rated load (t)	2.0
Weight (t)	5.2
Lifting time of the arms (s)	≤4
The sum of three items(s)	≤8
Forward gear(km/h)	I 0-7 II 0-24
Reverse gear	I 0-7 II 0-24
Max. climbing gradient	30°
Demensions
Overall dimension (mm)	520018001900
Wheel base (mm)	2450
Wheel tread(mm)	1420
Max. dumping height(mm)	1740
Dumping reach (mm)	945
Diesel engine
Engine model	YTO4108
Engine type	In-line,water-cooling,4-stroke,4cylinder,direct-injection
Rated power(kw)	60
Rated speed (r/min)	2400
Total exhaust of cylinder(L)	4.58
Type of starting	Electric start
Transmission system
Torque converter
Model	YJ280
Type	Single stage, three elements
Gearbox
Model	YJ280
Type	Fix counter-shaft, power-shift
Axle and tire
Type of main reducer	Spiral bevel gear,single stage
Type of final reducer	Single stage planetary
Size of tire	15/70-18
Working device of hydraulic system
Model of working pump	CBG2063
Nminal displacement(ml/r)	63
Rated pressure(Mpa)	16
Multi-way directional valve	ZL20
Pressure(Mpa)	17
Rated flow(L/min)	100
Steering system
Type	Load-sensing hydraulic steering
Displacement(ml/r)	250
Max input pressure(Mpa)	16
Brake system
Type of traveling break	Air over hydraulic break
Type of parking break	Band break

III. Shipping:
1 unit /20GP & 3 units /40HQ container;

Taian Modern Heavy Industries Technology Co., Ltd is a corporation that focuses on wheel loader and skid steer loader in terms of research and development, manufacture and sales since 1998. With years of development, the company has got two factory areas with 200000 square meters, more than 60 untis processing equipment and 150 professional workers. Our company has expanded industrial scale of producing many kinds of products and annual output hasreached about 3000 sets, among 300 units were sold to Brazil, Vietnam, Latvia, Turkey, Australia, Newzealand, Norway, Russia, Sudan etc. We adopt China famous brand YUCHAI, WEICHAI, XICHAI, YTO engine, also HYUNDAI, BRIGGS&STRATTON, COMMINS, DEUTZ worldwide famous engine to meet various requirements from various markets. According to customers actual requirement, the company can develop scores of types of products such as high-dump loader, ultra-low loader for tunnel, wood grabber, grass grabber, fork loader and off-road loader etc. Regarding science and technology as the leading factor, the company performs advanced quality-monitoring framework of production step by step, perfect meshwork of marketing, its production capicity has increased year by year. The company obtained ISO9001: 2008 certificate, wheel loader and skid steer loader got Europe CE certificate, CE noise certificate and Rops&Fops cabin certificate.

We will perform modern product of high quality by taking the technological faith, then conssummate service system and cooperate with spacious customer genuinely to try for mutual development.
