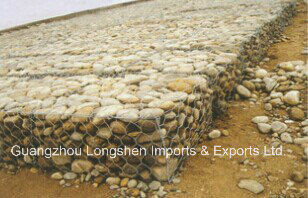

2*1*1m Galvanized Gabion Mesh Box

Product Specifications

Prod Model:	G012
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	2-4m
Material:	Galvanized Steel Wire
Application:	Gabion Mesh
Hole Shape:	Hexagonal
Usage:	Military Applications
Technics:	Welded
Surface Treatment:	Galvanized
Size:	2m x 1m x 1m
Aperture:	60*80mm

Product Description

PVC coated /galvanized gabion box


Gabion net is a kind of hexagonal wire mesh that is made of steel wires. Thesize of wire is according to the different sizes of
 hexagonal net. For steel wire, The sizes from 2.0mm To 4.0mm can be adopted, and for PVC coated wire, The size from 3.0
To 4.5mm, will be used as a mesh wire, and the lacing wire is generally heavier than the mesh wire.
Features:
Economic. Just fill the stone into the gabions and seal it.
Simple installation. No special technology needed.
Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
Good permeation can prevent the damage by hydrostatic.
Less transport freight. It can be folded together for transport and further installation.


Specifications can be adjusted by customer.

PVC Coated/galvanized Gabion Box
Length	Width	Height	Diaphragm	Volume	Tolerance
2.0m	1.0m	0.3m	1	0.6m3
3.0m	1.0m	0.3m	2	0.9m3
4.0m	1.0m	0.3m	3	0.2m3
2.0m	1.0m	0.5m	1	1.0m3	L+/-3%
3.0m	1.0m	0.5m	2	1.5m3	W+/-5%
4.0m	1.0m	0.5m	3	2.0m3	H+/-5%
1.0m	1.0m	0.5m	0	1.0m3
1.5m	1.0m	1.0m	0	1.5m3
2.0m	1.0m	1.0m	1	2.0m3
3.0m	1.0m	1.0m	2	3.0m3
4.0m	1.0m	1.0m	3	4.0m3
Opening (mm)	Wire Diameter (Wire)(mm)		Wire Diameter(PVC Coate) Inner/outside(mm)		Strands
60x80	2.0-2.8		2.0/3.0-2.5/3.5		3
80x100	2.0-3.2		2.0/3.0-2.8/3.8		3
80x120	2.0-3.2		2.0/3.0-2.8/3.8		3
100x120	2.0-3.4		2.0/3.0-2.8/3.8		3
100x150	2.0-3.4		2.0/3.0-2.8/3.8		3
120x150	2.0-4.0		2.0/3.0-3.0/4.0		3

welcome inquiry us!
