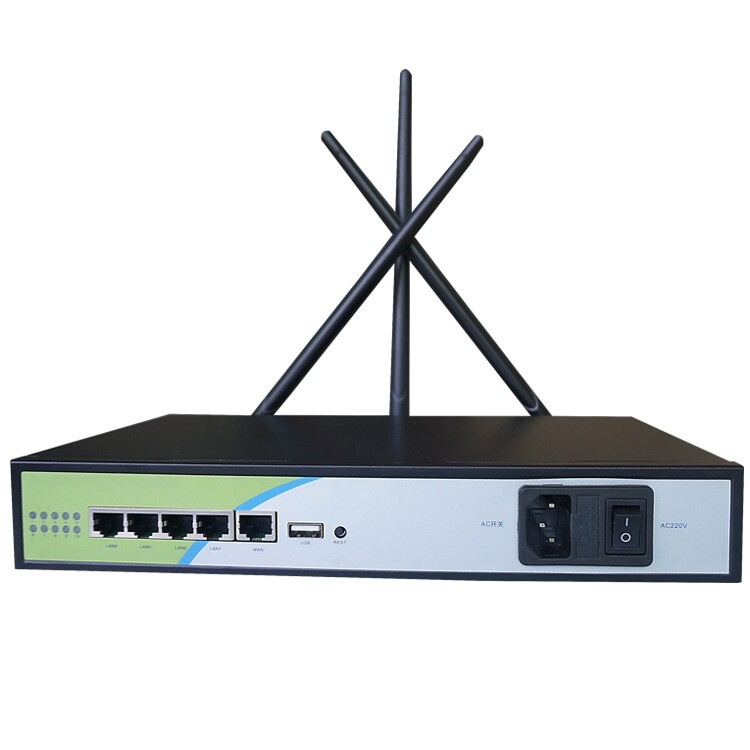

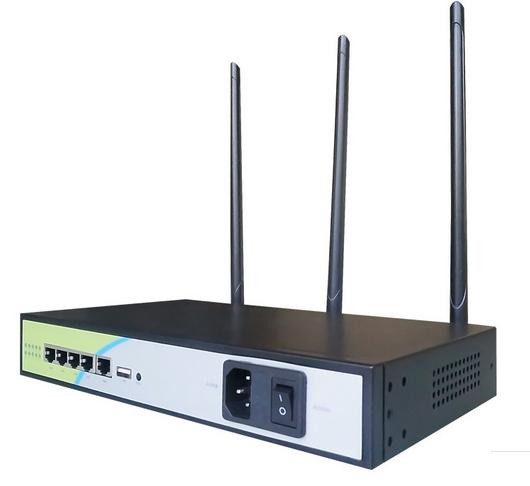

2.4/5g Dual Band Wireless Router Max Transmission Rate up to 750Mbps (TS601F)
Product Specifications
| Prod Model: |
TS601F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
2.4GHz,5GHz |
| Max Transmission: |
up to 750m |
| Network Site: |
Border Router |
| Type: |
Wireless |
| Firewall: |
Firewall |
| Application: |
SOHO |
| Transfer Rate: |
10/100Mbps |
| Port Structure: |
Not Modular |
| Performance: |
Line-Rate Router |
| Architecture: |
Crossbar System |
| Ports: |
4 LAN Port and 1 Wan Port |
| Network: |
Wireless 11n |
Product Description
1.Simply Description:The TS601F uses the latest 802.11AC protocol, the MAX transmission rate could be 750Mbps, both support the 2.4G IEE802.11N and the 5G IEEE802.11AC wireless transmission technology, it could reduce the Co-Channel Interference, and will get a better transmission performance. The MAX RT power is 500mW(27dBM), the cover rangeis 3~4 times than the normal routers. We also assemble the MicroSD slot and the USB2.0interface, make it easier to add more function to the router.2.Product Feature:Support the latest 11AC network protocol, the max rate is 750Mbps(2.4G 300Mbps +5G 450Mbps)2.4G MAX RT power will be 27dBM1 WAN port +4 LAN port, all of them are Auto MDI/MDIX;Provide one USB2.0 interface;Provide one Micro Slot;Many kinds of encryptions to protect your transmission data;
3.Specs:| Hardware |
| Main | MT7620A+MT7610E |
| RAM | DDR2 128MB (MAX DDR2 256MB) |
| SPI FLASH | 16MB (MAX16MB) |
| Protocol | IEEE 802.11n,IEEE 802.11g,IEEE 802.11b;IEEE802.11ac
IEEE 802.3,IEEE 802.3u |
| RT Power | 802.11g 27dBm±2dBm;
802.11n 27dBm±2dBm;
802.11ac 12dBm±2dBm; |
Reception
Sensitivity | 802.11b: -83dBm@10% PER
802.11g: -74dBm@10% PER
802.11n: -63dBm@10% PER
802.11ac: -58dBm@10% PER |
| Work Channel | 2.4GHz choose:1-13
5GHz choose:149,153,157,161,165 |
| Wireless Rate | Max 750Mbps |
| Work Frequency | 2.4GHz,5.8GHz |
| Antenna | 2*detachable 5dBi antenna |
| Interface | 1 USB 2.0 interface
1 Micro SD slot
1 10/100M WAN Port(Auto MDI/MDIX)
4 10/100M LAN Port,(Auto MDI/MDIX) |
| LED | Power,WPS,2.4G,5G,WAN,LAN1,LAN2,LAN3,LAN4 |
| Button | WPS |
| Reset |
| Max Power Consumption | 5W |
Dimension
(L*W*H) | 217*135*31.7MM |
| Software |
| WAN Type | PPPoE,DynamicIP,Static IP |
| Work Mode | AP;
Router; |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
Port
Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Firewall
Security | Dos, SPI Firewall
IP Address Filter/MAC Address Filter/ Domain Filter
IP and MAC Address Binding |
| DDNS | Support |
VPN
Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
| Band Ctrl | Support |
| Static Router |
| System Log |
| Other Function | Mac clone
NTP Synchronize
Web software update |
| Other |
Work
Environments | Operating Temperature:0ºC ~ 40ºC;
Storage Temperature:-40ºC~ 70ºC;
Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing |
| Adapter | 12V 1A |
