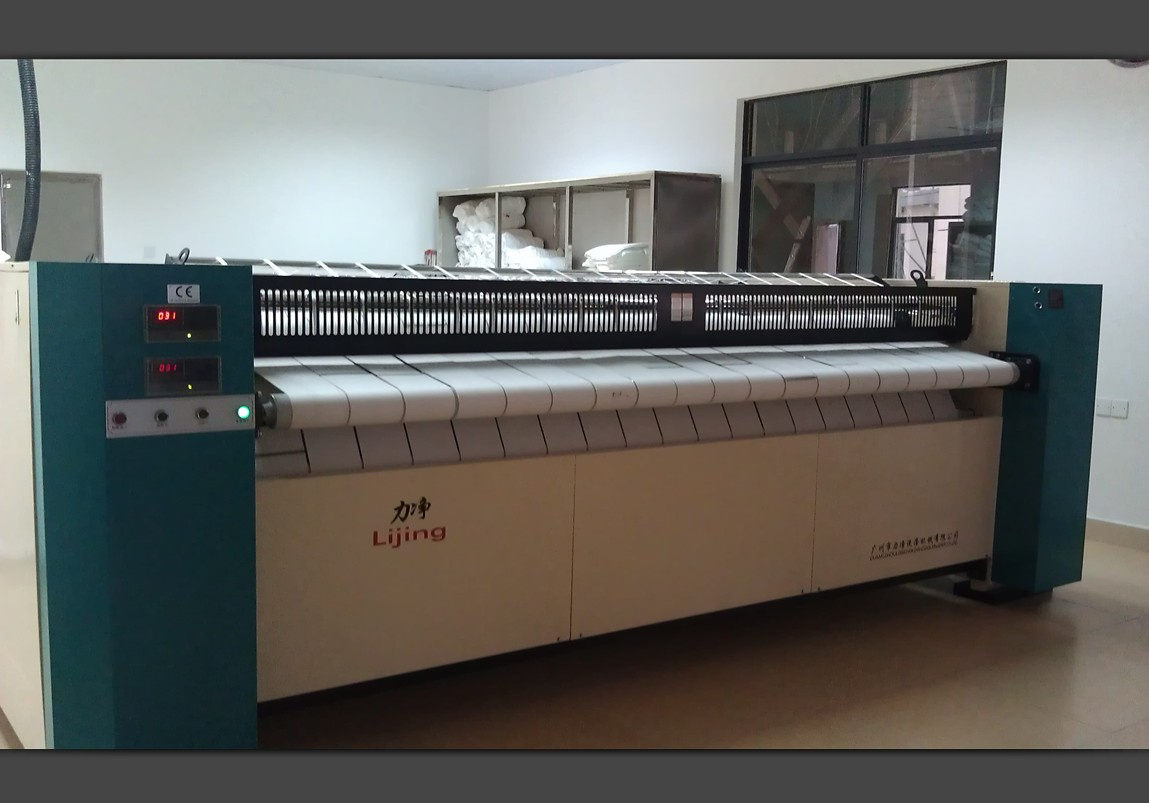

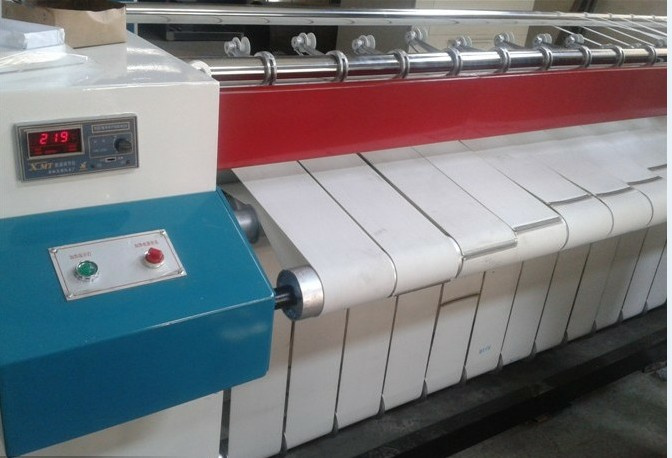

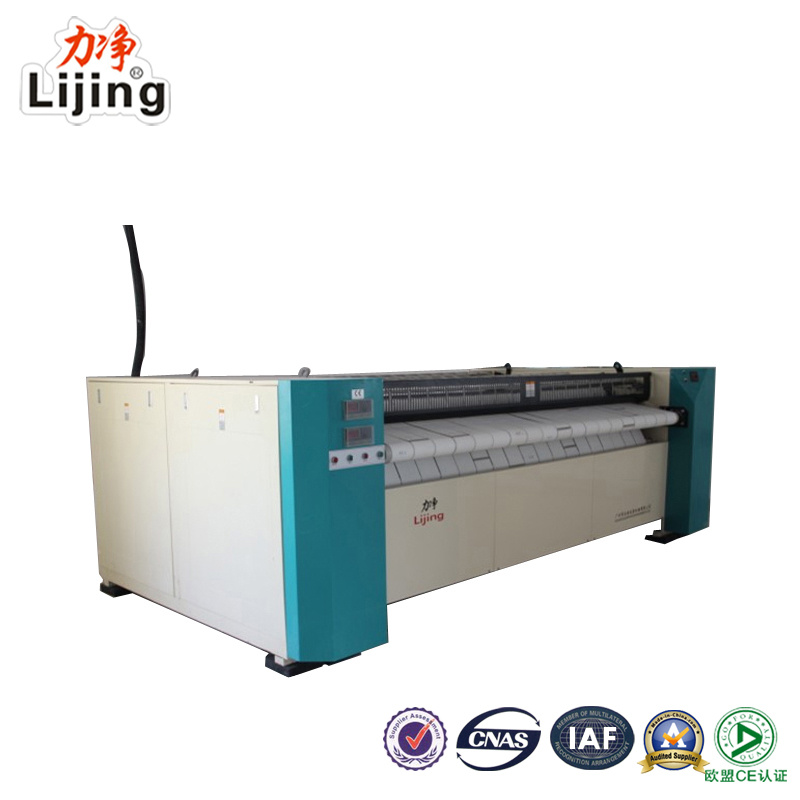

2.5 m Single Roller Electric Table Cloth Curtain Sheets Ironing Machine Model :YPD-8025-1Machines details introduction1. Our laundry ironing machine, its Large diameter roller drum made with superior quality stainless steel, the surface is treated with grinding, milling, so that the wear and tear of the fabrics is reduced to the minimum.
2. The casing and the auxiliary are welded with superior quality carbon structures, strong and durable.
3. The main roller and the auxiliary roller and of differential designs so as to effectively enhance the planeness and evenness of the ironed fabrics.
4. The main roller is of direct-heating mode, which makes the effective heating area exceed75%and increases the energy utilization.
5. Using variable frequency in speed adjustment to achieve flexibility, smoothness and low noise level in speed adjusting
6.Heating methos: steam ,electric, LPG, natural gas .
Our advantage1.We are a professional manufacturer, provide complete set laundry equipments.
2.Our main products have industrial washing machine, dryer , flatwork ironer, steam press ironer, ironing table , dry cleaning machine etc.
3. Our company have much successful laundry projects experiences , can help do the laundry designing layout according customer's details requirments .
4.We supply the high quality machines,with competitive price
5.Rapid response of after-sales service
6. Some models of the machines have wearing parts, we will add extra one for free when we delivery.
7.One year warranty
Scope of the machine
Our laundry ironing machine widely used in: Hotels,Hospitals,Holiday village,Schools,Dry cleaning shops, Governments etc
Guangzhou Lijing Washing Equipment Co., Ltd
Elisa Au
Fax: 86-20-346 330 62
Mobile: 086-139 241 827 77
Web: www. gdlijing. cnAdd: No. 13, Feie Industrial Zone, Zhongcun Town, Panyu District, Guangzhou, China
If you interesting in our machines, please feel free to contact me.
Warmly welcome you come and visit our factory ,to see the high quality machines.
| Model(Steam heating) | YP8022 | YP8025 | YP8028 | YP28022 | YP28025 | YP28028 | YP28030 | YP38030 |
| Max lron Smooth Width(mm) | 2200 | 2500 | 2800 | 2200 | 2500 | 2800 | 3000 | 3000 |
| Roller quantity | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 3 |
| Iron Smooth Speed(m/min) | 0-6 | 0-6 | 0-6 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 |
| Steam Consumption(kg) | 60-70 | 70-80 | 70-90 | 100-120 | 90-110 | 100-120 | 100-120 | 140-160 |
| Max Steam Pressure(mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Motor Power(kw) | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 3 | 3 |
| MaxIron-smooth Temperature(°c) | 158 | 158 | 158 | 158 | 158 | 158 | 158 | 158 |
| Dimension(mm) | 3550×1500×1350 | 3750×1500×1350 | 4050×1500×1350 | 3550×2150×1500 | 3750×2100×1500 | 4050×2100×1350 | 4250×2100×1350 | 4250×3200×1350 |
| Total Weight(kg) | 2500 | 2800 | 3100 | 3500 | 3800 | 4000 | 4200 | 5800 |
|
| Model: (Electric heating) | YPD8025 | YPD8028 | YPD8030 | YPD28025 | YPD28028 | YPD28030 |
|
|
| Max lron Smooth Width | 2500 | 2800 | 3000 | 2500 | 2800 | 3000 |
|
|
| Roller quantity | 1 | 1 | 1 | 2 | 2 | 2 |
|
|
| Iron Smooth Speed | 0-6 | 0-6 | 0-6 | 0-22 | 0-22 | 0-22 |
|
|
| Electric Heating Power(kw) | 30 | 32.4 | 35 | 44 | 46 | 48 |
|
|
| Rated Voltage(v) | 380 | 380 | 380 | 380 | 380 | 380 |
|
|
| Motor Power | 1.1 | 1.1 | 1.1 | 1.8 | 1.8 | 1.8 |
|
|
| MaxIron-smooth Temperature | 200 | 200 | 200 | 200 | 200 | 200 |
|
|
| Dimension | 3500×1400×1300 | 4000×1400×1300 | 4500×1400×1300 | 3750×2100×1350 | 4050×2100×1350 | 4250×2100×1350 |
|
|
| Total Weight | 1800 | 2000 | 2200 | 3300 | 3500 | 3700 |
|
|
Guangzhou Lijing Washing Equipment Co., Ltd. is an excellent manufacturer of washing equipments, by depending on its 30-year accumulated experience of being professionally engaged in design, R & D, production and sale of the washing equipment so as to further expand the market and provide products of better quality and more convenient services to its clients all over the world.
Our mainly producs entrie suspension type washing machines, washer extractor, tumble dryer, vertical industrial washing machine, laundry machine, laundry equipment, laundry dry cleaning, commercial washer, dry cleaning, industrial washer, spotting table, packing machine, hydro extractor and so on. The products are not only popular in 5000 hotels and restaurants, but also in hospital, railways, troops, universities and colleges and some washing &drying industrials, as well as in more than 20 countries.
We have attainted strict ISO9001 quality management system certification. Moreover, we implement WTO international managment pattern. Our industrial washing machine features beautiful and durable performance, diverse product varieties, winning a leading status in the industry no matter in appearance or quality.
