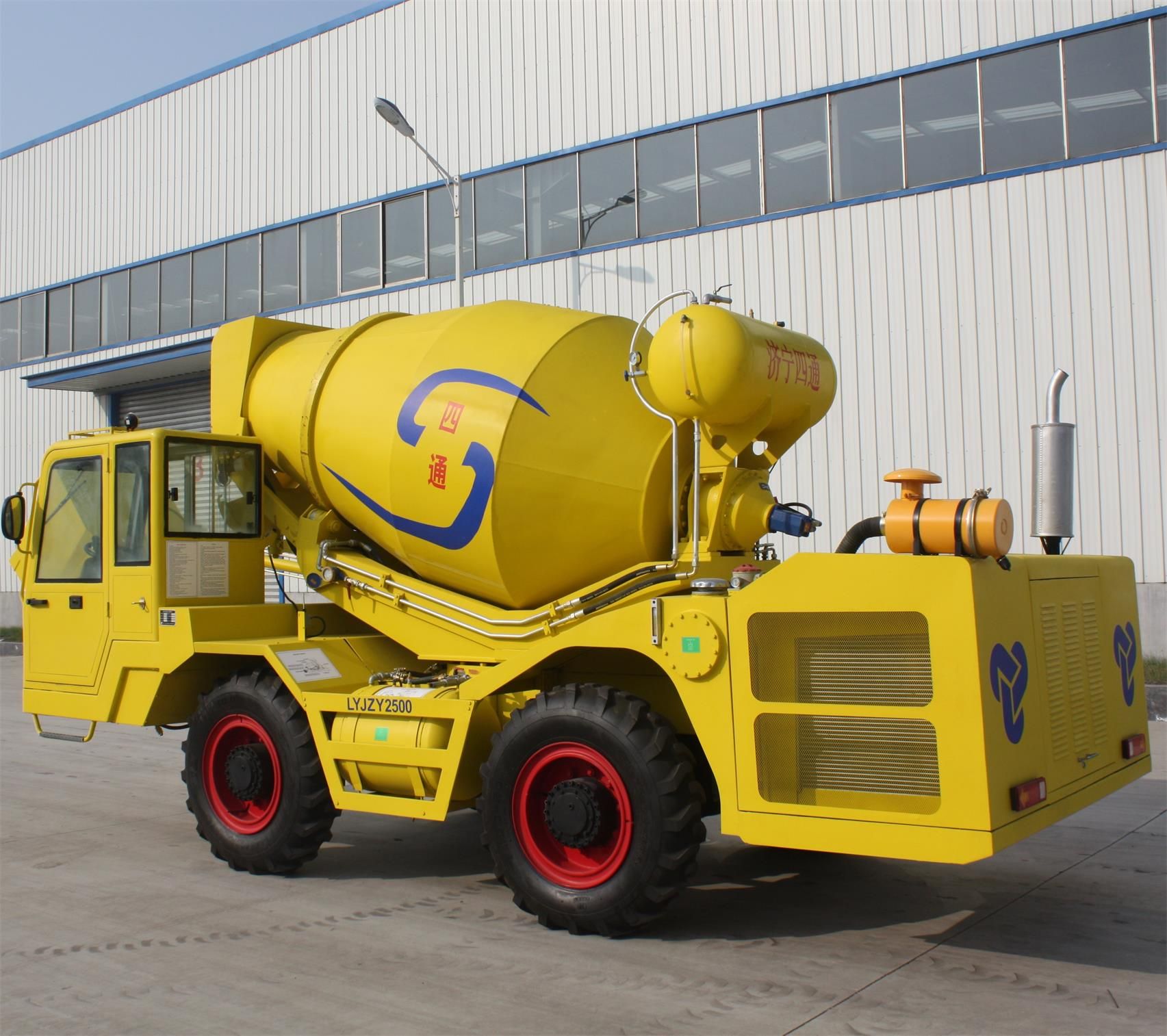

100% Real manufacture
Advantage: Cost-effective, Cummins Engine.
Good after sale service
Fast delivery
Delivery time: 30 days
Porduction capacity: 80 sets/month
Standard: ISO9001-2008
Origin: Shandong China
| Attributes | Unit | Parameters |
| Actual mixing capacity | m 3 | 2.5 |
| Mixing drum capacity | m3 | 3.5 |
| Angle of inclination | 0 | 16 |
| Rotational speed | r/min | 0-14 |
| Rotational direction(Forward observation from rear) | Feedstock:Clockwise Ejection of compact:Anticlockwise |
| Mixing drum vanes | Two sets helical blades and assisted vanes |
| The slump of concrete | mm | 70-260 |
| Hydraulic Transmission System |
| Oil Pump |
| CBF-32 |
| Motor model |
| BMS-100 |
| Reduction box/speed ratio |
| HJ220 |
| Water supply System |
| Water supply |
| The mixer truck brings its own water system |
| Water tank volume | L | 450 |
| Chassis and Engine Parameters |
| Engine Model |
| Perkins 1104D-44TA |
| Form |
| Four stroke water injection water-cooling diesel engine |
| Air cylinder amount |
| 4 |
| Displacement | L | 4.58 |
| Rated power | kw/r/min | 81/2300 |
| Maximum torque | N.m/r/min | 450/1500-1700 |
| Maximum travelling speed | km/h | 24 |
| Minimum diameter of turning circle | M | 8 |
| Gradeability | % | 24 |
| Tyre |
| 9.00-20 |
| Driving form |
| 4*4 |
| Carload equped weight | kg | 6250 |
| Maximum loading weight | Kg | 6500 |
| General weight of the carload | kg | 13000 |
| Carload overall dimension(L/W/H) | mm | 6700x2400x3100 |
Jining Sitong Construction Machinery CO.,LTD, a modern corporate enterprise, established in 2005,registered capital 20,000,000 RMB, professionally producing small truck cranes(3-20ton), concrete mixers(2-8cbm), forklifts, water tankers and sanitary equipments and electric kids play excavators, located in Sitong Industrial Park, Jining City, Shandong Province, covering 260,000 square meters. Now our company owns fixed assets 220,000,000RMB, 283 employees, 62 professional engineers, 10 senior engineers, 23 senior technicians. Acquired ISO:9001-2008 quality management system certification and the State Administration of Quality Supervision truck crane Manufacturing License of Special Equipment People's Republic of China ,rewarded as "National New High-tech Enterprise" by China Government Technology Division and has our own "LUYING" brand.
Jining Sitong Construction Machinery Co., Ltd, a modern corporate enterprise, established in 2003, registered capital 20, 000, 000 RMB, professionally producing small truck cranes, located in Sitong Industrial Park, Jining City, Shandong Province, covering 260, 000 square meters. Now our company owning fixed assets 12, 0000, 000RMB, 182 employees, 6 professional engineers, senior engineers 3 senior technicians. Acquired ISO: 9001 quality management system certification and the State Administration of Quality Supervision truck crane , was firmly belived "Jining City New High-tech Enterprise" by Jining Government Technology Division.
Our company developed STYQ3-16 ton series, small truck crane, complete in specifications, numerous in variety, annual output STYQ 3-16 ton all kinds of specifications and models truck crane 7000 sets, advanced product technology, high performance, rational construction, easy and simple operation, safely used, modelling unique, especially used for construction site, urban and rural road and bridge construction, landscape engineering afforest, electrical equipment installation, medium and small water conservancy construction area. The product posses big horse power, small occupation of land, convenient operation, energy conservation, safe and reliable. To meet the demand of developing construction market, our company has developed and produced mobile and small mixer trucks in 2012. All the products are offered quality assurance by Ping An Insurance Company of China.
Since establishment, we have regarded Quality, Professional and Reliable as the company motto. We have kept good cooperationships with domestic clients and customers from Africa, Europe, South America and Middle East markets.
We sincerely hope to cooperate with clients from all over the world. Please feel free to contact us for more information about our products and services.
